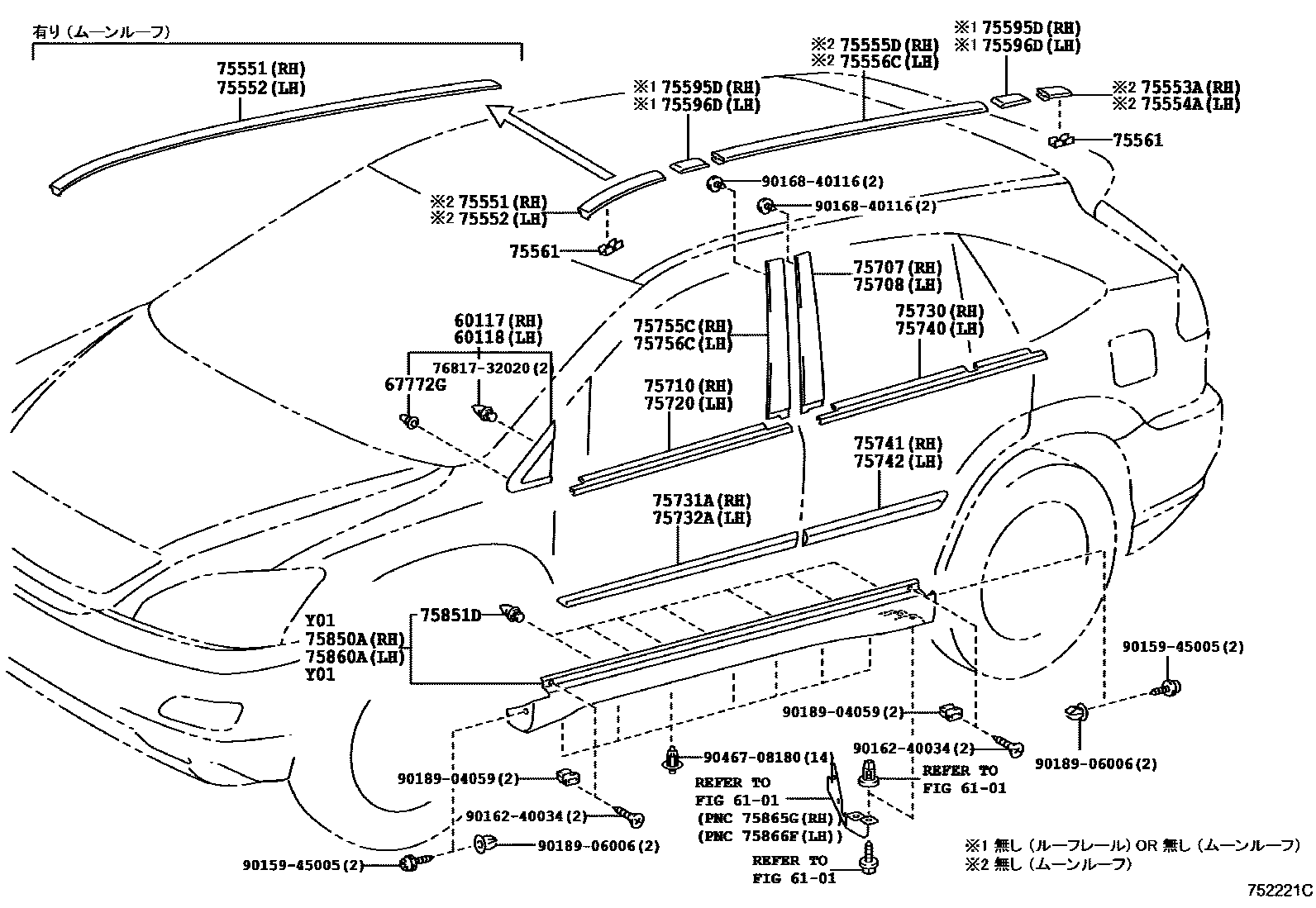

Toyota HARRIER — SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-48010i200601

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-48010i200302-200601

6101SIDE MEMBER

→ Go to FIG 61-01

67772GCAP, FRONT PILLAR COVER

main67772-95J03×2i200302-200601

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-48040supersedes 75551-48030i200302-200308

main75551-48041supersedes 75551-48030i200308-200601

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-48040supersedes 75552-48030i200302-200308

main75552-48041supersedes 75552-48030i200601-200812

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-48030i200601

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-48030i200302-200601

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-48050i200302-200308

main75555-48051i200308-200601

main75555-48052i200612-201204

main75555-48053i201205-201207

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-48050i200302-200308

main75555-48051i200308-200601

main75555-48052i200612-201204

main75555-48053i201205-201207

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020×4i200302-200601

75595DCOVER, ROOF DRIP SIDE MOULDING, FRONT RH

main75595-48010×2i200302-200403

main75595-48011×2i200403-200601

75596DCOVER, ROOF DRIP SIDE MOULDING, FRONT LH

main75596-48010×2i200302-200403

main75596-48011×2i200403-200601

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-48010i200302-200601

main75707-48011i201204-201207

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-48010i200302-200601

main75708-48011i201204-201207

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-48030i200302-200309

main75710-48031i200309-200601

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-48030i200302-200309

main75720-48031i200309-200601

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-48030i200302-200309

main75730-48031i200309-200601

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-48030-A0i200601-200812

WHITE PEARL CS.,062

main75731-48030-A3i200812-201207

WHITE PEARL CS.,070

main75731-48030-B0i200302-200601

SILVER ME.,1C0

main75731-48030-B1i200302-200601

DK.GRAY MC.,1E0

main75731-48030-B2i200701-200812

GRAY ME.,1D2

main75731-48030-B3i200601-201207

SILVER ME.,1F7

main75731-48030-B5i200812-201207

GRAY ME.,1G3

main75731-48030-C0i200601-201207

BLACK,202

main75731-48030-E0i200302-200601

BEIGE ME.,4R4

main75731-48030-E4i200601-201207

BEIGE ME.,4T8

main75731-48030-J0i200601-200812

LT.BLUE ME.,8R6

main75731-48030-J1i200601-200812

DK.BLUE M.M.,8R7

main75731-48030-J2i200302-200601

LT.BLUE M.M.,8R8

main75731-48030-J3i200812-201008

LT.BLUE M.M.,8S7

main75731-48030-J4i201008-201207

DK.BLUE MC.,8S6

main75731-48030-A1i200302-200601

main75731-48030-A2i200604-200701

main75731-48030-D0i200408-200601

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-48030-A0i200302-200601

WHITE PEARL CS.,062

main75732-48030-A3i200812-201207

WHITE PEARL CS.,070

main75732-48030-B0i200302-200601

SILVER ME.,1C0

main75732-48030-B1i200302-200601

DK.GRAY MC.,1E0

main75732-48030-B2i200701-200812

GRAY ME.,1D2

main75732-48030-B3i200601-201207

SILVER ME.,1F7

main75732-48030-B5i200812-201207

GRAY ME.,1G3

main75732-48030-C0i200302-200601

BLACK,202

main75732-48030-E0i200601-200801

BEIGE ME.,4R4

main75732-48030-E4i200601-201207

BEIGE ME.,4T8

main75732-48030-J0i200601-200812

LT.BLUE ME.,8R6

main75732-48030-J1i200601-200812

DK.BLUE M.M.,8R7

main75732-48030-J2i200601-200801

LT.BLUE M.M.,8R8

main75732-48030-J3i200812-201008

LT.BLUE M.M.,8S7

main75732-48030-J4i201008-201207

DK.BLUE MC.,8S6

main75732-48030-A1i200302-200601

main75732-48030-A2i200604-200701

main75732-48030-D0i200401-200407

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-48030i200302-200309

main75740-48031i200309-200601

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-48030-A0i200601-200812

WHITE PEARL CS.,062

main75741-48030-A3i200812-201207

WHITE PEARL CS.,070

main75741-48030-B0i200601-200801

SILVER ME.,1C0

main75741-48030-B1i200302-200601

DK.GRAY MC.,1E0

main75741-48030-B2i200701-200812

GRAY ME.,1D2

main75741-48030-B3i200601-201207

SILVER ME.,1F7

main75741-48030-B5i200812-201207

GRAY ME.,1G3

main75741-48030-C0i200601-201207

BLACK,202

main75741-48030-E0i200302-200601

BEIGE ME.,4R4

main75741-48030-E4i200601-201207

BEIGE ME.,4T8

main75741-48030-J0i200302-200601

LT.BLUE ME.,8R6

main75741-48030-J1i200601-200812

DK.BLUE M.M.,8R7

main75741-48030-J2i200302-200601

LT.BLUE M.M.,8R8

main75741-48030-J3i200812-201008

LT.BLUE M.M.,8S7

main75741-48030-J4i201008-201207

DK.BLUE MC.,8S6

main75741-48030-A1i200302-200601

main75741-48030-A2i200604-200701

main75741-48030-D0i200401-200407

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-48030-A0i200601-200812

WHITE PEARL CS.,062

main75742-48030-A3i200812-201207

WHITE PEARL CS.,070

main75742-48030-B0i200302-200601

SILVER ME.,1C0

main75742-48030-B1i200302-200601

DK.GRAY MC.,1E0

main75742-48030-B2i200701-200812

GRAY ME.,1D2

main75742-48030-B3i200601-201207

SILVER ME.,1F7

main75742-48030-B5i200812-201207

GRAY ME.,1G3

main75742-48030-C0i200601-201207

BLACK,202

main75742-48030-E0i200302-200601

BEIGE ME.,4R4

main75742-48030-E4i200601-201207

BEIGE ME.,4T8

main75742-48030-J0i200601-200812

LT.BLUE ME.,8R6

main75742-48030-J1i200601-200812

DK.BLUE M.M.,8R7

main75742-48030-J2i200601-200801

LT.BLUE M.M.,8R8

main75742-48030-J3i200812-201008

LT.BLUE M.M.,8S7

main75742-48030-J4i201008-201207

DK.BLUE MC.,8S6

main75742-48030-A1i200302-200601

main75742-48030-A2i200604-200701

main75742-48030-D0i200401-200407

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-48010i200302-200601

main75755-48011i201204-201207

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-48010i200302-200601

main75756-48011i201204-201207

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-48010i200302-200601

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main90467-10162×14i200302-200601

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-48010i200302-200601

7681732020CLIP, BACK DOOR OUTSIDE GARNISH

main76817-32020

9015945005

main90159-45005

9016240034

main90162-40034

9016840116

main90168-40116

9018904059

main90189-04059

9018906006

main90189-06006

9046708180

main90467-08180

35 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota HARRIER

This section contains 35 genuine Toyota parts for the SIDE MOULDING system of the Toyota HARRIER. Key components include: COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH, SIDE MEMBER, CAP, FRONT PILLAR COVER, MOULDING, ROOF DRIP SIDE FINISH, RH.
