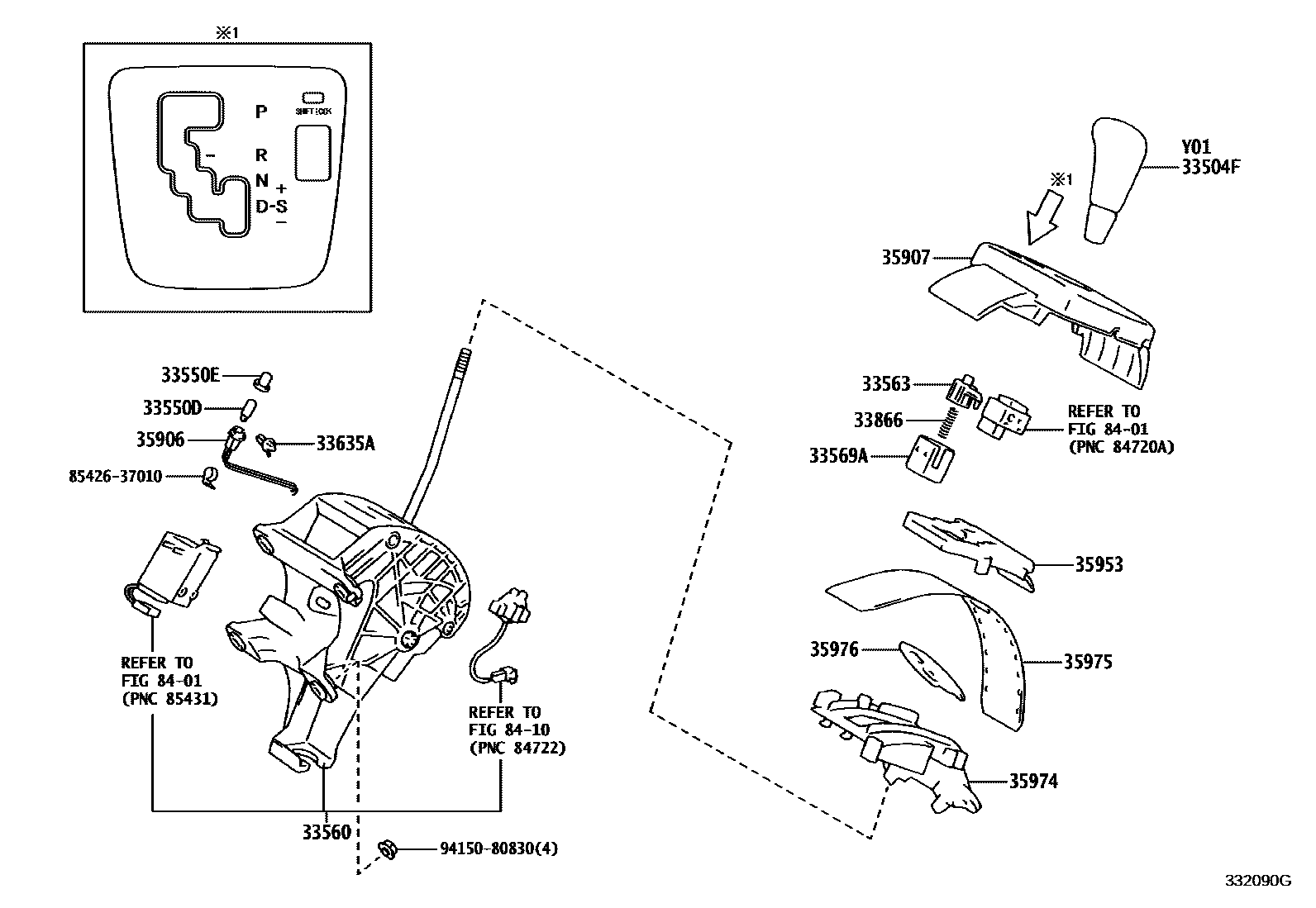

Toyota HARRIER — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-48030-C0supersedes 33504-48010-C0i200302-200601

main33504-48030-E0supersedes 33504-48010-E0i200302-200601

main33504-48010-C0i200812-200907

main33504-48040-C0i200609-200703

33550DBULB, POSITION INDICATOR LAMP

main90981-11014i200601-201207

33550ECAP, POSITION INDICATOR LAMP

main90339-04055i200601-201207

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-48110i200302-200601

33563BUTTON, SHIFT LOCK RELEASE

main33563-48050i200302-200601

33569AGUIDE, SHIFT LOCK RELEASE BUTTON

main33569-48010i200302-200601

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-48030i200601

33866SPRING, SHIFT LOCK RELEASE

main33866-48010i200601-200812

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-48020i200302-200601

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-48010i200601

35953GUIDE, POSITION INDICATOR LIGHT

main35953-48010i200601

35974HOUSING, POSITION INDICATOR, LOWER

main35974-48040i200601

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-48040i200302-200601

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-48020i200302-200601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

8542637010CLAMP, OVER DRIVE SOLENOID

main85426-37010

9415080830

main94150-80830

18 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota HARRIER

This section contains 27 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota HARRIER. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL, BUTTON, SHIFT LOCK RELEASE.
