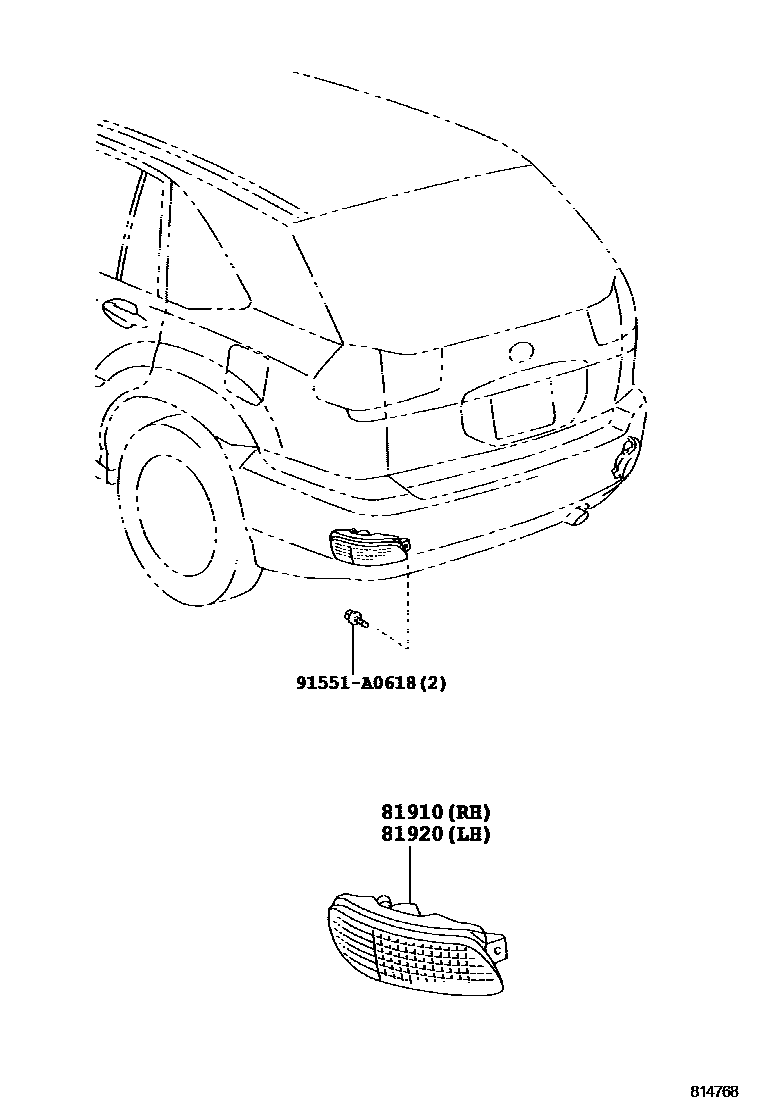

Toyota HARRIER — REFLEX REFLECTOR

81910REFLECTOR ASSY, REFLEX, RH

main81910-48030supersedes 81910-48020i200302-200601

main81910-48031supersedes 81910-48020i200611

81920REFLECTOR ASSY, REFLEX, LH

main81920-48030supersedes 81920-48020i200302-200601

main81920-48031supersedes 81920-48020i200611

91551A0618

main91551-A0618

3 parts on this diagram · 2 diagrams in section

REFLEX REFLECTOR for Toyota HARRIER

This section contains 8 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota HARRIER. Key components include: REFLECTOR ASSY, REFLEX, RH, BULB, REFLEX REFLECTOR, SOCKET PLUG, REFLEX REFLECTOR,RH, LENS, REFLEX REFLECTOR, REAR RH, REFLECTOR ASSY, REFLEX, LH.
