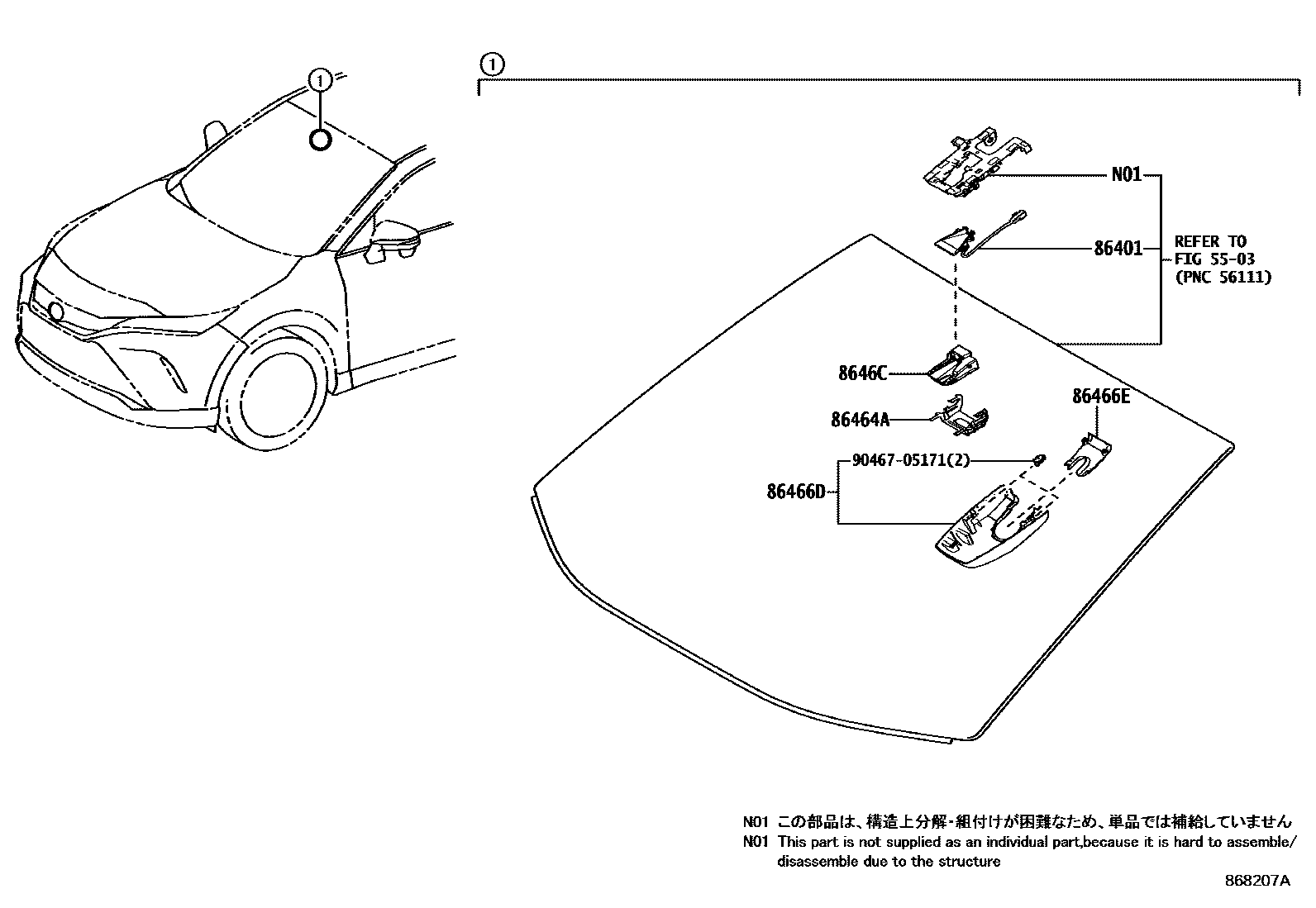

Toyota HARRIER — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-42041iAXUH8#,MXUA8#202006-202210

86464ALATCH, FORWARD RECOGNITION

main86464-26010iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-48170supersedes 86466-42060iAXUH8#,AXUP85,MXUA8#..G,Z202210

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42130supersedes 86466-42070iAXUH8#,AXUP85,MXUA8#..G,Z202210

8646CCAMERA, FORWARD RECOGNITION

main8646C-48060iAXUH8#,MXUA8#202006-202112

main8646C-48061iAXUH8#,MXUA8#202112-202210

main8646C-48130iAXUH8#,MXUA85..S202210-202309

main8646C-48140iAXUP85202210

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
