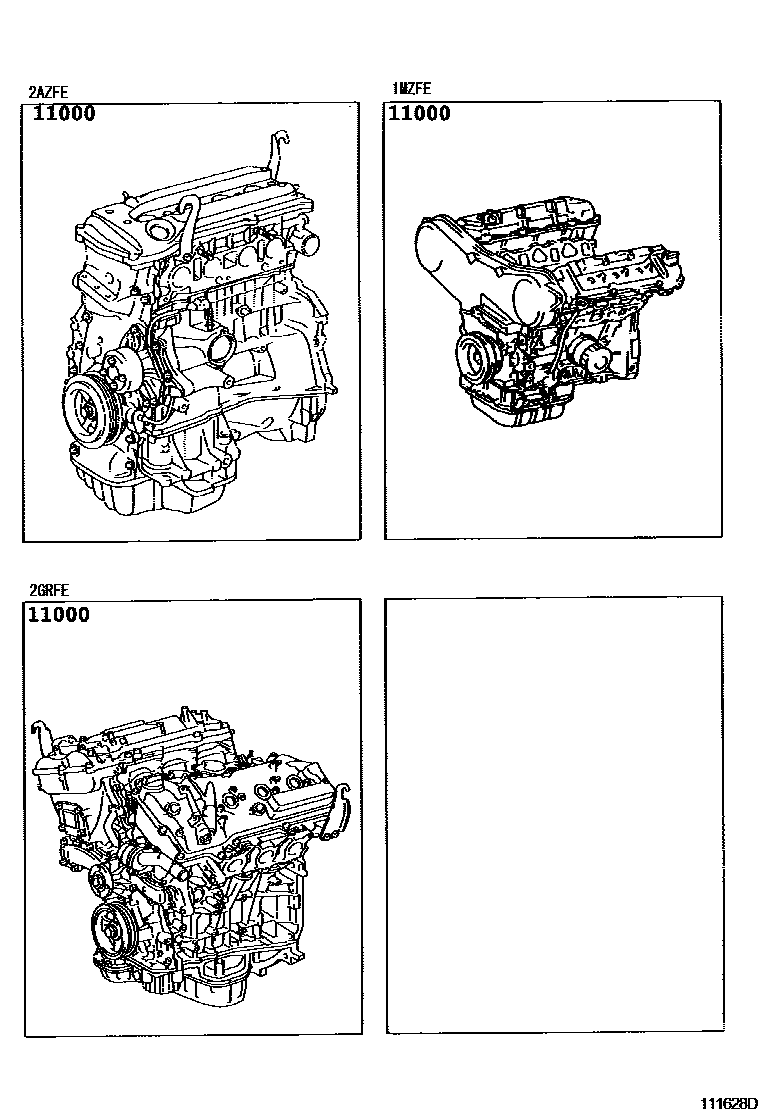

Toyota HARRIER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-20400i1MZFE..MCU30,31200302-200601

main19000-20410i1MZFE..MCU35,36200302-200312

main19000-20800i1MZFE..MCU35,36200312-200401

main19000-28120i2AZFE..ACU3#200302-200601

main19000-28453i2AZFE..ACU3#200608-201008

sub90919-01184

main19000-28454i2AZFE..ACU3#201008

main19000-31D10i2GRFE..GSU3#200601-200812

sub19000-31A00

1 parts on this diagram · 1 diagram in section
