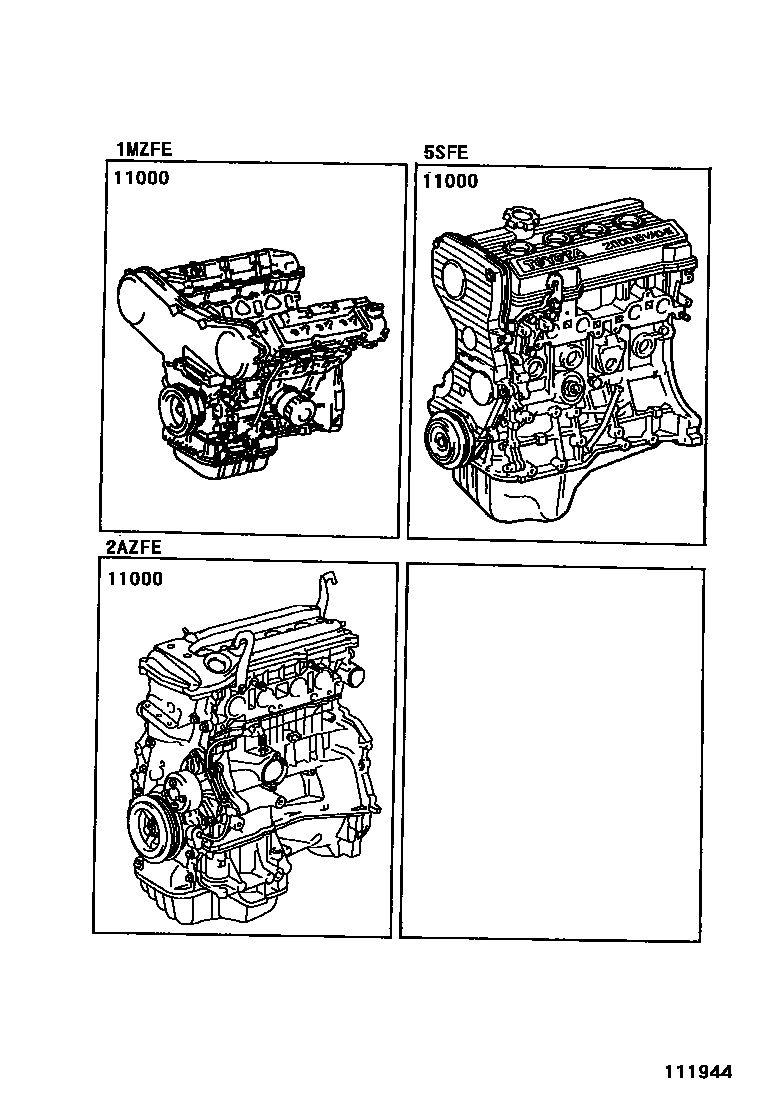

Toyota HARRIER — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-20130i199712-199903

main19000-20131i199903-199908

main19000-20150i199801-199903

main19000-20151i199903-199908

main19000-20200i199908

main19000-20220i199908

main19000-28120i200011

main19000-7A121i199712-200011

main19000-7A440i199712-200011

1 parts on this diagram · 1 diagram in section
