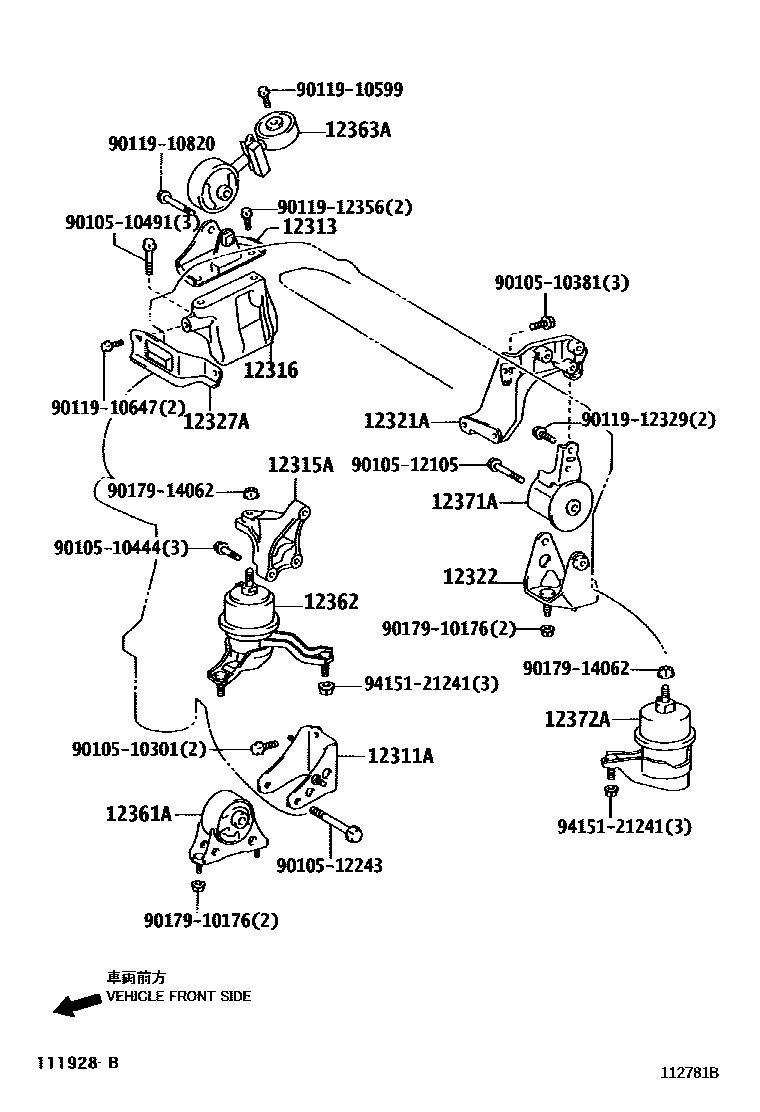

Toyota HARRIER — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12322BRACKET, ENGINE MOUNTING, REAR NO.2
12327ASTAY, ENGINE MOUNTING, NO.2 RH
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010510381
main90105-10381
9010510444
main90105-10444
9010510491
main90105-10491
9010512105
main90105-12105
9010512243
main90105-12243
9011910599
main90119-10599
9011910647
main90119-10647
9011910820
main90119-10820
9011912329
main90119-12329
9011912356
main90119-12356
9017910176
main90179-10176
9017914062
main90179-14062
9415121241
main94151-21241
27 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota HARRIER
This section contains 61 genuine Toyota parts for the MOUNTING system of the Toyota HARRIER. Key components include: ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE).
