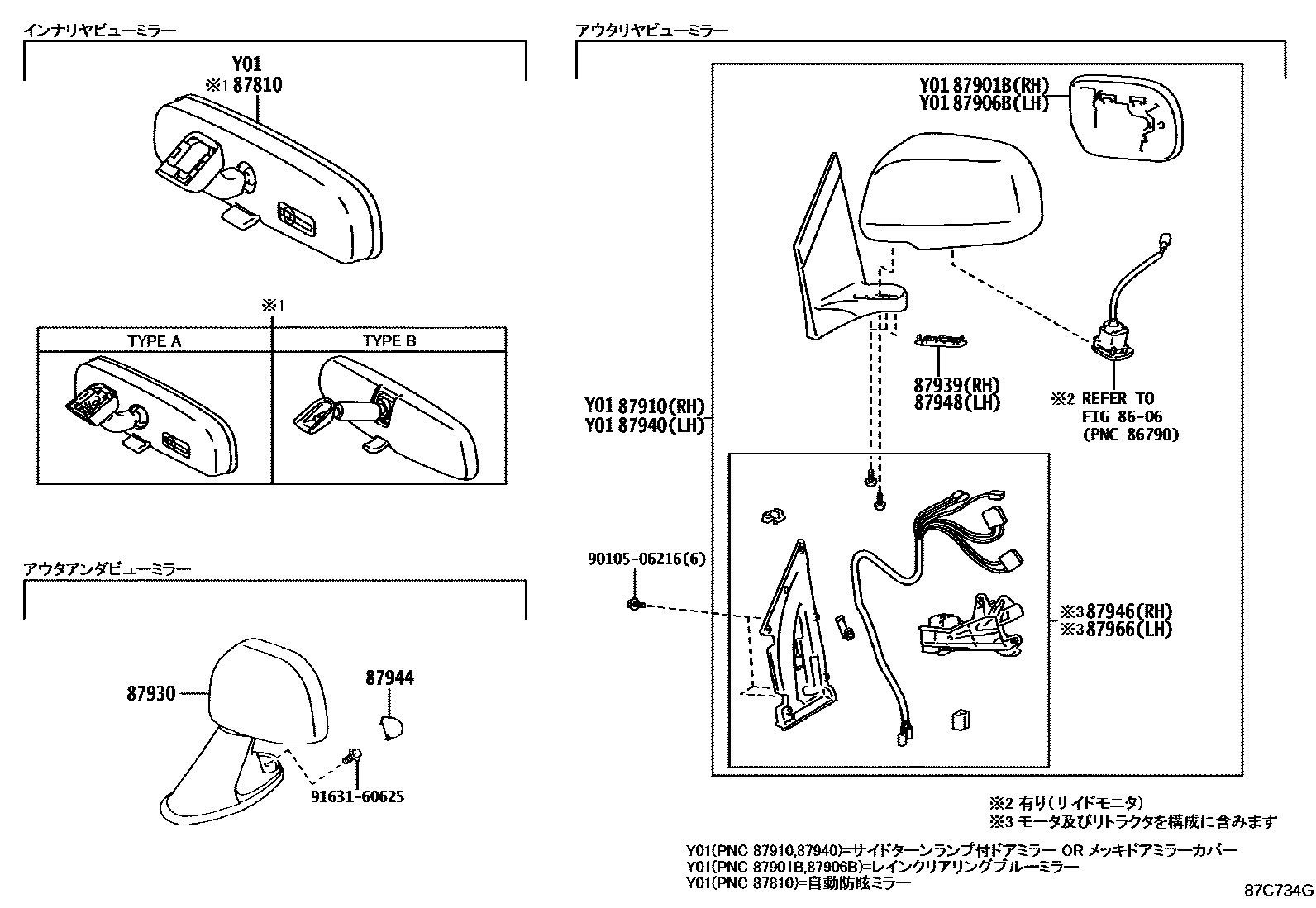

Toyota HARRIER — MIRROR
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,062
WHITE PEARL CS.,070
SILVER ME.,1C0
DK.GRAY MC.,1E0
GRAY ME.,1D2
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BEIGE ME.,4R4
BEIGE ME.,4T8
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
LT.BLUE M.M.,8R8
LT.BLUE M.M.,8S7
DK.BLUE MC.,8S6
87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
LT.BLUE M.M.,8R8
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,062
WHITE PEARL CS.,070
SILVER ME.,1C0
DK.GRAY MC.,1E0
GRAY ME.,1D2
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BEIGE ME.,4R4
BEIGE ME.,4T8
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
LT.BLUE M.M.,8R8
LT.BLUE M.M.,8S7
DK.BLUE MC.,8S6
87944COVER, FRONT FENDER SIDE VIEW DEVICE, LH
WHITE PEARL CS.,062
WHITE PEARL CS.,070
SILVER ME.,1C0
DK.GRAY MC.,1E0
GRAY ME.,1D2
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BEIGE ME.,4R4
BEIGE ME.,4T8
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
LT.BLUE M.M.,8R8
LT.BLUE M.M.,8S7
DK.BLUE MC.,8S6
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
87966RETRACTOR, OUTER MIRROR, LH
9010506216
main90105-06216
9163160625
main91631-60625
14 parts on this diagram · 1 diagram in section
MIRROR for Toyota HARRIER
This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota HARRIER. Key components include: CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
