Toyota HARRIER — MIRROR

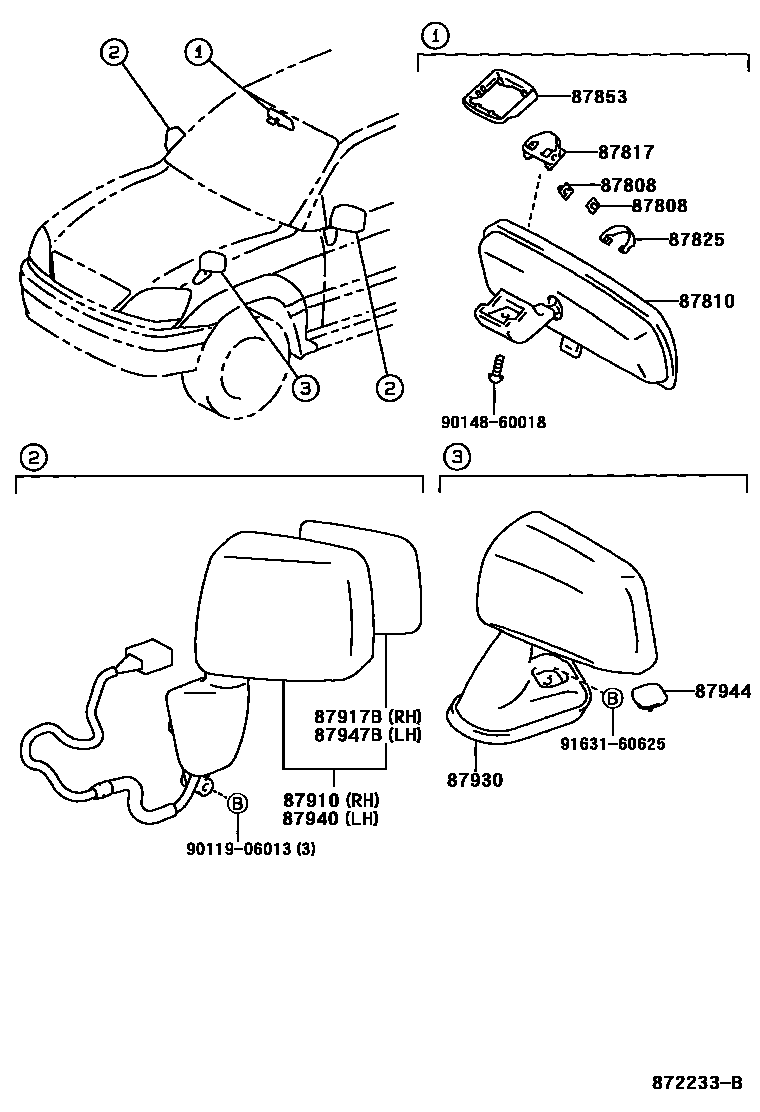

Parts diagram

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010i199712

87810MIRROR ASSY, INNER REAR VIEW

main87810-24040-A0i199712

IVORY,TRIM0#

main87810-24040-B1i199712-199901

MD.GRAY,TRIM1#

main87810-24040-B2i199901-200011

BLUE GRAY,TRIM1#

main87810-24040-B3i200011

LT.GRAY,TRIM2#

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010i199712

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010i199712

87853BASE, INNER REAR VIEW MIRROR

main87853-24020i199712

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-48010-A0i199712-200011

WHITE PM.,057

main87910-48010-A1i199904

main87910-48010-A2i199910-200011

SUPER WHITE 2,040

main87910-48010-B0i199712-200011

SILVER ME.,1C0

main87910-48010-B1i199904

main87910-48010-B2i199910-200011

DK.GRAY M.M,1C6

main87910-48010-C0i199712-200011

BLACK,202

main87910-48010-D0i199712-200011

RED MC.,3M8

main87910-48010-E0i199712-200011

BEIGE SF.,4P2

main87910-48010-G0i199712-200011

GREEN MC.,6R1

main87910-48010-J0i199712-200011

DK.BLUE MC.,8L4

main87910-48020-A0i199712-200011

main87910-48020-A1i199904

main87910-48020-A2i199910-200011

main87910-48020-B0i199712-200011

main87910-48020-B1i199904

main87910-48020-B2i199910-200011

main87910-48020-C0i199712-200011

main87910-48020-D0i199712-200011

main87910-48020-E0i199712-200011

main87910-48020-G0i199712-200011

main87910-48020-J0i199712-200011

main87910-48050-A0i200011-200302

WHITE PEARL CS.,065

main87910-48050-A1i200201-200206

main87910-48050-A1i200011-200112

main87910-48050-A2i200108-200302

main87910-48050-B0i200011-200302

SILVER ME.,1C0

main87910-48050-B1i200011-200302

DK.GRAY M.M.,1C6

main87910-48050-C0i200011-200302

BLACK,202

main87910-48050-E0i200011-200302

BEIGE SF.,4P2

main87910-48050-J0i200011-200302

DK.BLUE M.M.,8P4

main87910-48050-J1i200011-200302

GRAYISH BLUE ME.,8P6

main87910-48060-A0i200011-200302

main87910-48060-A1i200011-200206

main87910-48060-A2i200108-200302

main87910-48060-B0i200011-200302

main87910-48060-B1i200011-200302

main87910-48060-C0i200011-200302

main87910-48060-E0i200011-200302

main87910-48060-J0i200011-200302

main87910-48060-J1i200011-200302

87917BMIRROR, OUTER REAR VIEW, RH

main87931-48010i199712-200011

main87931-48020i199712-200011

main87931-48050i200011

main87931-48060i200011

87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH

main87930-48010-A0i199712-200011

WHITE PM.,057

main87930-48010-A1i199904

main87930-48010-A2i200011-200302

WHITE PEARL CS.,065

main87930-48010-A3i200108-200302

main87930-48010-A4i200201-200206

main87930-48010-B0i199712-200302

SILVER ME.,1C0

main87930-48010-B1i199904

main87930-48010-B2i200011-200302

DK.GRAY M.M.,1C6

main87930-48010-B2i199910-200011

DK.GRAY M.M,1C6

main87930-48010-C0i199712-200302

BLACK,202

main87930-48010-D0i199712-200011

RED MC.,3M8

main87930-48010-E0i199712-200302

BEIGE SF.,4P2

main87930-48010-G0i199712-200011

GREEN MC.,6R1

main87930-48010-J0i199712-200011

DK.BLUE MC.,8L4

main87930-48010-J1i200011-200302

DK.BLUE M.M.,8P4

main87930-48010-J2i200011-200302

GRAYISH BLUE ME.,8P6

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-48010-A0i199712-200011

WHITE PM.,057

main87940-48010-A1i199904

main87940-48010-A2i199910-200011

SUPER WHITE 2,040

main87940-48010-B0i199712-200011

SILVER ME.,1C0

main87940-48010-B1i199904

main87940-48010-B2i199910-200011

DK.GRAY M.M,1C6

main87940-48010-C0i199712-200011

BLACK,202

main87940-48010-D0i199712-200011

RED MC.,3M8

main87940-48010-E0i199712-200011

BEIGE SF.,4P2

main87940-48010-G0i199712-200011

GREEN MC.,6R1

main87940-48010-J0i199712-200011

DK.BLUE MC.,8L4

main87940-48020-A0i199712-200011

main87940-48020-A1i199904

main87940-48020-A2i199910-200011

main87940-48020-B0i199712-200011

main87940-48020-B1i199904

main87940-48020-B2i199910-200011

main87940-48020-C0i199712-200011

main87940-48020-D0i199712-200011

main87940-48020-E0i199712-200011

main87940-48020-G0i199712-200011

main87940-48020-J0i199712-200011

main87940-48050-A0i200011-200302

WHITE PEARL CS.,065

main87940-48050-A1i200201-200206

main87940-48050-A1i200011-200112

main87940-48050-A2i200108-200302

main87940-48050-B0i200011-200302

SILVER ME.,1C0

main87940-48050-B1i200011-200302

DK.GRAY M.M.,1C6

main87940-48050-C0i200011-200302

BLACK,202

main87940-48050-E0i200011-200302

BEIGE SF.,4P2

main87940-48050-J0i200011-200302

DK.BLUE M.M.,8P4

main87940-48050-J1i200011-200302

GRAYISH BLUE ME.,8P6

main87940-48060-A0i200011-200302

main87940-48060-A1i200011-200206

main87940-48060-A2i200108-200302

main87940-48060-B0i200011-200302

main87940-48060-B1i200011-200302

main87940-48060-C0i200011-200302

main87940-48060-E0i200011-200302

main87940-48060-J0i200011-200302

main87940-48060-J1i200011-200302

87944COVER, FRONT FENDER SIDE VIEW DEVICE, LH

main87944-48010-A0i199712-200011

WHITE PM.,057

main87944-48010-A1i199904

main87944-48010-A2i200011

WHITE PEARL CS.,065

main87944-48010-A3i200108-200302

main87944-48010-A4i200201-200206

main87944-48010-B0i199712

SILVER ME.,1C0

main87944-48010-B1i199904

main87944-48010-B2i200011

DK.GRAY M.M.,1C6

main87944-48010-C0i199712

BLACK,202

main87944-48010-D0i199712-200011

RED MC.,3M8

main87944-48010-E0i199712

BEIGE SF.,4P2

main87944-48010-G0i199712-200011

GREEN MC.,6R1

main87944-48010-J0i199712-200011

DK.BLUE MC.,8L4

main87944-48010-J1i200011

DK.BLUE M.M.,8P4

main87944-48010-J2i200011

GRAYISH BLUE ME.,8P6

87947BMIRROR, OUTER REAR VIEW, LH

main87961-48010i199712-200011

main87961-48020i199712-200011

main87961-48050i200011

main87961-48060i200011

9011906013

main90119-06013

9014860018

main90148-60018

9163160625

main91631-60625

14 parts on this diagram · 1 diagram in section

MIRROR for Toyota HARRIER

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota HARRIER. Key components include: HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING, BASE, INNER REAR VIEW MIRROR.
