Toyota HARRIER — METER

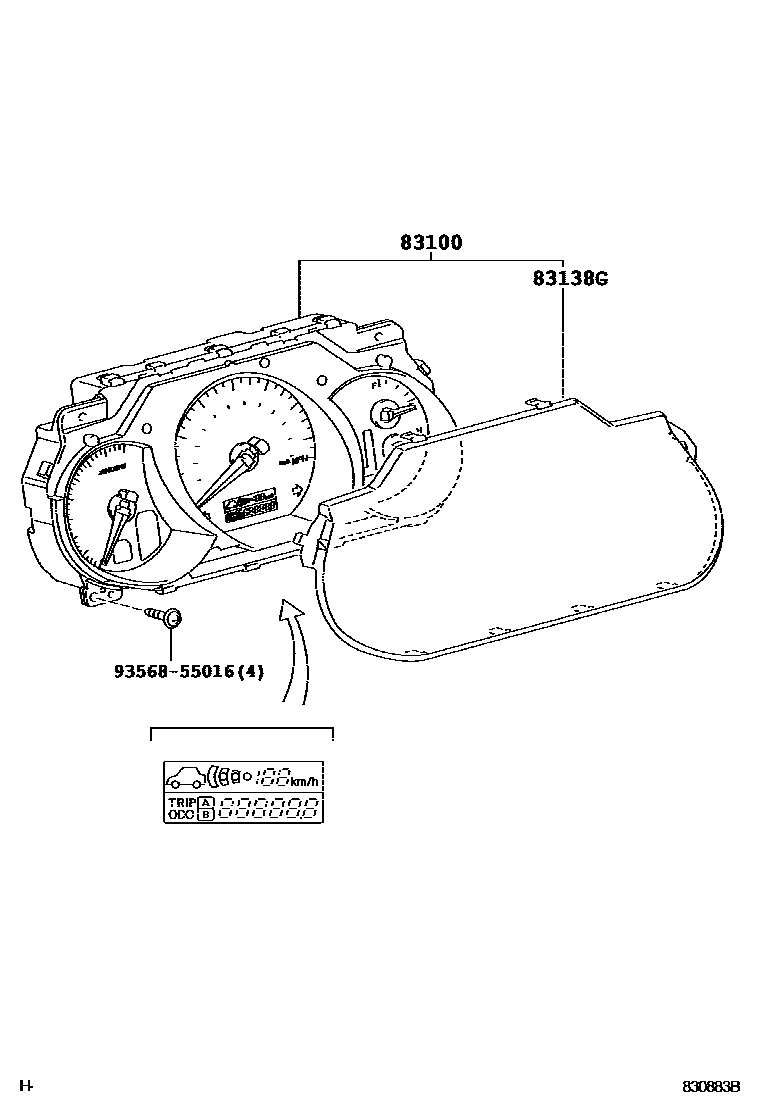

Parts diagram
83100METER ASSY, COMBINATION
main83800-48210i200302-200408
main83800-48211i200408-200601
main83800-48212i200601-200701
main83800-48213i200701-200812
main83800-48214i200812
main83800-48220i200302-200408
main83800-48221i200408-200601
main83800-48240supersedes 83800-48230i200302-200408
main83800-48241supersedes 83800-48231i200408-200601
main83800-48690supersedes 83800-48680i200601-200701
main83800-48691supersedes 83800-48681i200701-200707
main83800-48692supersedes 83800-48682i200708-200812
main83800-48710supersedes 83800-48700i200601-200701
main83800-48711supersedes 83800-48701i200701-200707
main83800-48712supersedes 83800-48702i200708-200812
83138GGLASS, COMBINATION METER
main83852-48130i200302-200601
9356855016
main93568-55016

3 parts on this diagram · 1 diagram in section
