Toyota HARRIER — METER

0001 1��������� 0002 1����� & ����

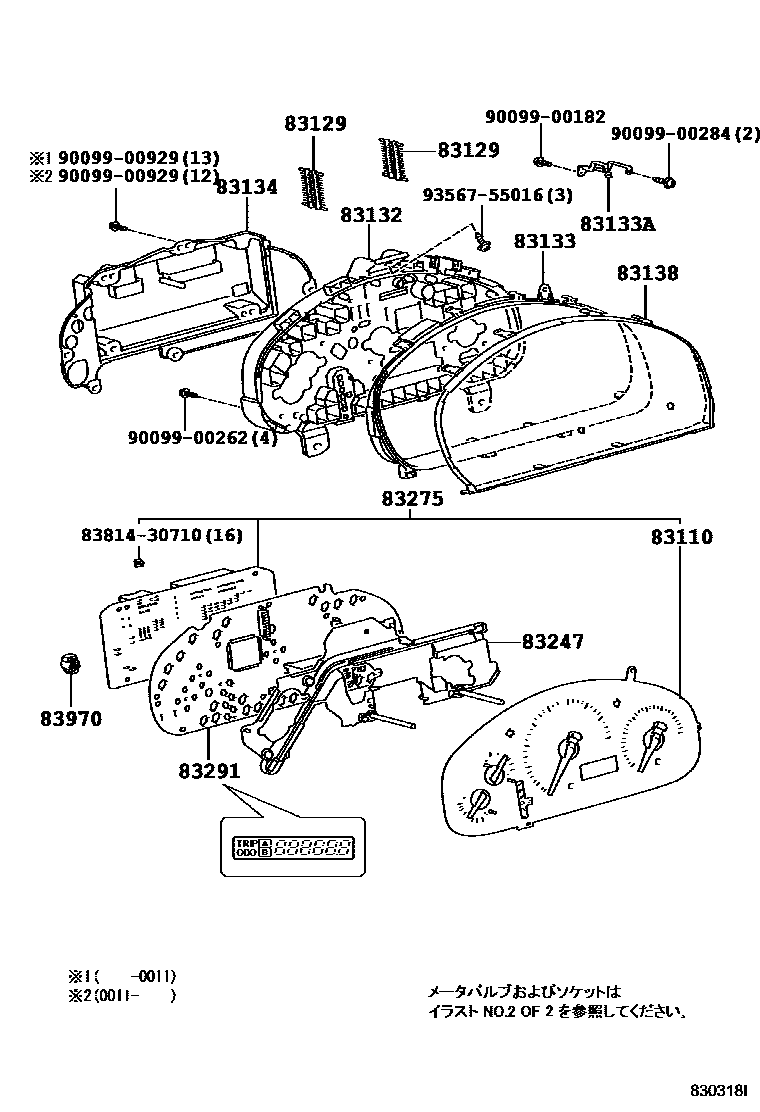

83110SPEEDOMETER ASSY

main83220-48010iMCU1#,SXU1#199712-200011

main83220-48011iACU1#,MCU1#200011

main83220-48040iACU1#,MCU1#200011

83129WIRE, METER

main83875-48010×2iACU1#,MCU1#,SXU1#199712

83132CASE, COMBINATION METER

main83841-48010iACU1#,MCU1#200011

main83841-48020iACU1#,MCU1#200011

83133PLATE, COMBINATION METER, NO.1

main83811-48010iACU1#,MCU1#,SXU1#199712

83133APLATE, COMBINATION METER, NO.2

main83812-48010iACU1#,MCU1#,SXU1#199712

83134COVER, COMBINATION METER, NO.1

main83821-48010iMCU1#,SXU1#199712-200011

main83821-48040iACU1#,MCU1#200011

83138GLASS, SPEEDOMETER

main83852-48010iACU1#,MCU1#,SXU1#199712

83247PLATE, METER CIRCUIT

main83864-48010iMCU1#,SXU1#199712-200011

main83864-48011iACU1#,MCU1#200011

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83275-48010iMCU1#,SXU1#199712-199911

main83801-48010iMCU1#,SXU1#199911-200011

main83801-48011iACU1#,MCU1#200011

main83801-48040iACU1#,MCU1#200011

83291COMPUTER, COMBINATION METER

main83291-48010iMCU1#,SXU1#199712-200011

main83291-48011iACU1#,MCU1#200011-200302

main83291-48040iACU1#,MCU1#200011-200302

83970BUZZER ASSY, REVERSE WARNING

main83248-20010iACU1#,MCU1#,SXU1#199712

8381430710

main83814-30710

9009900182

main90099-00182

9009900262

main90099-00262

9009900284

main90099-00284

9009900929

main90099-00929

9356755016

main93567-55016

17 parts on this diagram · 2 diagrams in section
