Toyota HARRIER — MAT & CARPET

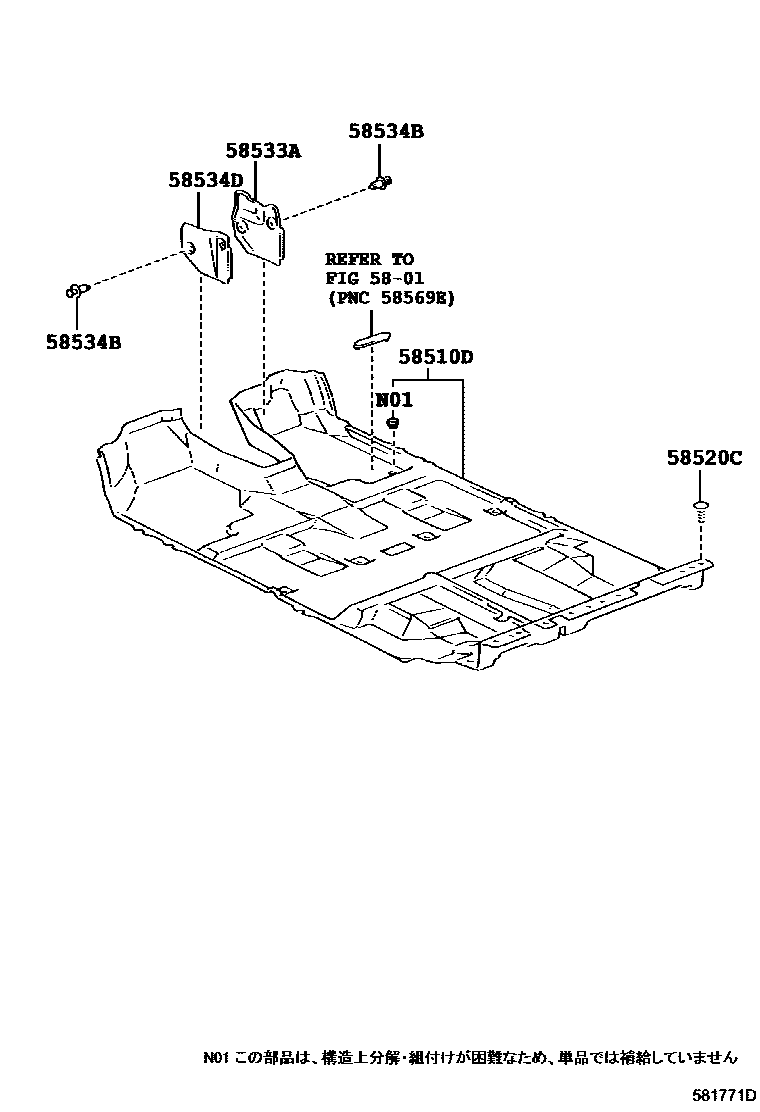

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58510DCARPET ASSY, FLOOR, FRONT

main58510-48080-A0i200302-200601

IVORY,TRIM0#

main58510-48080-B0i200302-200601

LT.GRAY,TRIM1#

main58510-48080-C0i200302-200601

BLACK,TRIM2#

main58510-48081-A0i200601-201207

IVORY,TRIM0#

main58510-48081-B0i200601-200812

LT.GRAY,TRIM1#

main58510-48081-C0i200601-201207

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0×3i200302-200601

BLACK,TRIM0#,1#,2#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-48050-A0i200302-200601

IVORY,TRIM0#

main58533-48050-B0i200601-200812

LT.GRAY,TRIM1#

main58533-48050-C0i200302-200601

BLACK,TRIM2#

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-06020-C0×4i200606-201207

BLACK

main90467-07150×4i200302-200601

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-48040-A0i200302-200601

IVORY,TRIM0#

main58534-48040-B2i200601-200812

LT.GRAY,TRIM1#

main58534-48040-C0i200302-200601

BLACK,TRIM2#

6 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota HARRIER

This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota HARRIER. Key components include: FLOOR PAN & LOWER BACK PANEL, CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), COVER, FLOOR CARPET, CENTER RH, CLIP(FOR FLOOR CARPET CENTER COVER).
