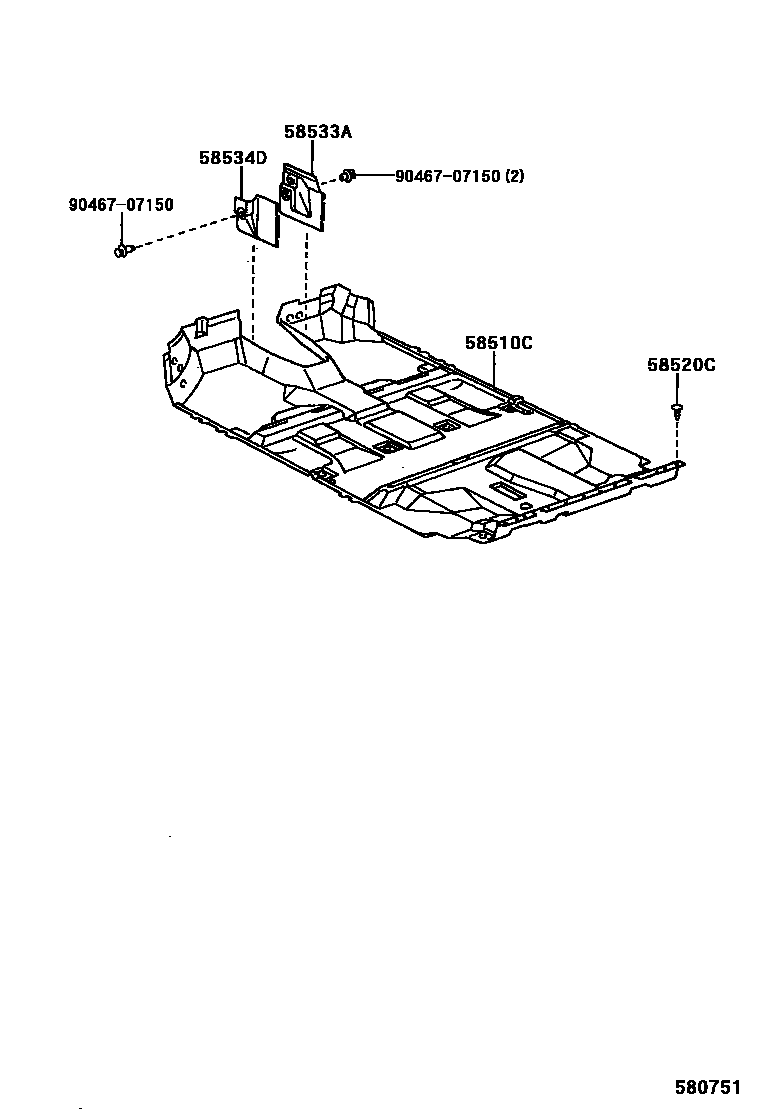

Toyota HARRIER — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-48010-A0i199712-200002

IVORY,TRIM0#

main58510-48010-B0i199712-200002

MEDIUM GRAY,TRIM1#

main58510-48011-A0i200002-200011

IVORY,TRIM0#

main58510-48011-B0i200002-200011

MEDIUM GRAY,TRIM1#

main58510-48040-A0i200011

IVORY,TRIM0#

main58510-48040-C0i200011

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×3i200011

BLACK,TRIM0#,2#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-48010-B0i199712-200011

SHADOW GRAY,TRIM1#

main58533-48010-C0i200011

BLACK,TRIM2#

main58533-48010-E0i199712

SANDAL WOOD,TRIM0#

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-48010-B0i199712-200011

SHADOW GRAY,TRIM1#

main58534-48010-C0i200011

BLACK,TRIM2#

main58534-48010-E0i199712

SANDAL WOOD,TRIM0#

9046707150

main90467-07150

5 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota HARRIER

This section contains 5 genuine Toyota parts for the MAT & CARPET system of the Toyota HARRIER. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), COVER, FLOOR CARPET, CENTER RH, COVER, FLOOR CARPET, CENTER LH.
