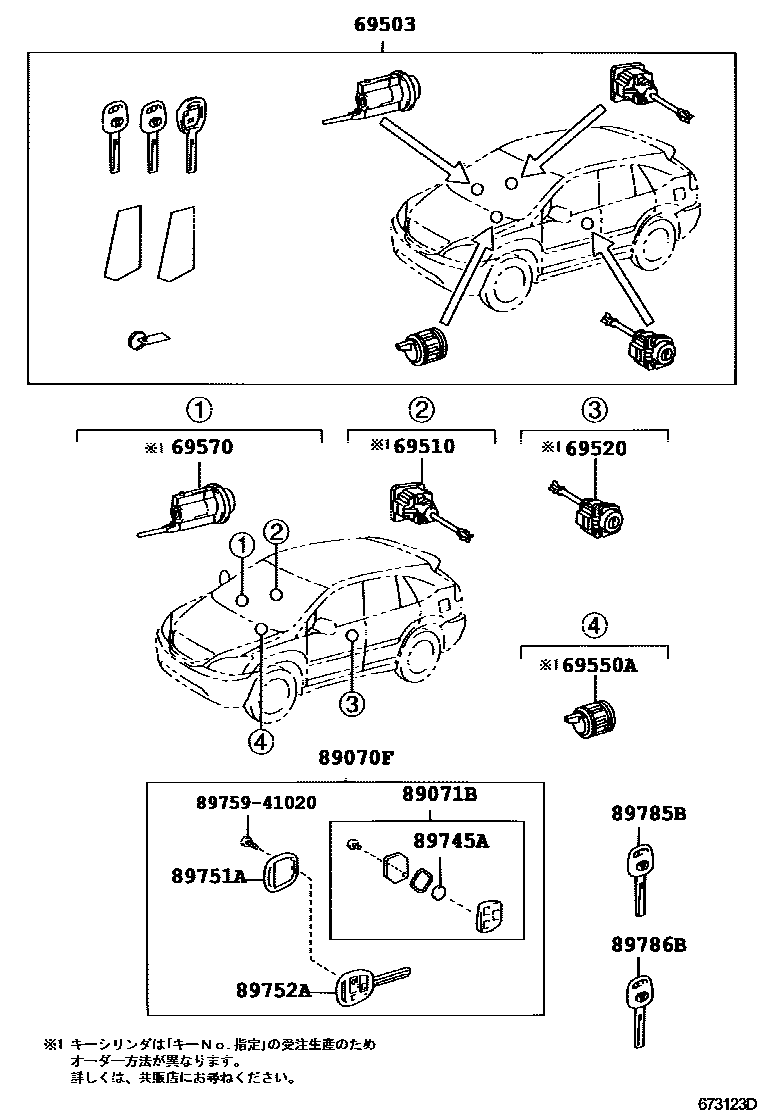

Toyota HARRIER — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-48110supersedes 69005-48101i200302-200507

main69005-48111i200508-200601

main69005-48271supersedes 69005-48261i200601-200812

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-48050i200302-200601

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-48060i200302-200601

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-33090i200601

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-60160i200508-200601

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-48B11supersedes 89070-4D111i200601-200812

main89070-4D120supersedes 89070-4D110i200302-200601

main89070-4D121i200601-200812

main89070-48B12supersedes 89070-4D112i201110-201207

main89070-4D122supersedes 89070-4D112i201110-201207

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-48150supersedes 89071-48140i200601-200812

main89071-48420i200601-200812

main89071-48151supersedes 89071-48411i201110-201207

main89071-48421supersedes 89071-48411i201110-201207

89745ABATTERY, TRANSMITTER

main89745-48030×3supersedes 89745-40010i200601-201109

89751ACOVER, TRANSMITTER HOUSING

main89751-48121i200601-201207

main89751-50010i200302-200601

main89751-50011×2i200601-201207

89752ACASE, TRANSMITTER HOUSING

main89752-48060supersedes 89752-48070i200302-200601

main89752-48100i200601-200812

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60130i200302-200601

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60140i200302-200601

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

13 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota HARRIER

This section contains 13 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota HARRIER. Key components include: CYLINDER SET, LOCK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH, CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK, CYLINDER ASSY, IGNITION SWITCH LOCK.
