Toyota HARRIER — LOCK CYLINDER SET

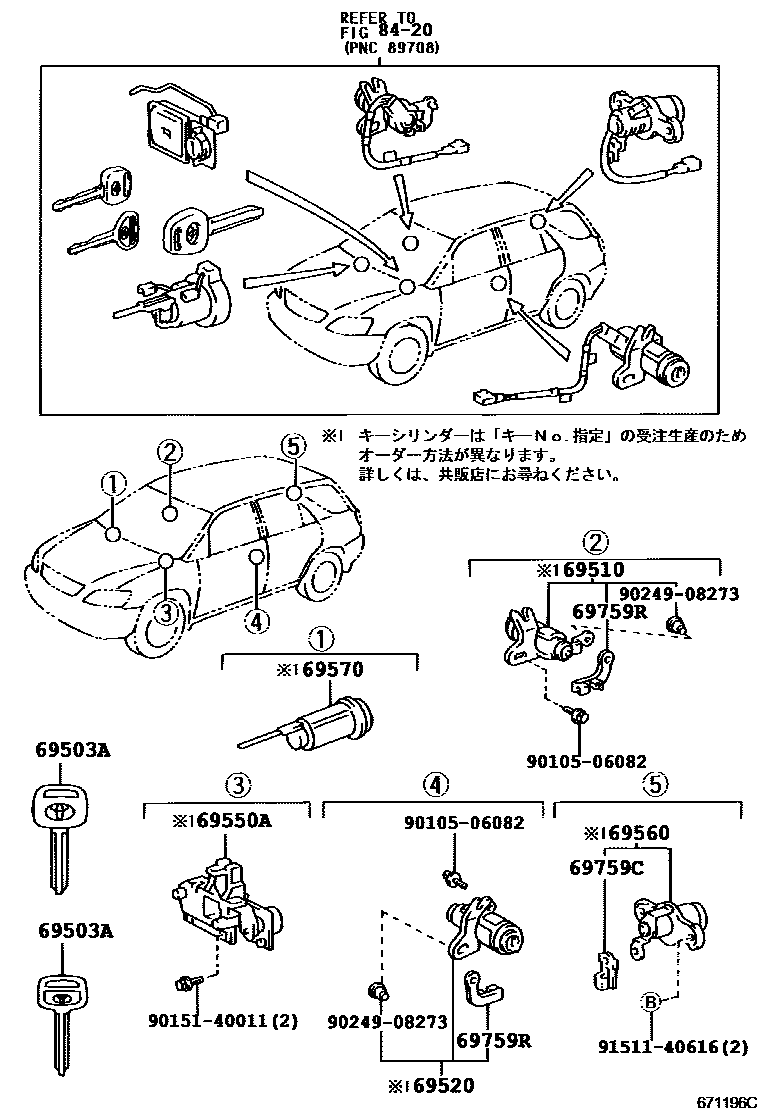

Parts diagram

69503AKEY, BLANK

main90999-00185i199712

main90999-00188i199712

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-48010i199712-200011

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-48010i199712-200011

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-48010i199712-200011

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-48010i199712-200011

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-41010i199712-200011

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080i199712

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-50110i199712

main69759-50120i199712

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9010506082

main90105-06082

9015140011

main90151-40011

9024908273

main90249-08273

9151140616

main91511-40616

13 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota HARRIER

This section contains 13 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota HARRIER. Key components include: KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH, CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK, CYLINDER ASSY, BACK DOOR LOCK.
