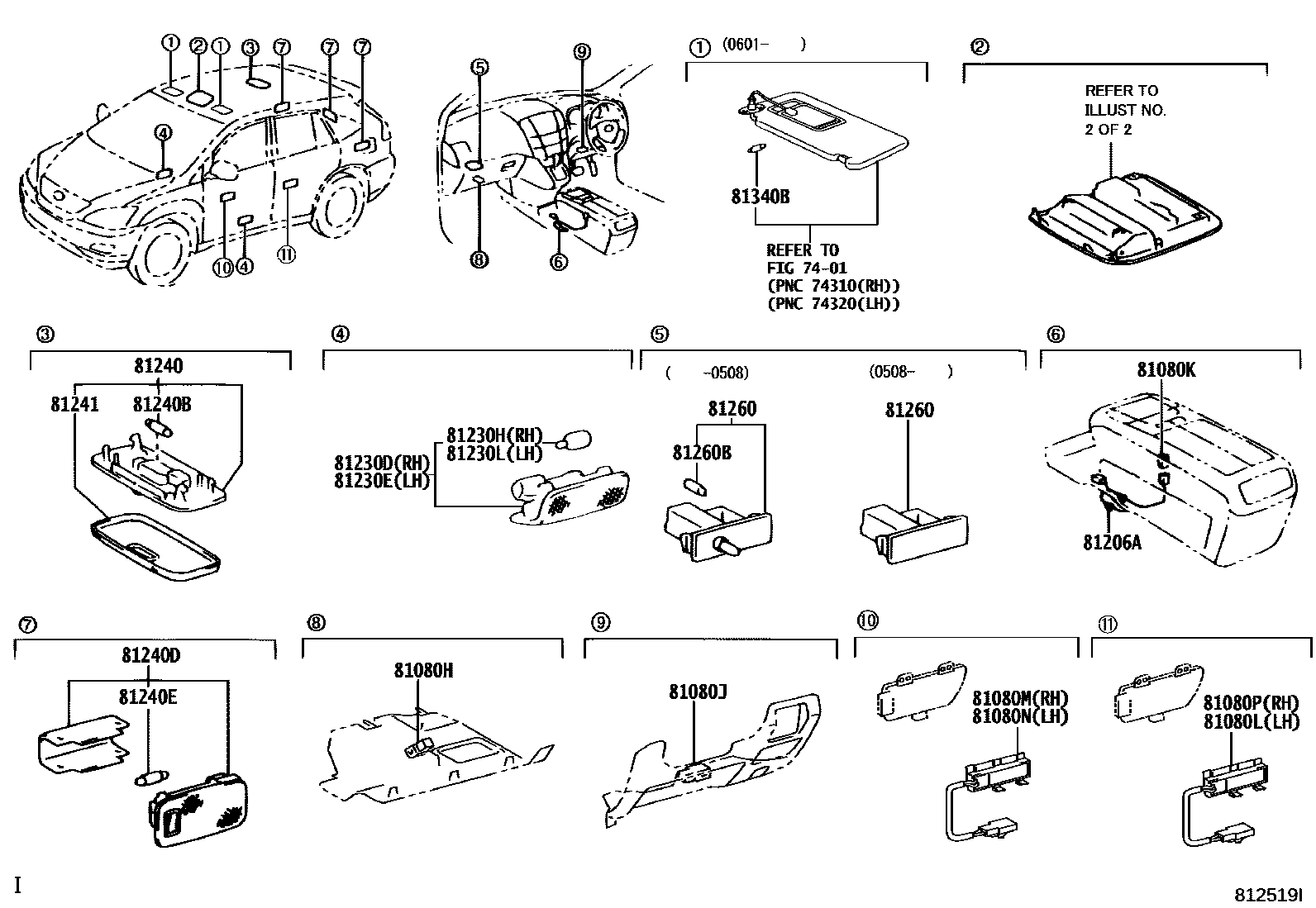

Toyota HARRIER — INTERIOR LAMP
7401ARMREST & VISOR
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81206ALAMP SUB-ASSY, CONSOLE BOX
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81240BBULB, ROOM LAMP, NO.1
81240DLAMP ASSY, ROOM, NO.2
81240EBULB, ROOM LAMP, NO.2
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
81340BBULB (FOR VANITY LAMP)
21 parts on this diagram · 2 diagrams in section
INTERIOR LAMP for Toyota HARRIER
This section contains 26 genuine Toyota parts for the INTERIOR LAMP system of the Toyota HARRIER. Key components include: ARMREST & VISOR, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH, LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP ASSY, CONSOLE BOX ILLUMINATION, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH.
