Toyota HARRIER — HEATING & AIR CONDITIONING - COMPRESSOR

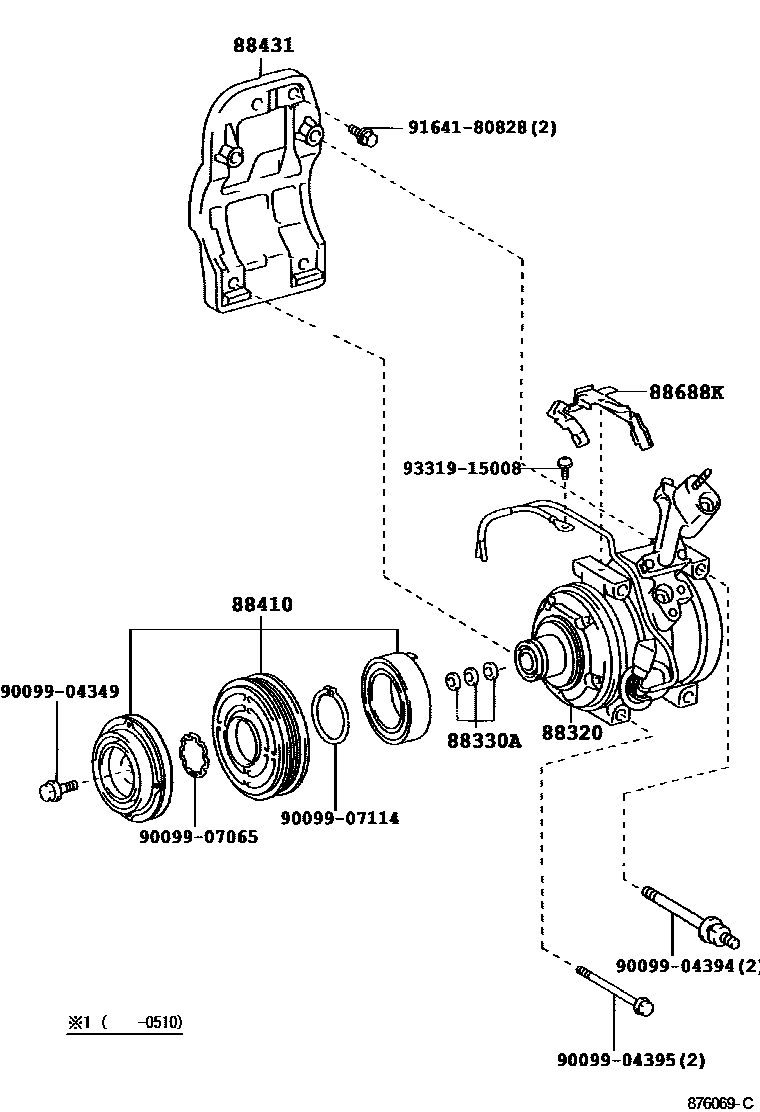

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-48060i200302-200601

main88320-48120i200601-200812

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200302-200601

88410CLUTCH ASSY, MAGNET

main88410-33150i200601-200812

main88410-48050i200302-200601

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07021i200302-200601

main88431-33041i200302-200601

88688KBRACKET, COOLER COMPRESSOR

main88688-03030i200302-200305

main88688-33460i200601-200812

main88688-48110i200305-200601

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

12 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota HARRIER

This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota HARRIER. Key components include: COMPRESSOR ASSY, W/PULLEY, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1.
