Toyota HARRIER — HEATING & AIR CONDITIONING - COMPRESSOR

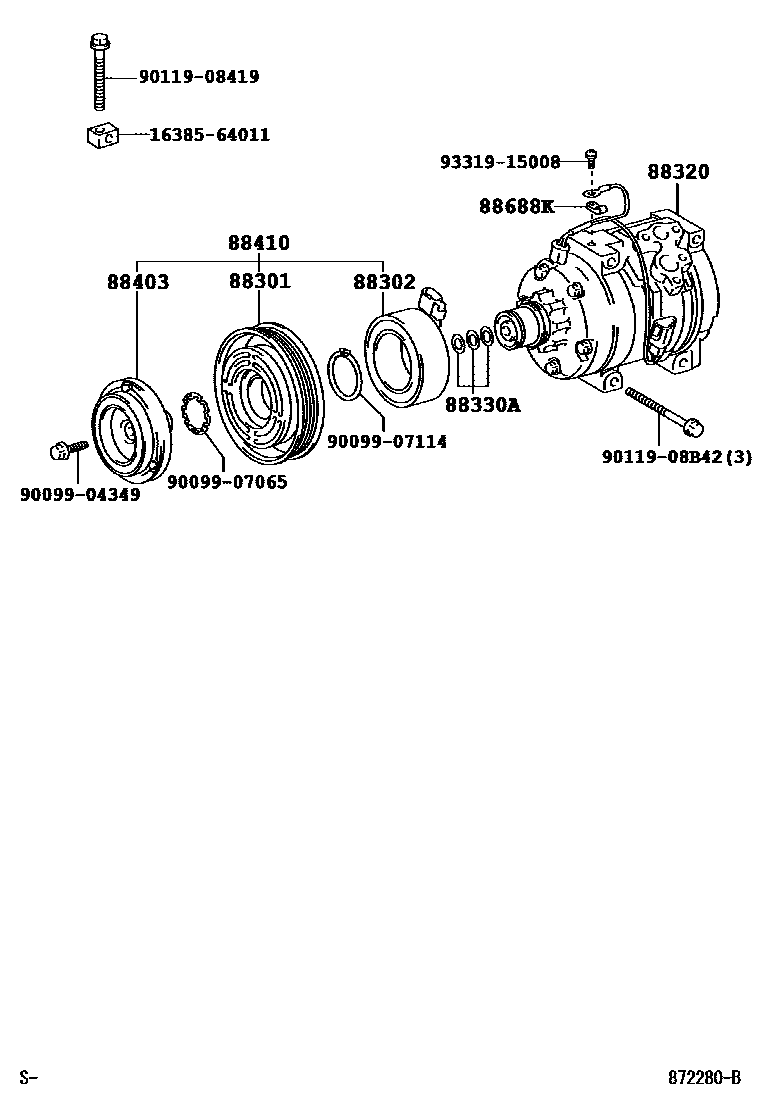

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-42010i200011

main88412-48010i199712-200011

main88412-48020i199712-199903

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32090i199712-199805

main88411-44010i199903

main88411-48010i199712-199903

88320COMPRESSOR ASSY, COOLER

main88320-48030i199712-199903

main88320-48040i199712-199805

main88320-48050i199805-200011

main88320-48060i199903

main88320-48080i200011

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199712

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-32010i199903

88410CLUTCH ASSY, MAGNET

main88410-32160i199806-200011

main88410-33120i199903

main88410-42040i200011

main88410-48010i199712-199806

main88410-48020i199712-199903

88688KBRACKET, COOLER COMPRESSOR

main88569-60070i199805-200011

main88688-32670i199712-199805

main88688-48030i199712-199903

main88688-48040i199903

main88688-48070i200011

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908419

main90119-08419

9011908B42

main90119-08B42

9331915008

main93319-15008

14 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota HARRIER

This section contains 20 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota HARRIER. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
