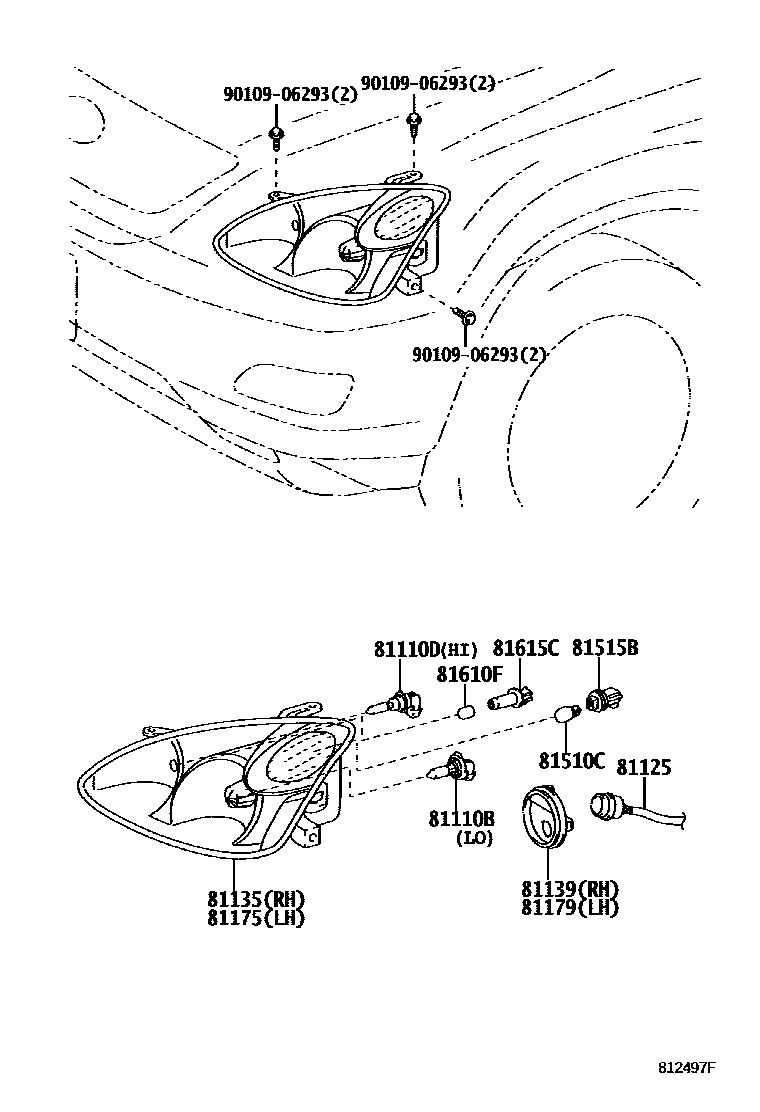

Toyota HARRIER — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13075×2i200302-200601

main90981-20005×2i200302-200601

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046×2i200302-200601

81125CORD, HEADLAMP

main81125-48180×2i200302-200601

main81125-48200×2i200302-200601

81135UNIT ASSY, HEADLAMP, RH

main81145-48181i200601-200902

main81145-48190supersedes 81145-48180i200408-200508

main81145-48191i200508-200601

main81145-48180i200302-200408

main81145-48192supersedes 81145-48182i200902

81139COVER, HEADLAMP SOCKET

main81139-48180i200302-200601

81175UNIT ASSY, HEADLAMP, LH

main81185-48181supersedes 81185-48182i200601-200902

main81185-48190supersedes 81185-48180i200408-200508

main81185-48191i200508-200601

main81185-48180i200302-200408

main81185-48192supersedes 81185-48182i200902

81179COVER, HEADLAMP SOCKET

main81179-48180i200601

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200601

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200302-200601

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200302-200601

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60046×2i200601-200808

main90075-60077×2i200808

9010906293

main90109-06293

12 parts on this diagram · 6 diagrams in section

HEADLAMP for Toyota HARRIER

This section contains 40 genuine Toyota parts for the HEADLAMP system of the Toyota HARRIER. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), CORD, HEADLAMP.
