Toyota HARRIER — HEADLAMP

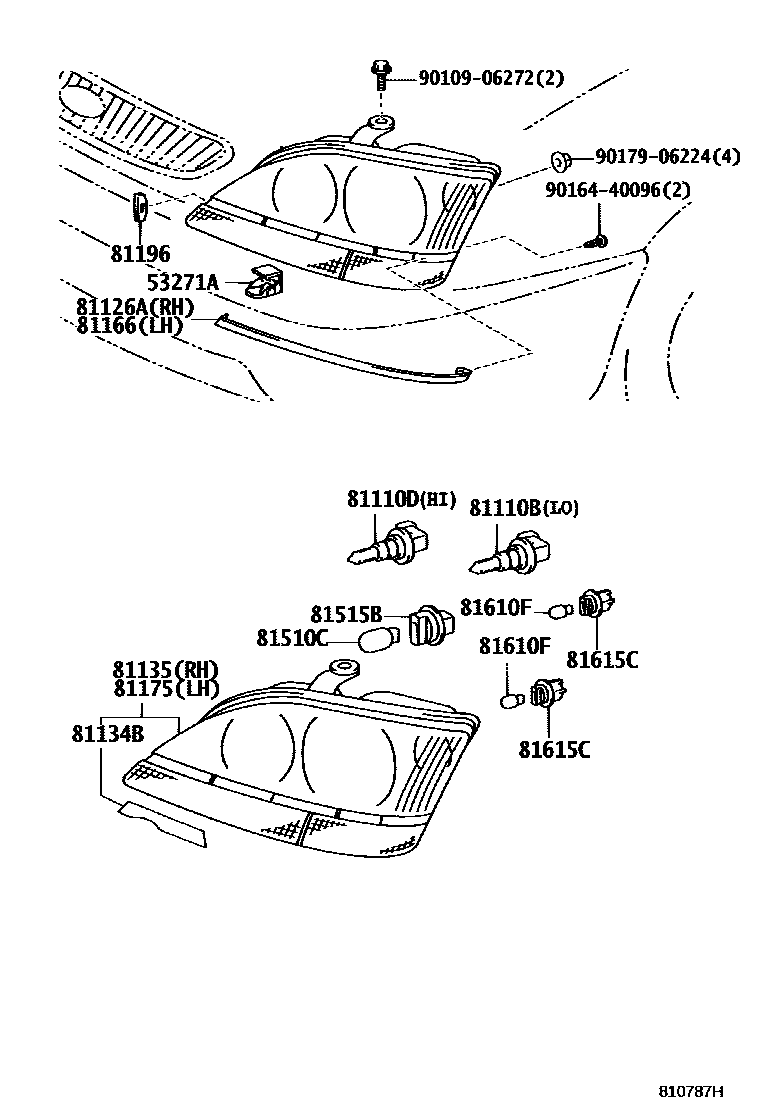

Parts diagram

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i199712

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2i199712

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2i199712

81126APLATE, HEADLAMP, RH

main81126-48010i199712-199805

main81126-48011i199805

81134BTAPE, HEADLAMP PLATE

main81134-48010×2i199712

81135UNIT ASSY, HEADLAMP, RH

main81130-48010i199712-199805

main81130-48011i199805-200011

main81130-48020i199712-199805

main81130-48021i199805-200011

main81130-48040i199712-199805

main81130-48041i199805-200011

main81130-48060i200011-200302

main81130-48120i200011-200302

main81130-48170i200011-200302

81166PLATE, HEADLAMP, LH

main81166-48010i199712-199805

main81166-48011i199805

81175UNIT ASSY, HEADLAMP, LH

main81170-48010i199712-199805

main81170-48011i199805-200011

main81170-48020i199712-199805

main81170-48021i199805-200011

main81170-48040i199712-199805

main81170-48041i199805-200011

main81170-48060i200011-200302

main81170-48120i200011-200302

main81170-48170i200108-200302

81196RETAINER, HEADLAMP

main81196-48010×2i199805

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2i199712

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99128×2i199712

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×4i199712

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60016×2i200011

main99159-10228×2i199712-200011

9010906272

main90109-06272

9016440096

main90164-40096

9017906224

main90179-06224

16 parts on this diagram · 5 diagrams in section

HEADLAMP for Toyota HARRIER

This section contains 30 genuine Toyota parts for the HEADLAMP system of the Toyota HARRIER. Key components include: BRACKET, HEADLAMP MOUNTING, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
