Toyota HARRIER — FUEL INJECTION SYSTEM

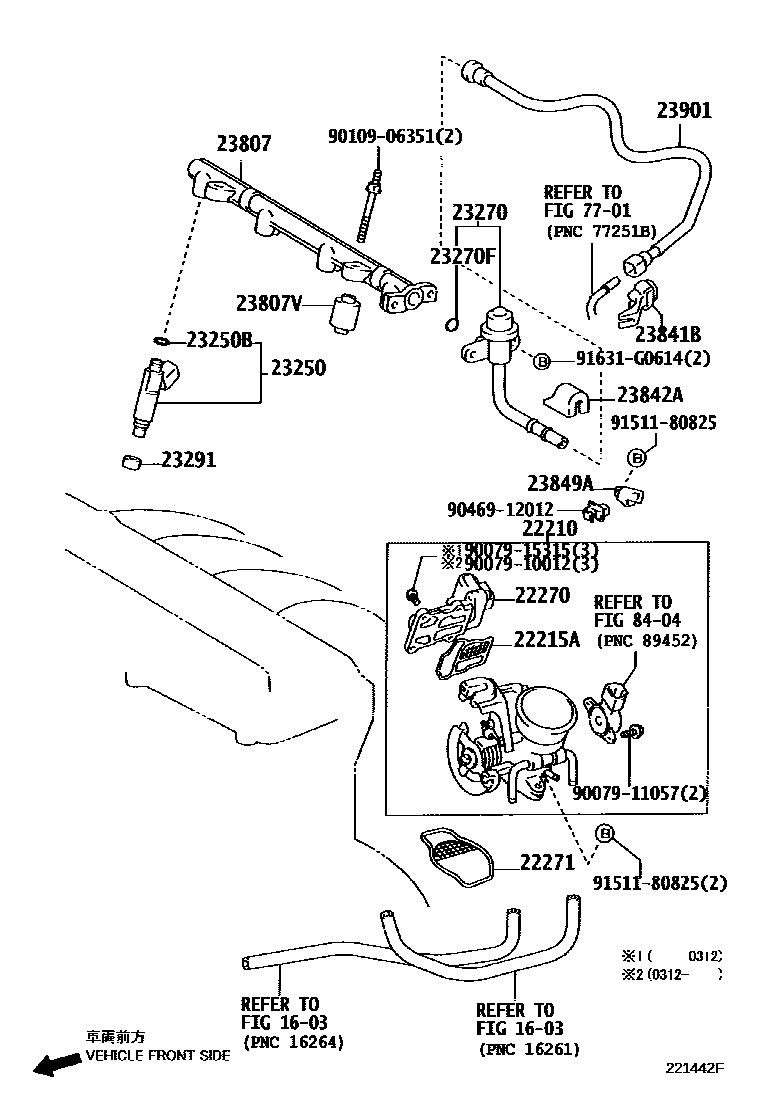

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22030-20060i200302-200601

main22210-28060i200302-200312

main22210-28090i200601

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-28042i200302-200312

main22215-7A680i200312-200601

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-28010i200302-200312

main22270-28020i200601

22271GASKET, THROTTLE BODY

main22271-28020i200302-200601

main22271-31040i200601-200812

23250INJECTOR ASSY, FUEL

main23209-20030×6i200302

main23209-28080×4i200601

main23209-31050×6i200601-200812

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×6i200302-200502

main90301-07033×6i200601-200812

main90301-07037×6i200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i200601-200801

main23270-28021i200801

main23270-31010i200601-200705

main23270-62010i200302-200410

main23270-62011i200410

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i200302-200601

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i200601-200812

main23291-41010×6i200302

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31040i200601-200705

main23807-31090i200705-200812

main23814-20020i200302-200401

main23814-20021i200401

main23814-28020i200302-200312

main23814-28031i200312-200601

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020×4i200302

main90561-08053×2i200302-200601

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i200705

main23841-28010i200601-200704

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i200302-200601

main23842-31040i200601-200812

23849ASUPPORT, FUEL PIPE

main23849-28010i200601

23901TUBE SUB-ASSY, FUEL

main23901-28071i200302-200407

main23901-28072i200408-200601

main23901-31120i200601-200603

main23901-31121i200604-200812

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910012

main90079-10012

9007911057

main90079-11057

9007915315

main90079-15315

9010906351

main90109-06351

9046912012

main90469-12012

9151180825

main91511-80825

91631G0614

main91631-G0614

25 parts on this diagram · 5 diagrams in section

FUEL INJECTION SYSTEM for Toyota HARRIER

This section contains 42 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota HARRIER. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, BODY ASSY, THROTTLE, GASKET, IDLE SPEED CONTROL VALVE, BRACKET, THROTTLE BODY.
