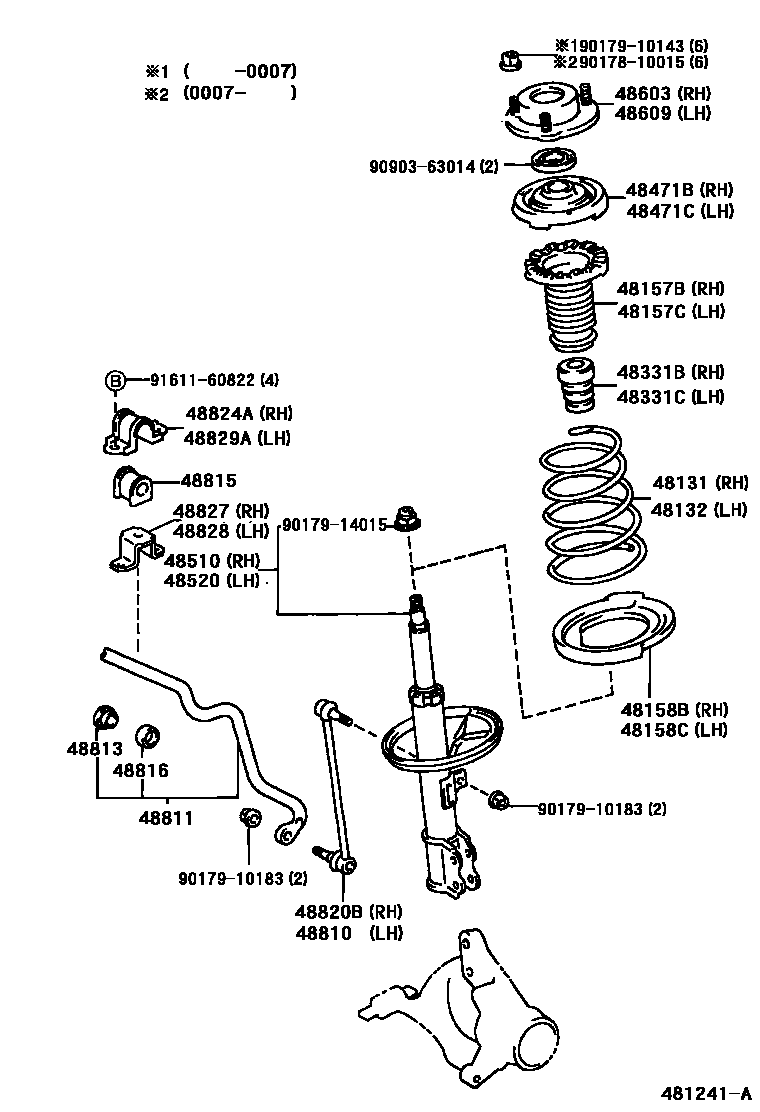

Toyota HARRIER — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48813STOPPER, FRONT STABILIZER
48815BUSH, FRONT STABILIZER BAR, NO.1
48816CLAMP, FRONT STABILIZER STOPPER
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9017810015
main90178-10015
9017910143
main90179-10143
9017910183
main90179-10183
9017914015
main90179-14015
9090363014
main90903-63014
9161160822
main91611-60822
30 parts on this diagram · 1 diagram in section
