Toyota HARRIER — FRONT FENDER APRON & DASH PANEL

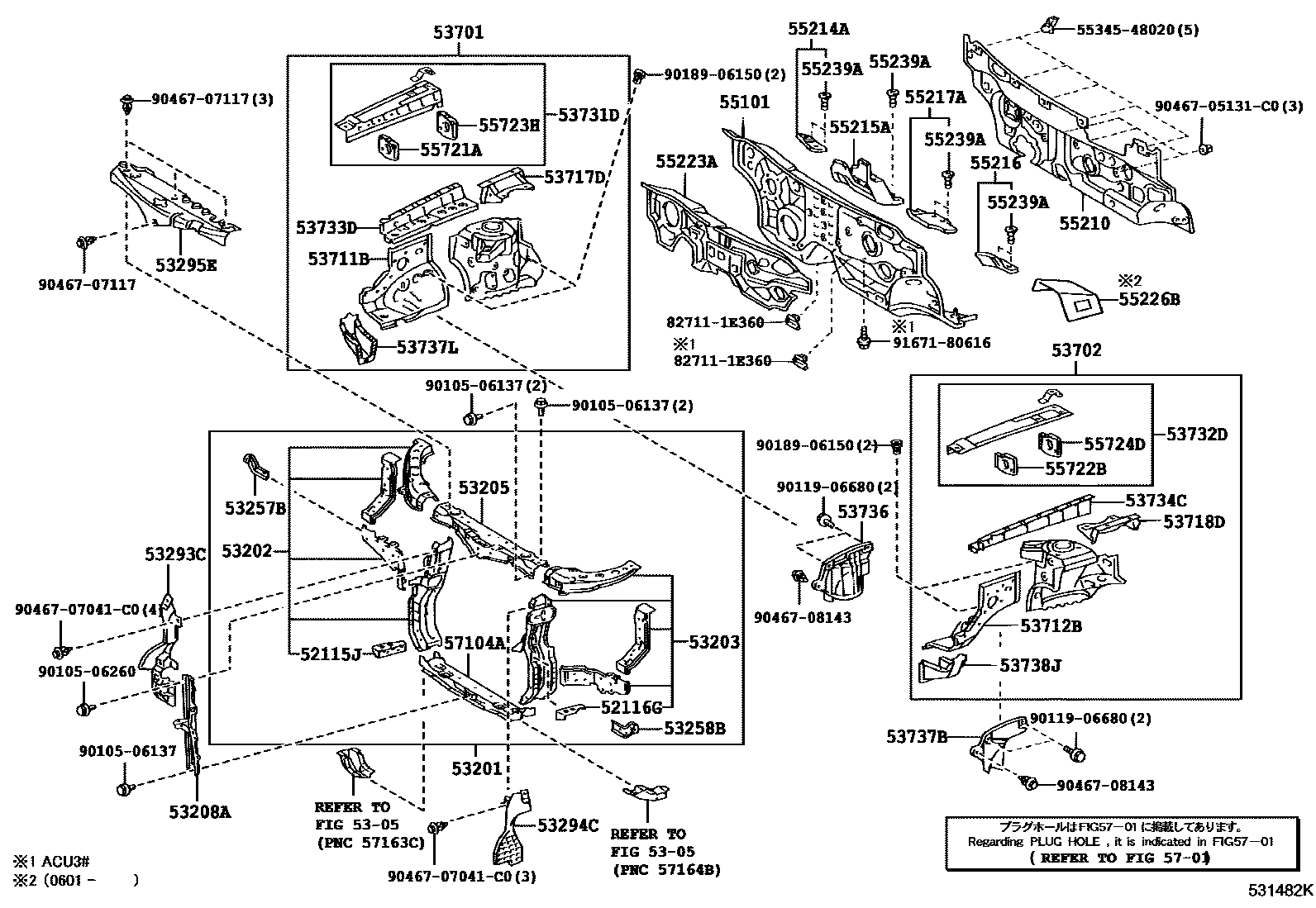

Parts diagram

52115JSUPPORT, FRONT BUMPER SIDE, RH

main52115-48050i200302-200601

52116GSUPPORT, FRONT BUMPER SIDE, LH

main52116-48040i200302-200601

5305

53201SUPPORT SUB-ASSY, RADIATOR

main53201-48040i200302-200507

main53201-48041i200508-200601

main53201-48905i200801-200812

main53201-48900i200302-200508

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-48030i200302-200507

main53202-48031i200601-201001

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-48030i200302-200507

main53203-48031i200508-200601

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-48040i200508-200601

main53205-48050i200302-200601

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-48020i200302-200601

main53208-48030i200601-201207

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-48040i200601-201001

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-48040i200302-200507

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-48030i200302-200601

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-48030i200302-200601

53295ESEAL, COOL AIR INTAKE DUCT

main53295-48010i200302-200601

main53295-48020i200302-200601

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-48030i200302-200411

main53701-48031i200411-200601

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-48030i200302-200601

53711BAPRON, FRONT FENDER, FRONT RH

main53711-48030i200302-200601

53712BAPRON, FRONT FENDER, FRONT LH

main53712-48030i200302-200601

53717DGUSSET, FENDER APRON, RH

main53717-48030i200302-200601

53718DGUSSET, FENDER APRON, LH

main53718-48030i200601

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-48902i200302-200601

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-48903i200302-200601

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-48020i200302-200601

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-48020i200302-200601

53736SEAL, FRONT FENDER APRON, RH

main53736-33030i200302-200601

main53736-33040i200601-200812

53737BSEAL, FRONT FENDER APRON, LH

main53737-33020i200302-200601

53737LGUSSET, FRONT FENDER APRON WIND GUIDE, RH

main53737-48010i200302-200601

53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH

main53738-48020i200302-200601

55101PANEL SUB-ASSY, DASH

main55101-48060i200302-200601

55210INSULATOR ASSY, DASH PANEL

main55210-48050i200302-200307

main55210-48051i200307-200510

main55210-48053i200511-200601

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-48010i200302-200601

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-48010i200302-200601

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-48020i200302-200601

55217ARETAINER, DASH PANEL SILENCER

main55217-48020i200302-200601

55223AINSULATOR, DASH PANEL, OUTER

main55223-48050i200302-200601

main55223-48051i200601-200812

55226BSHEET, DASH PANEL INSULATOR, NO.5

main55226-48010i200601-200902

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×7i200302-200601

55721ABRACE, COWL TOP TO COWL, INNER NO.1

main55721-48010i200302-200601

55722BBRACE, COWL TOP TO COWL, INNER NO.2

main55722-48030i200302-200601

55723HREINFORCEMENT, COWL TOP SIDE, RH

main55723-48020i200302-200601

55724DREINFORCEMENT, COWL TOP SIDE, LH

main55724-48020i200302-200601

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-48040i200302-200507

5534548020GARNISH, GLOVE COMPARTMENT, UPPER

main55345-48020

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9010506137

main90105-06137

9010506260

main90105-06260

9011906680

main90119-06680

9018906150

main90189-06150

9046705131C0

main90467-05131C0

9046707041C0

main90467-07041C0

9046707117

main90467-07117

9046708143

main90467-08143

9167180616

main91671-80616

53 parts on this diagram · 1 diagram in section
