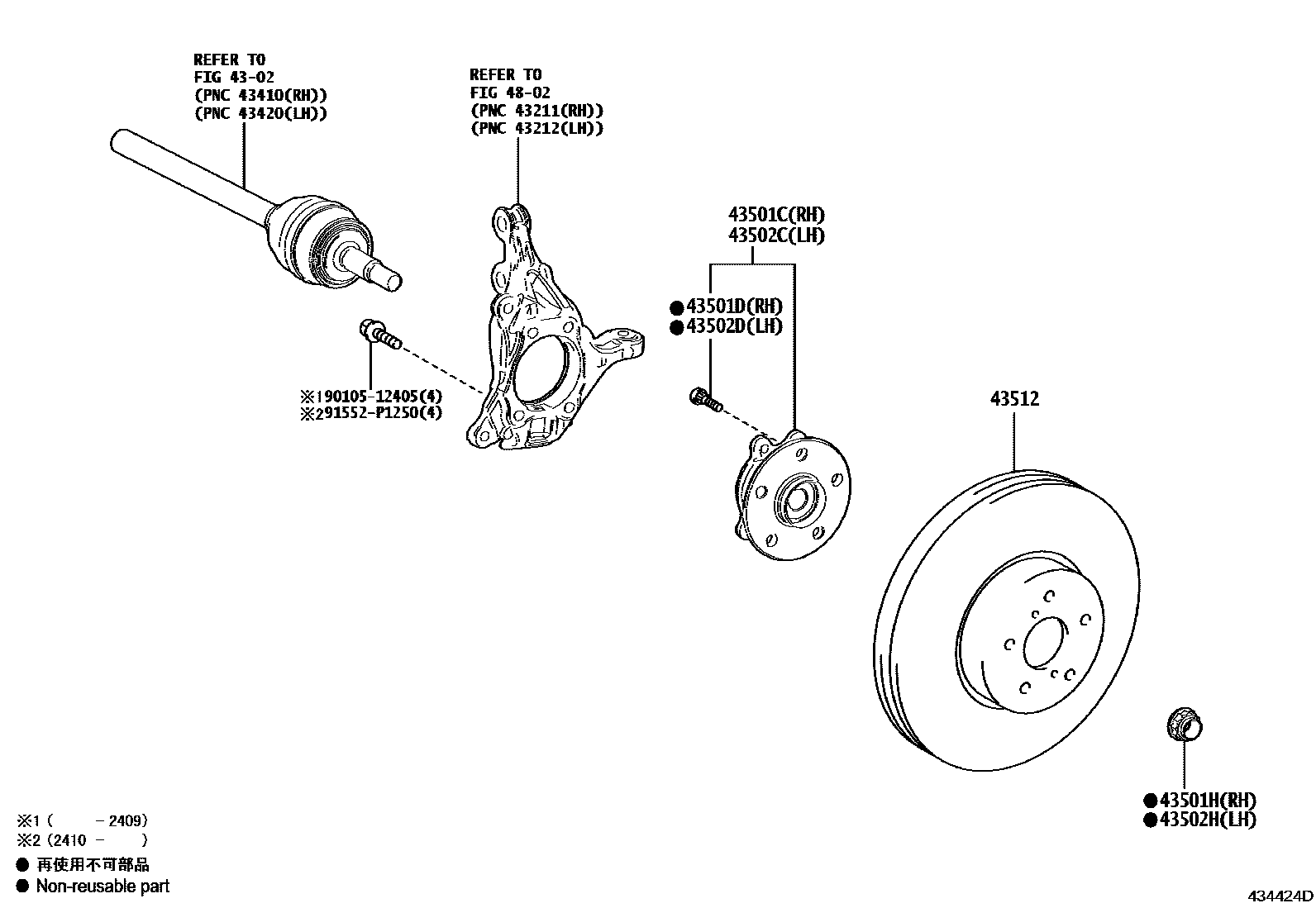

Toyota HARRIER — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33070iAXUH8#,MXUA8#202210-202309

main43550-33090iMXUA80;AXUH8#,MXUA85..G,Z202310

main43550-42030iAXUP85202210

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXUH8#,MXUA8#202006-202210

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33070iAXUH8#,MXUA8#202006-202210

main43550-33090iMXUA80;AXUH8#,MXUA85..G,Z202310

main43550-42030iAXUP85202210

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAXUH8#,MXUA8#202006-202210

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXUH8#,MXUA8#202006-202210

43512DISC, FRONT

main43512-33150×2iAXUH8#,MXUA8#202006-202210

main43512-42070×2iAXUP85202210

4802

9010512405

main90105-12405

91552P1250

main91552-P1250

11 parts on this diagram · 1 diagram in section
