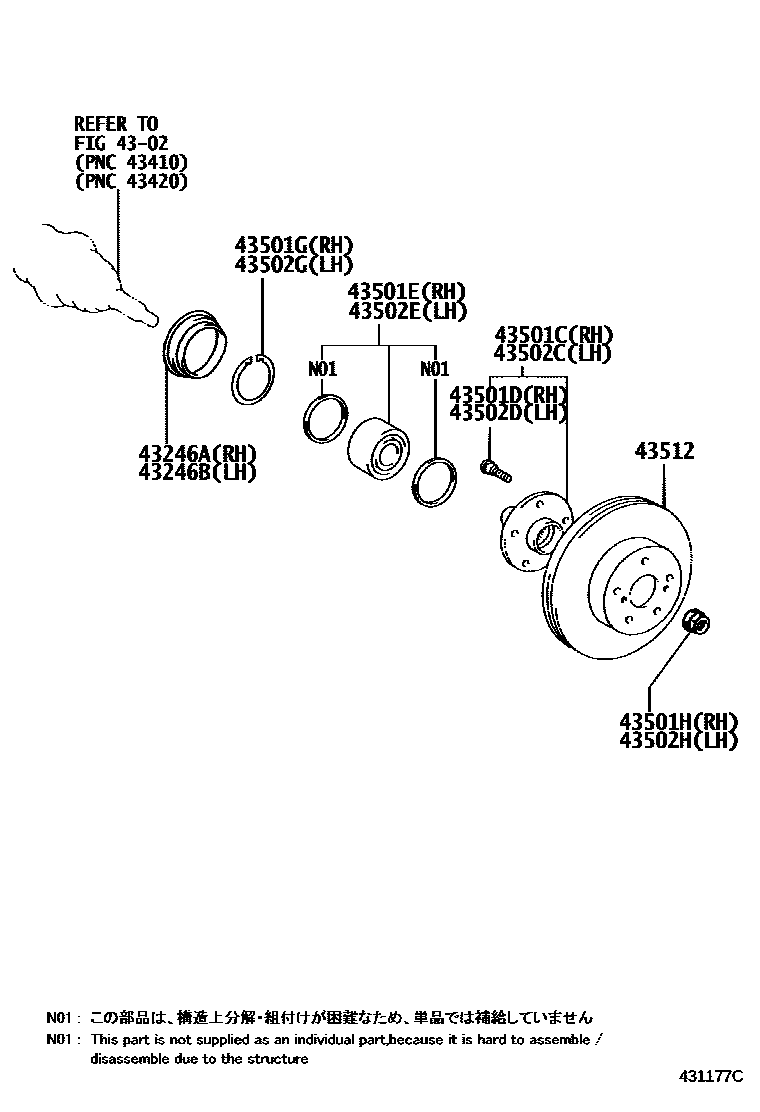

Toyota HARRIER — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020i200601

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020i200302-200601

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28090i200601

main43502-28100i200601-200812

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200302-200601

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45003i200302-200601

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001i200302-200601

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200601

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28090i200302-200601

main43502-28100i200302-200601

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200601-200812

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45003i200302-200601

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001i200302-200601

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200601-200812

43512DISC, FRONT

main43512-48081×2i200601-201207

main43512-48090×2i200302-200310

main43512-48100×2i200405-200601

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota HARRIER

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota HARRIER. Key components include: FRONT DRIVE SHAFT, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH).
