Toyota HARRIER — ENGINE OIL PUMP

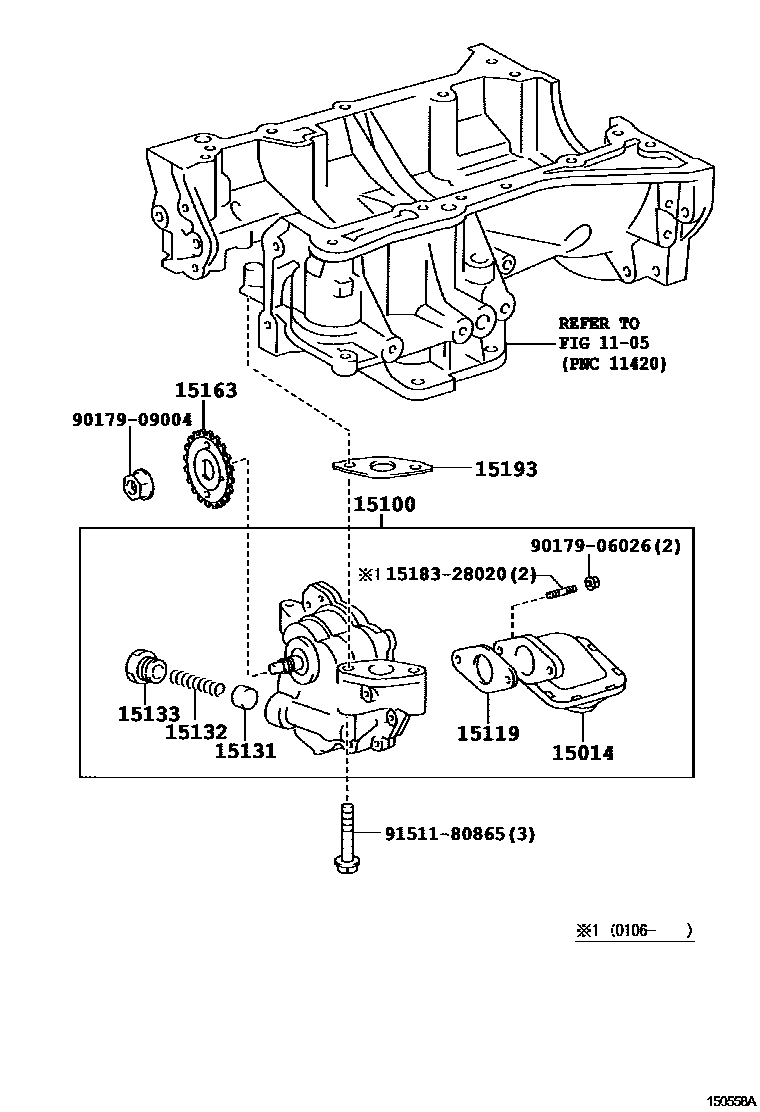

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15014STRAINER SET, OIL PUMP

main15014-28020i200011

15100PUMP ASSY, OIL

main15100-20040i199712

main15100-28020i200011

main15100-74030i199712

15119GASKET, OIL PUMP COVER

main15119-28020i200011

15131VALVE, OIL PUMP RELIEF

main15131-46040i199712

main15131-63011i199712

15132SPRING, OIL PUMP RELIEF VALVE

main15132-28020i200011

main15132-46020i199712

main15132-88380i199712

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i199712

main15133-28020i200011

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i200011

15193GASKET, OIL PUMP

main15193-28010i200011

main15197-74040i199712

1518328020BOLT, UNION(FOR OIL PUMP)

main15183-28020

9017906026

main90179-06026

9017909004

main90179-09004

9151180865

main91511-80865

13 parts on this diagram · 4 diagrams in section

ENGINE OIL PUMP for Toyota HARRIER

This section contains 44 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota HARRIER. Key components include: CYLINDER BLOCK, PLATE, TIMING BELT, STRAINER SET, OIL PUMP, PUMP ASSY, OIL, RING, O(FOR OIL PUMP).
