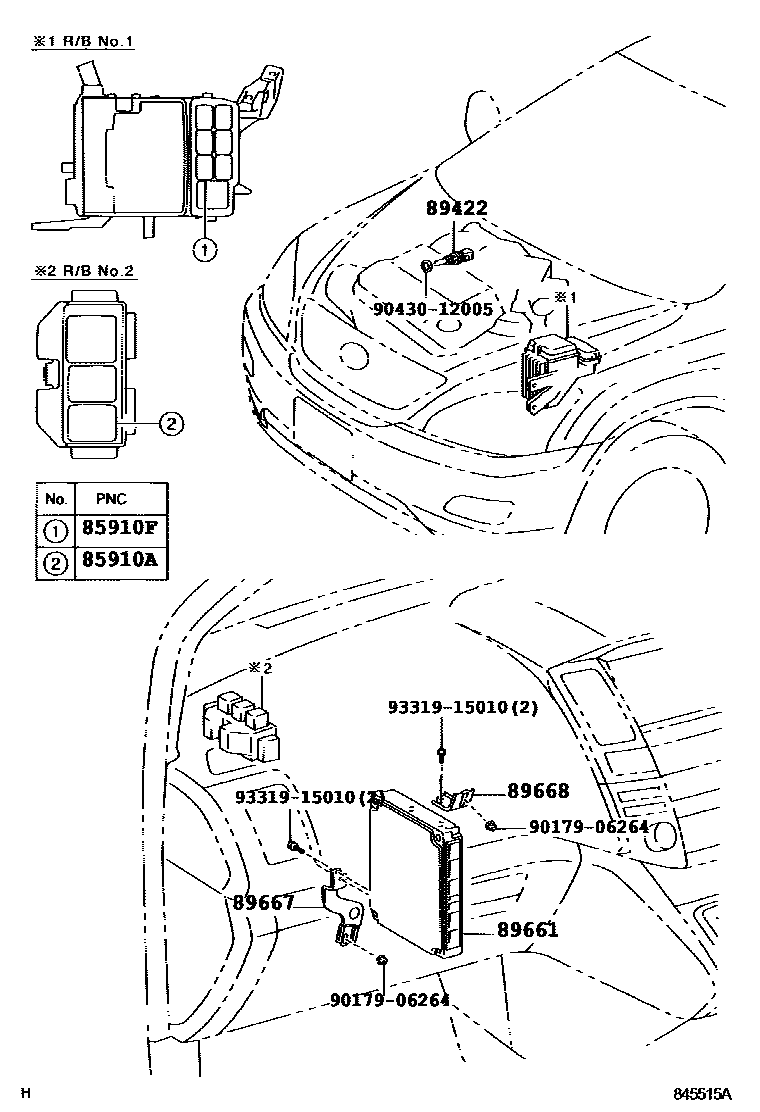

Toyota HARRIER — ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9017906264
main90179-06264
9043012005
main90430-12005
9331915010
main93319-15010
9 parts on this diagram · 3 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota HARRIER
This section contains 12 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota HARRIER. Key components include: RELAY ASSY, FUEL PUMP, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), RELAY, HEATER (FOR AIR FUEL RATIO SENSOR), SENSOR, WATER TEMPERATURE (FOR E.F.I.).
