Toyota HARRIER — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55359CCOSHION, INSTRUMENT PANEL, NO.5
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55784CPAD, COWL TOP SILENCER, LH
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55799CCLIP, COWL TOP VENTILATOR LOUVER
55879BSEAL, COWL VENT
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
9010506260
main90105-06260
9011906480
main90119-06480
9017906219
main90179-06219
9046705162C0
main90467-05162C0
9046708011
main90467-08011
25 parts on this diagram · 1 diagram in section

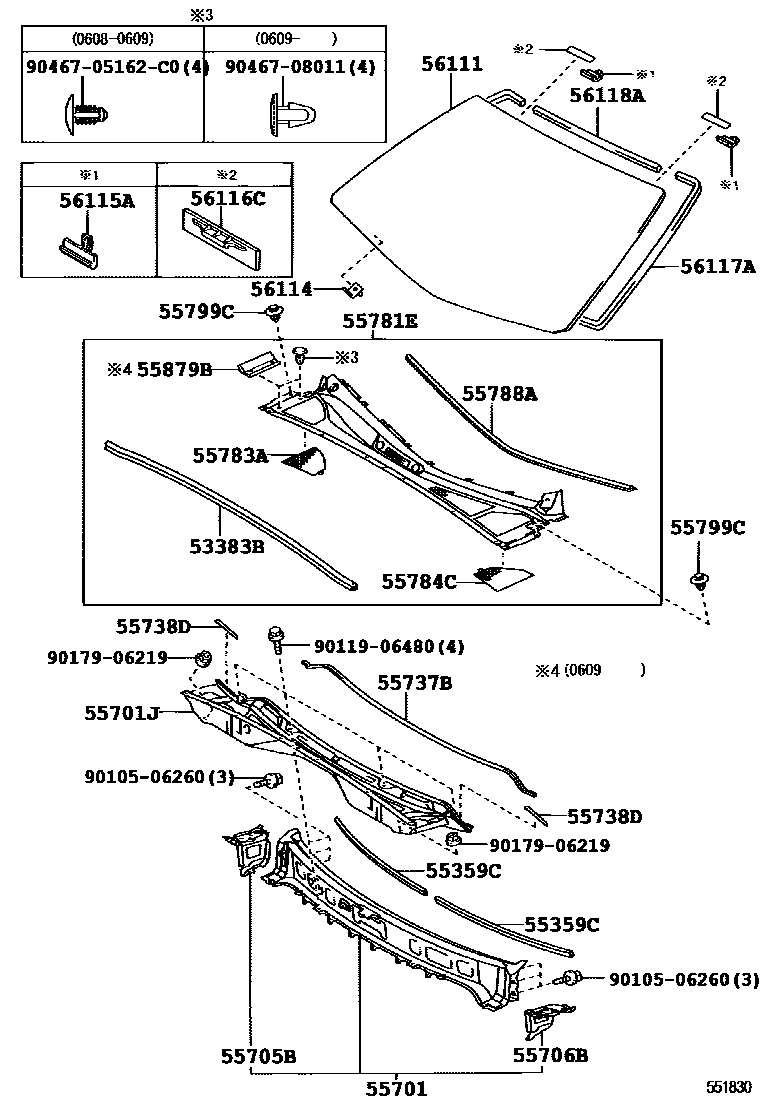

COWL PANEL & WINDSHIELD GLASS for Toyota HARRIER
This section contains 25 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota HARRIER. Key components include: SEAL, HOOD TO COWL TOP, COSHION, INSTRUMENT PANEL, NO.5, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP, OUTER, PANEL SUB-ASSY, COWL TOP SIDE, RH.
