Toyota HARRIER — CONSOLE BOX & BRACKET

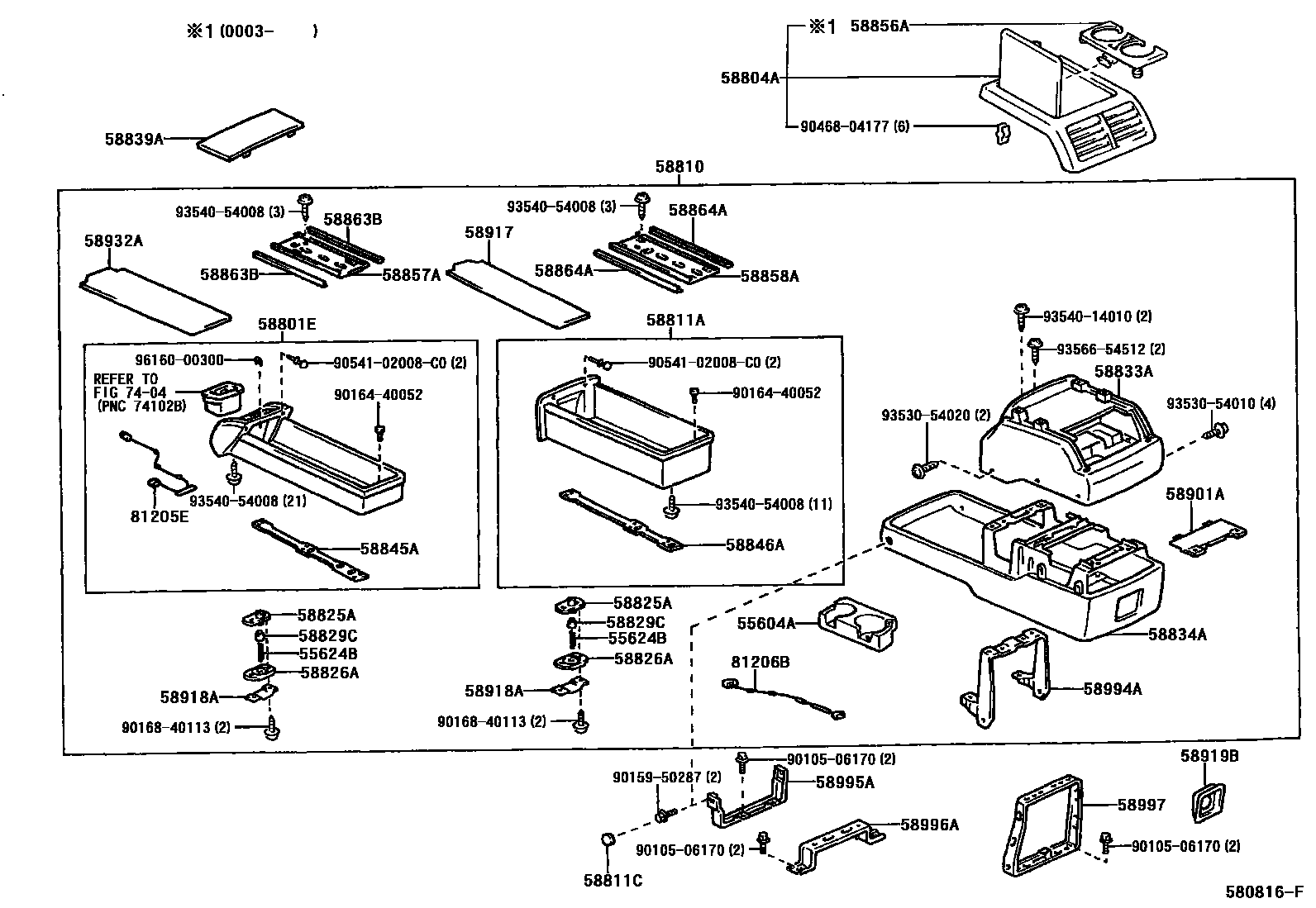

Parts diagram
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-48010-B0i199712-200004
SHADOW GRAY,TRIM1#
main55604-48010-E0i199712-200004
SANDAL WOOD,TRIM0#
main55604-48011-B0i200004-200011
SHADOW GRAY,TRIM1#
main55604-48011-C0i200011
BLACK,TRIM2#
main55604-48011-E0i200004
SANDAL WOOD,TRIM0#
55624BSPRING, INSTRMENT PANEL CUP HOLDER, NO.3
main55624-48020×2i199712
58801EBOX SUB-ASSY, CONSOLE, UPPER
main58801-48010-B0i199712-199907
SHADOW GRAY,TRIM1#
main58801-48010-E0i199712-199907
SANDAL WOOD,TRIM0#
main58801-48011-B0i199907-200003
SHADOW GRAY,TRIM1#
main58801-48011-E0i199907-200003
SANDAL WOOD,TRIM0#
main58801-48012-B0i200003-200011
SHADOW GRAY,TRIM1#
main58801-48012-C0i200011
BLACK,TRIM2#
main58801-48012-E0i200003
SANDAL WOOD,TRIM0#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-48010-B0i199712-200003
SHADOW GRAY,TRIM1#
main58804-48010-E0i199712-200003
SANDAL WOOD,TRIM0#
main58804-48011-B0i200003-200011
SHADOW GRAY,TRIM1#
main58804-48011-C0i200011
BLACK,TRIM2#
main58804-48011-E0i200003
SANDAL WOOD,TRIM0#
58810CONSOLE ASSY
main58810-48010-B0i199712-200003
SHADOW GRAY,TRIM1#
main58810-48010-E0i199712-200003
SANDAL WOOD,TRIM0#
main58810-48011-B0i200003-200011
SHADOW GRAY,TRIM1#
main58810-48011-C0i200011
BLACK,TRIM2#
main58810-48011-E0i200003
SANDAL WOOD,TRIM0#
58811ABOX, CONSOLE, FRONT
main58802-48010-B0i199712-200003
SHADOW GRAY,TRIM1#
main58802-48010-E0i199712-200003
SANDAL WOOD,TRIM0#
main58802-48011-B0i200003-200011
SHADOW GRAY,TRIM1#
main58802-48011-C0i200011
BLACK,TRIM2#
main58802-48011-E0i200003
SANDAL WOOD,TRIM0#
58811CCAP(FOR CONSOLE)
main90339-10014-B2×2i199712-200011
SHADOW GRAY,TRIM1#
main90339-10014-C0×2i200011
BLACK,TRIM2#
main90339-10014-E3×2i199712
SANDAL WOOD,TRIM0#
58825APOCKET, CONSOLE BOX
main58825-48010×2i199712
58826APOCKET, CONSOLE BOX, LOWER
main58826-48010×2i199712
58829CSTOPPER, CONSOLE BOX POCKET
main58829-48010×2i199712
58833ACOVER, CONSOLE, UPPER
main58833-48010-B0i199712-200011
SHADOW GRAY,TRIM1#
main58833-48010-C0i200011
BLACK,TRIM2#
main58833-48010-E0i199712
SANDAL WOOD,TRIM0#
58834ACOVER, CONSOLE, LOWER
main58834-48010-B0i199712-200011
SHADOW GRAY,TRIM1#
main58834-48010-C0i200011
BLACK,TRIM2#
main58834-48010-E0i199712
SANDAL WOOD,TRIM0#
58839ACOVER, CONSOLE BOX HOLE
main58839-48010-B0i199712-200011
SHADOW GRAY,TRIM1#
main58839-48010-C0i200011
BLACK,TRIM2#
main58839-48010-E0i199712
SANDAL WOOD,TRIM0#
58845AFRAME, CONSOLE, NO.1
main58845-48010i199712
58846AFRAME, CONSOLE, NO.2
main58846-48010i199712
58856AHOLDER, CONSOLE BOX
main58805-48010-B0i200003-200011
SHADOW GRAY,TRIM1#
main58805-48010-C0i200011
BLACK,TRIM2#
main58805-48010-E0i200003
SANDAL WOOD,TRIM0#
58857ABRACKET, CONSOLE SUPPORT, UPPER NO.1
main58857-48010i199712
58858ABRACKET, CONSOLE SUPPORT, UPPER NO.2
main58858-48010i199712
58863BSUPPORT, CONSOLE BOX, NO.3
main58863-48010i199712
main58863-48020i199712
58864ASUPPORT, CONSOLE BOX, NO.4
main58864-48010i199712
main58864-48020i199712
58901ABOX SUB-ASSY, CONSOLE, REAR
main58911-48010i199712
58917MAT, BOX BOTTOM, NO.2
main58917-48010i199712
58918ABRACKET, BOX SUPPORT
main58918-48010×2i199712
58919BPLATE, CONSOLE BOX
main58919-48010-B0i199712-200011
SHADOW GRAY,TRIM1#
main58919-48010-C0i200011
BLACK,TRIM2#
main58919-48010-E0i199712
SANDAL WOOD,TRIM0#
58932AGARNISH, REAR CONSOLE BOX
main58932-48010i199712
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
main58994-48010i199712
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-48010i199712
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-48010i199712
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-48010i199712
7404
81205ELAMP SUB-ASSY, ASH RECEPTACLE
main81205-48010i199712-199907
main81205-48011i199907
81206BLAMP SUB-ASSY, CONSOLE BOX
main81206-48010i199712-199907
main81206-48011i199907
9010506170
main90105-06170
9015950287
main90159-50287
9016440052
main90164-40052
9016840113
main90168-40113
9046804177
main90468-04177
9054102008C0
main90541-02008C0
9353054010
main93530-54010
9353054020
main93530-54020
9354014010
main93540-14010
9354054008
main93540-54008
9356654512
main93566-54512
9616000300
main96160-00300

44 parts on this diagram · 1 diagram in section
