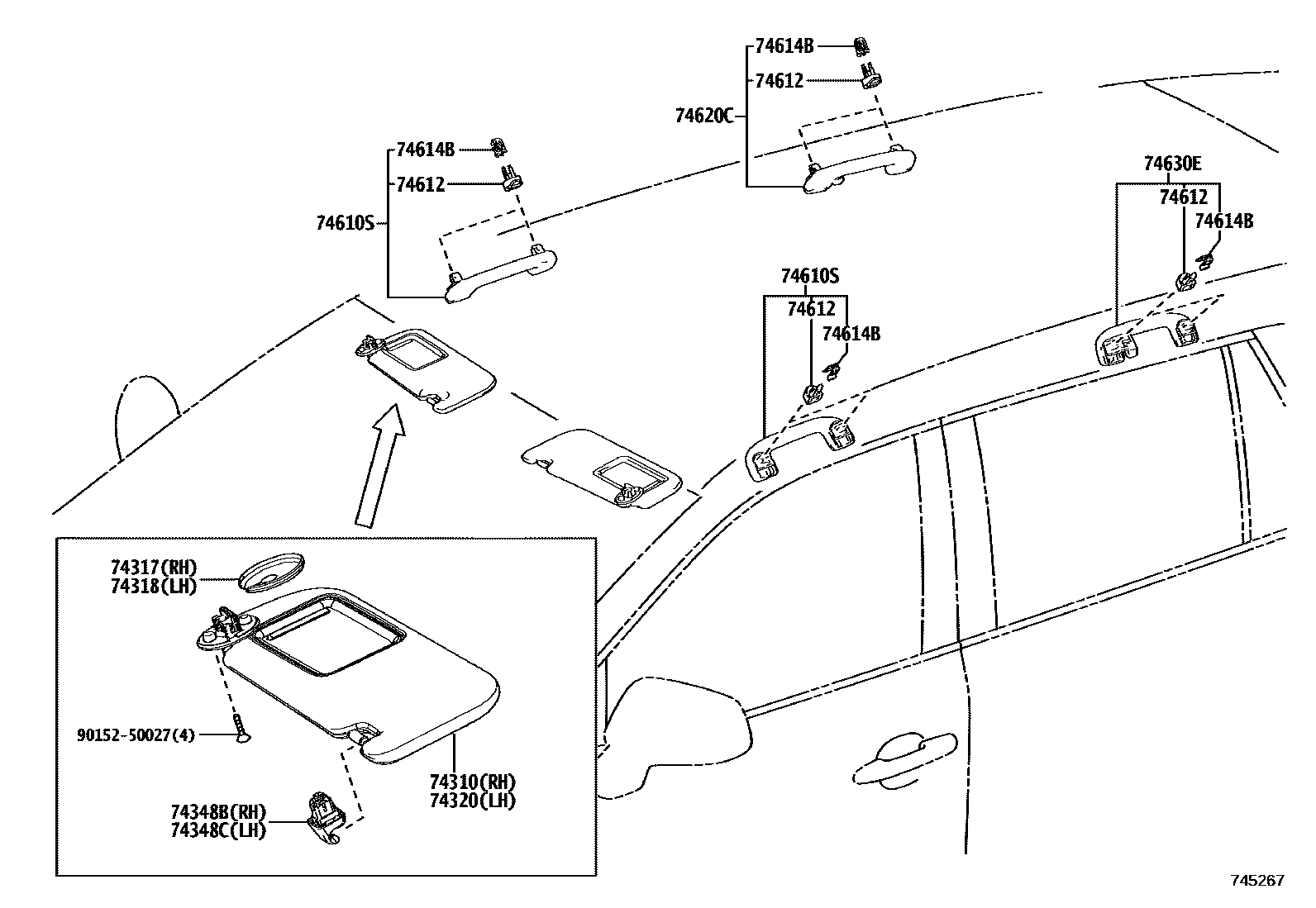

Toyota HARRIER — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-48500-B2iAXUH8#,MXUA8#..S202006-202210

LT.GRAY,TRIM2#

main74310-48500-C3iAXUH8#,MXUA8#..G,Z202006-202210

BLACK,TRIM2#,4#

74317COVER, VISOR BRACKET, RH

main74317-60020-B1iAXUH8#,MXUA8#..S202006-202210

LT.GRAY,TRIM2#

main74317-60020-C2iAXUH8#,MXUA8#..G,Z202006-202210

BLACK,TRIM2#,4#

74318COVER, VISOR BRACKET, LH

main74317-60020-B1iAXUH8#,MXUA85..S202210-202309

LT.GRAY,TRIM2#

main74317-60020-C2iAXUH8#,AXUP85,MXUA8#..G,Z202210

BLACK,TRIM2#,4#

74320VISOR ASSY, LH

main74320-48470-B2iAXUH8#,MXUA8#..S202006-202210

LT.GRAY,TRIM2#

main74320-48470-C3iAXUH8#,AXUP85,MXUA8#..G,Z202210

BLACK,TRIM2#,4#

74348BHOLDER, VISOR, RH

main74348-47010-B3iMXUA80..S202210

LT.GRAY,TRIM2#

main74348-47010-C0iAXUH8#,MXUA8#..G,Z202006-202210

BLACK,TRIM2#,4#

74348CHOLDER, VISOR, LH

main74348-47010-B3iAXUH8#,MXUA8#..S202006-202210

LT.GRAY,TRIM2#

main74348-47010-C0iAXUH8#,MXUA8#..G,Z202006-202210

BLACK,TRIM2#,4#

74610SGRIP ASSY, ASSIST

main74610-12140-B1×2iAXUH8#,MXUA8#..S202006-202210

LT.GRAY,TRIM2#

main74610-12140-C0×2iAXUH8#,AXUP85,MXUA8#..G,Z202210

BLACK,TRIM2#,4#

74612COVER, ASSIST GRIP

main74612-47070-B1×8iAXUH8#,MXUA8#..S202006-202210

LT.GRAY,TRIM2#

main74612-47070-C2×8iAXUH8#,MXUA8#..G,Z202006-202210

BLACK,TRIM2#,4#

74614BPLATE, ASSIST GRIP LOCK

main74614-12020×8iAXUH8#,MXUA8#202006-202210

74620CGRIP ASSY, ASSIST, REAR RH

main74610-12170-B1iAXUH8#,MXUA8#..S202006-202210

LT.GRAY,TRIM2#

main74610-12170-C0iAXUH8#,MXUA8#..G,Z202006-202210

BLACK,TRIM2#,4#

74630EGRIP ASSY, ASSIST, REAR LH

main74610-12180-B1iMXUA80..S202210

LT.GRAY,TRIM2#

main74610-12180-C0iAXUH8#,AXUP85,MXUA8#..G,Z202210

BLACK,TRIM2#,4#

9015250027

main90152-50027

12 parts on this diagram · 1 diagram in section
