Toyota HARRIER — ARMREST & VISOR
64323DCLAMP, ASSIST GRIP
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
74225CAP, DOOR ARMREST, REAR RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
74226CAP, DOOR ARMREST, REAR LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
74310VISOR ASSY, RH
IVORY,TRIM0#
IVORY,TRIM0#
MD.GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
LT.GRAY,TRIM2#
74317COVER, VISOR BRACKET, RH
IVORY,TRIM0#
BLUE GRAY,TRIM1#
MD.GRAY,TRIM1#
IVORY,TRIM0#
LI.GRAY,TRIM2#
74318COVER, VISOR BRACKET, LH
IVORY,TRIM0#
BLUE GRAY,TRIM1#
MD.GRAY,TRIM1#
IVORY,TRIM0#
LI.GRAY,TRIM2#
74320VISOR ASSY, LH
IVORY,TRIM0#
IVORY,TRIM0#
MD.GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
LT.GRAY,TRIM2#
74348HOLDER, VISOR
IVORY,TRIM0#
LT.GRAY,TRIM2#
BLUE GRAY,TRIM1#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
MD.GRAY,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLUE GRAY,TRIM1#
74617APLUG, ASSIST GRIP
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLUE GRAY,TRIM1#
GRAY,TRIM2#
74620CGRIP ASSY, ASSIST, REAR RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
74630EGRIP ASSY, ASSIST, REAR LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
74631CHOOK, COAT
IVORY,TRIM0#
LT.GRAY,TRIM2#
8121INTERIOR LAMP
9015150027
main90151-50027
9015960311
main90159-60311
9046804177
main90468-04177
9046805132
main90468-05132
9338116020
main93381-16020
9353045016
main93530-45016
9354014010
main93540-14010
9356755012
main93567-55012

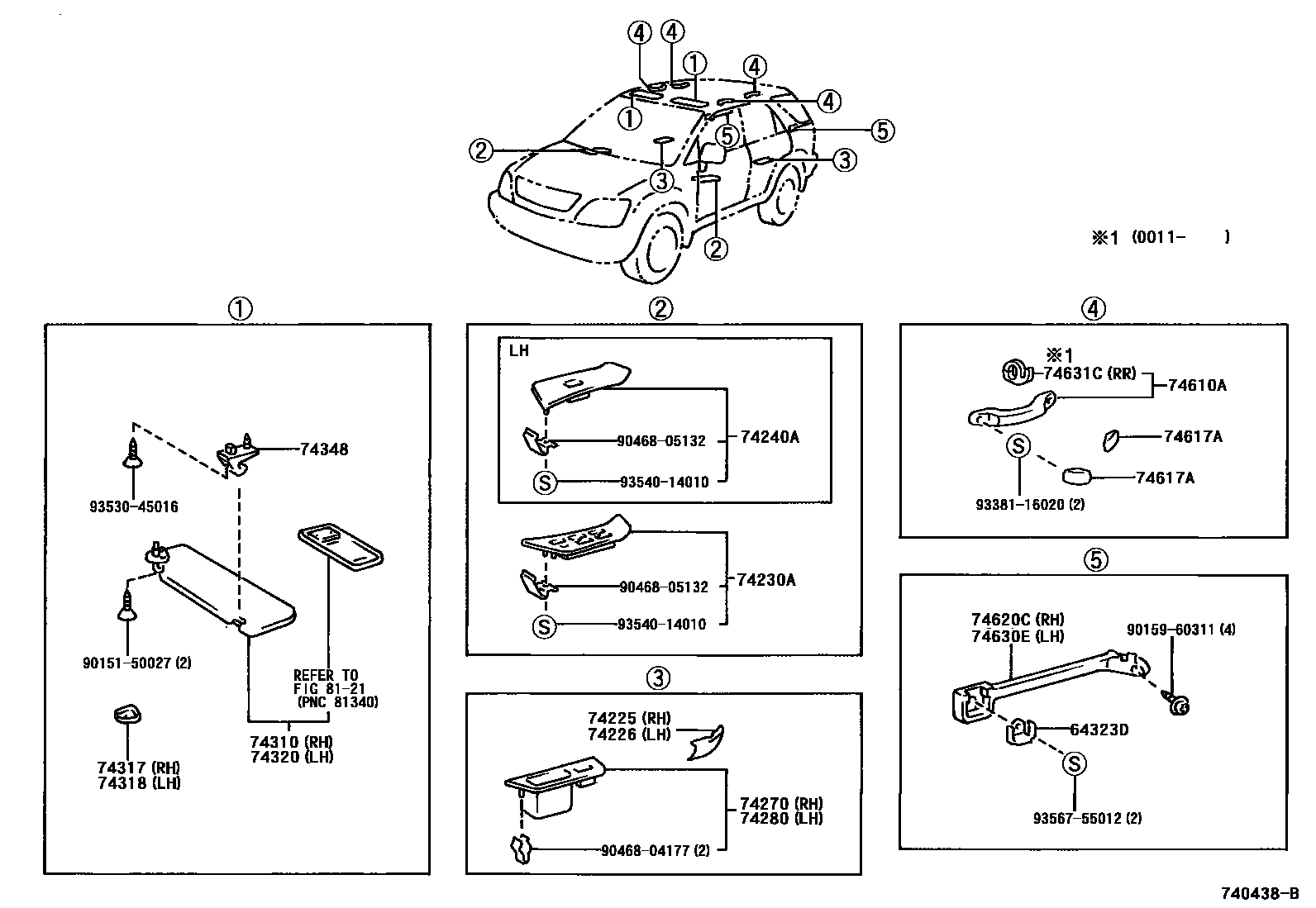

26 parts on this diagram · 1 diagram in section
ARMREST & VISOR for Toyota HARRIER
This section contains 26 genuine Toyota parts for the ARMREST & VISOR system of the Toyota HARRIER. Key components include: CLAMP, ASSIST GRIP, CAP, DOOR ARMREST, REAR RH, CAP, DOOR ARMREST, REAR LH, PANEL ASSY, FRONT DOOR ARMREST BASE, RH, PANEL ASSY, FRONT DOOR ARMREST BASE, LH.
