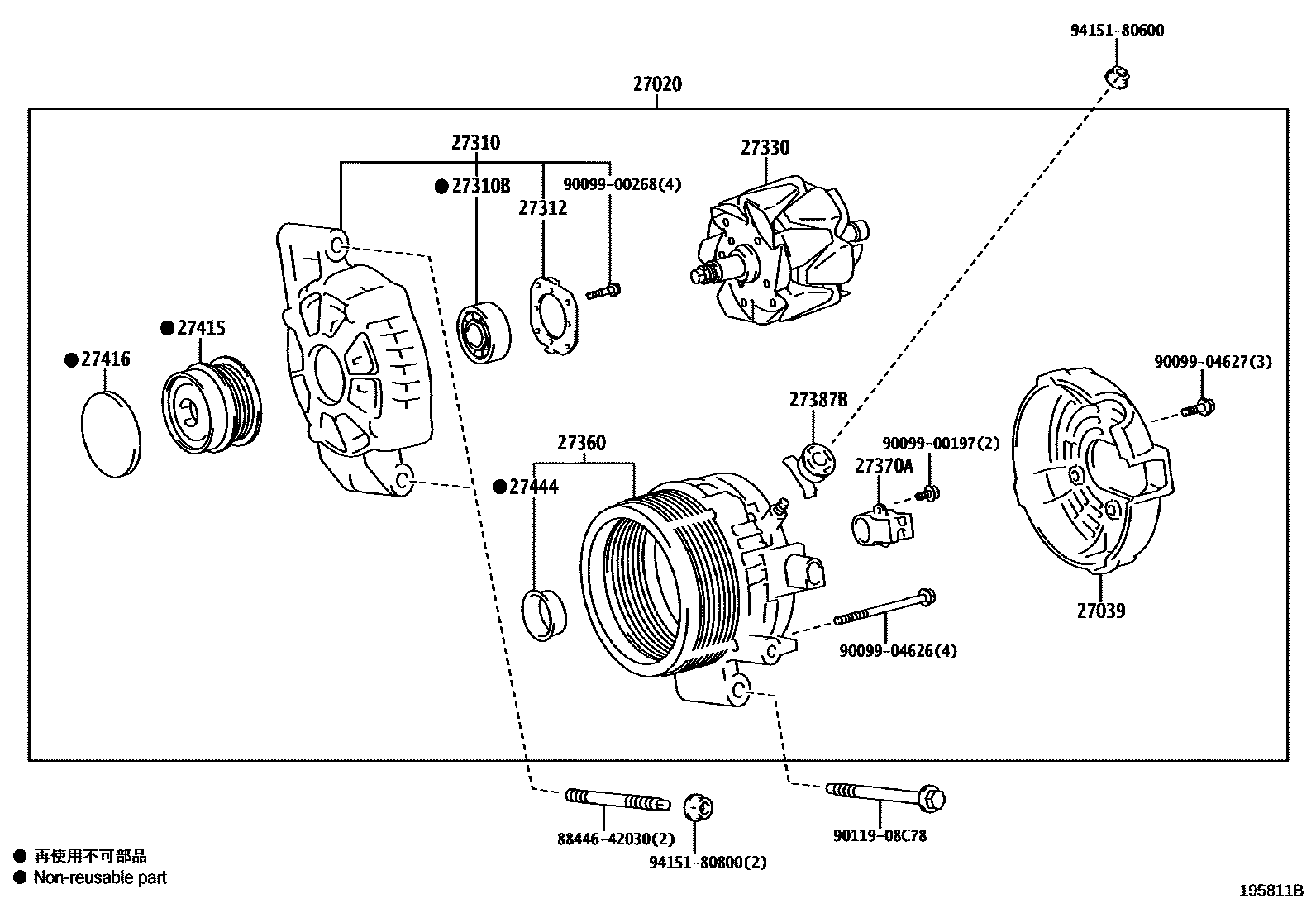

Toyota HARRIER — ALTERNATOR

27020ALTERNATOR ASSY

main27060-24040i202006-202210

main27060-24070i202303-202309

27039COVER, ALTERNATOR REAR END

main27039-37220i202006-202210

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24130i202006-202210

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i202006-202210

27312PLATE, RETAINER

main27312-72100i202006-202210

27330ROTOR ASSY, ALTERNATOR

main27330-37220i202006-202210

27360COIL ASSY, ALTERNATOR

main27360-24130i202006-202210

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i202006-202210

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i202006-202210

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-24010i202006-202210

27416CAP, ALTERNATOR PULLEY

main27416-47010i202006-202210

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i202006-202210

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota HARRIER

This section contains 22 genuine Toyota parts for the ALTERNATOR system of the Toyota HARRIER. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME), PLATE, RETAINER.
