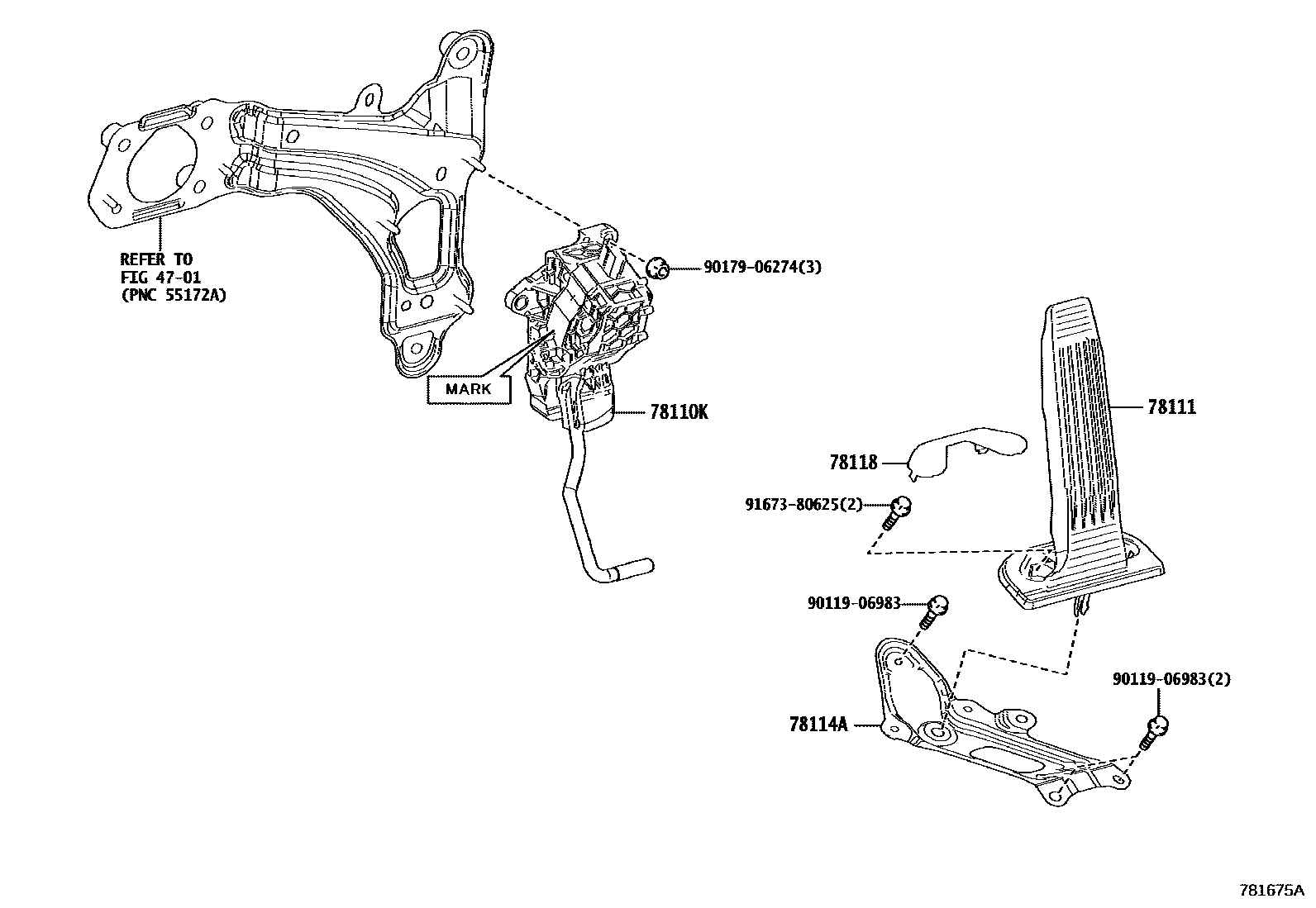

Toyota HARRIER — ACCELERATOR LINK

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-42060iAXUH8#,MXUA8#202006-202009

main78110-42061iAXUH8#,MXUA8#202010-202210

78111PEDAL, ACCELERATOR

main78101-33060iAXUH8#,MXUA8#202006-202111

main78101-33061iAXUH8#,MXUA8#202112-202210

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-42030iAXUH8#,MXUA8#202006-202210

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXUH8#,MXUA8#202006-202210

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 1 diagram in section
