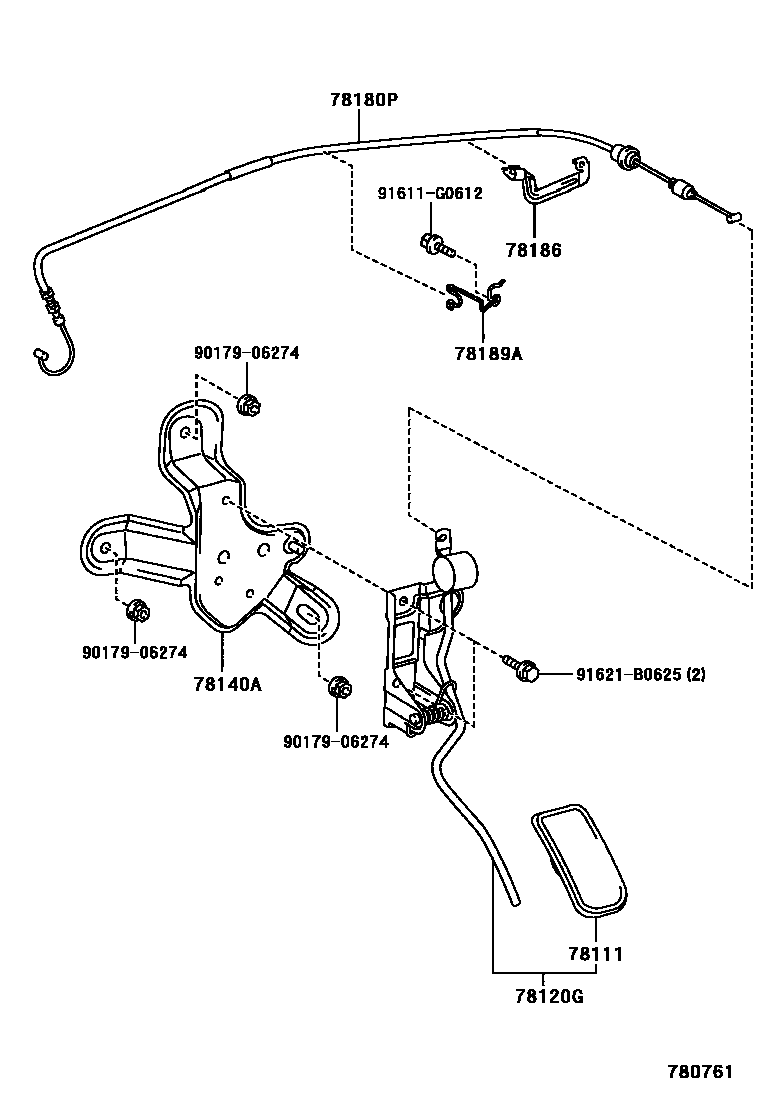

Toyota HARRIER — ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78111-33020iACU3#200601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-48070iMCU3#200302-200601

sub78120-48071

main78120-48080iACU3#200302-200601

78140ABRACKET, ACCELERATOR CONTROL ROD

main78140-48010iGSU3#200601-200812

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-48090iACU3#200302-200601

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-48020iACU3#200302-200601

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-48080iACU3#200302-200601

9017906274

main90179-06274

91611G0612

main91611-G0612

91621B0625

main91621-B0625

9 parts on this diagram · 2 diagrams in section
