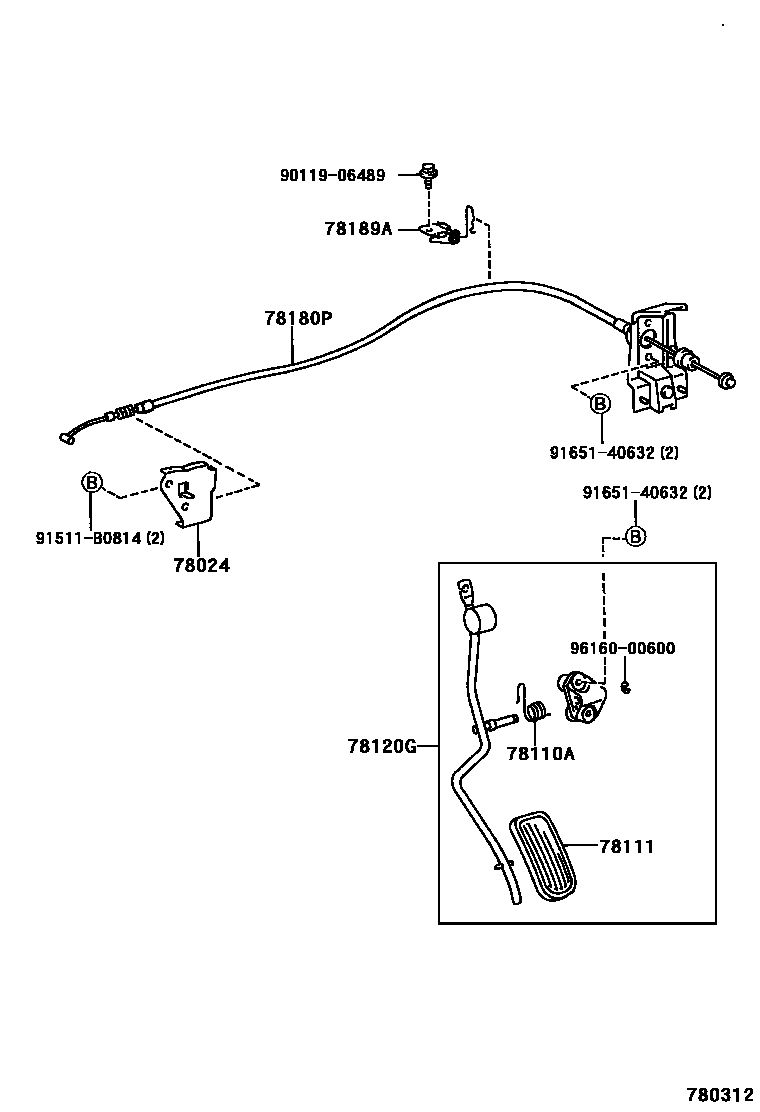

Toyota HARRIER — ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-44020iSXU1#199712-200011

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054iMCU1#,SXU1#199712-200011

main90959-03319iACU1#,MCU1#200011

78111PEDAL, ACCELERATOR

main78111-33020iACU1#,MCU1#,SXU1#199712

78120GROD ASSY, ACCELERATOR PEDAL

main78120-48010iMCU1#,SXU1#199712-200011

main78120-48060iACU1#,MCU1#200011

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-48010iMCU1#199712

main78180-48020iSXU1#199712-200011

main78180-48040iACU1#200011

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-48030iSXU1#199712-200011

main78189-48040iMCU1#199712

main78189-48070iACU1#200011

9011906489

main90119-06489

91511B0814

main91511-B0814

9165140632

main91651-40632

9616000600

main96160-00600

10 parts on this diagram · 3 diagrams in section
