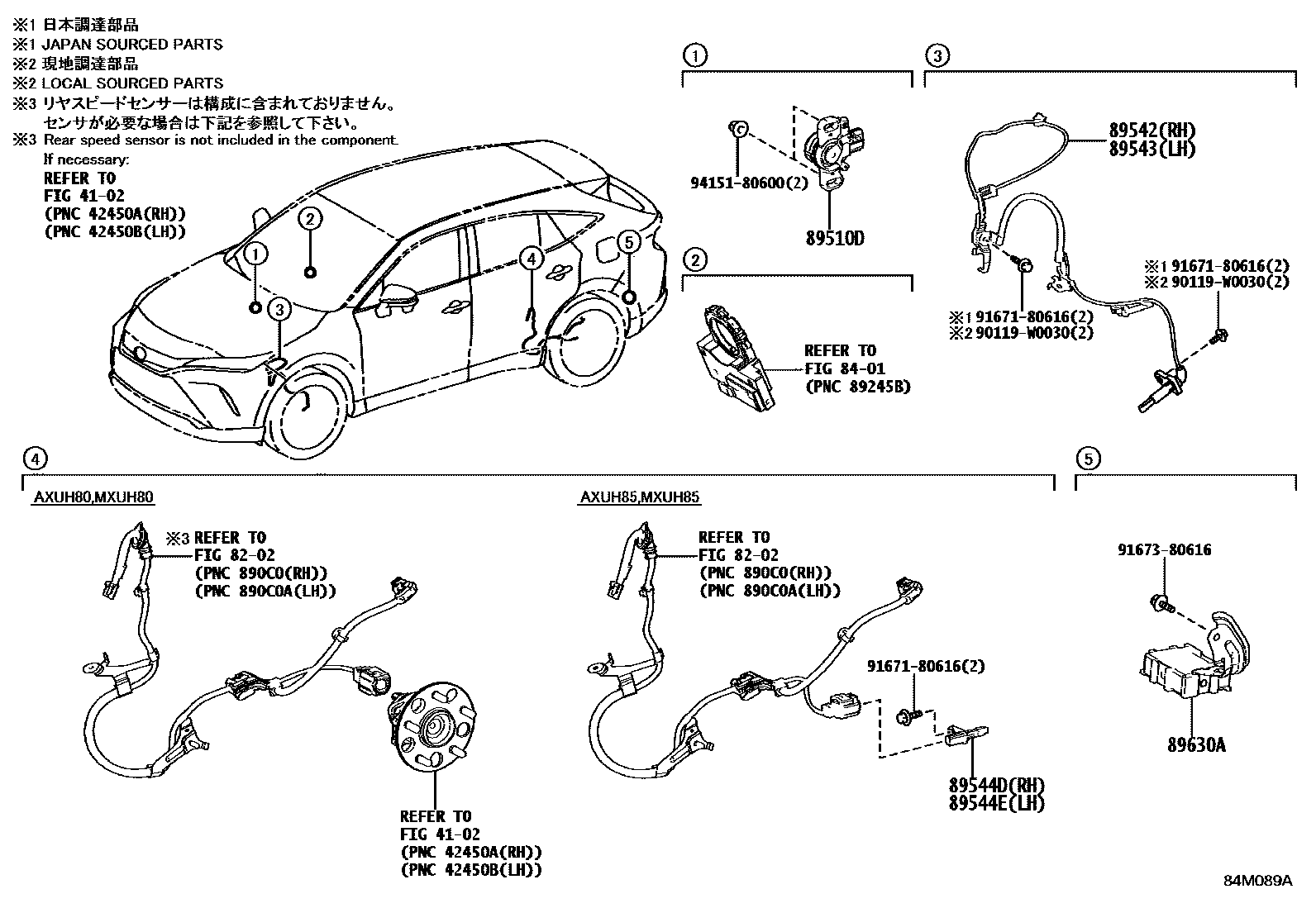

Toyota HARRIER — ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iAXUH8#,AXUP85..G,Z202310

main89510-47030iAXUH8#,AXUP85..G,Z202006-202310

89542SENSOR, SPEED, FRONT RH

main89542-42070iAXUH8#,MXUA8#202006-202309

89543SENSOR, SPEED, FRONT LH

main89543-42070iAXUH8#,MXUA8#202006-202309

89544DSENSOR, SKID CONTROL, REAR RH

main89544-06130iAXUH85,AXUP85,MXUA85..G,Z202410

main89544-0R020iAXUH85,MXUA85202006-202410

89544ESENSOR, SKID CONTROL, REAR LH

main89544-06130iAXUH85,AXUP85,MXUA85..G,Z202410

main89544-0R020iAXUH85,MXUA85..S202006-202410

89630ACOMPUTER ASSY, 4WD

main89630-48090iMXUA85202006-202309

90119W0030

main90119-W0030

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
