Toyota HARRIER — ABS & VSC
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
89183ASENSOR, YAWRATE
89187APROTECTOR, YAWRATE SENSOR
89441ASENSOR, DECELERATION
89516WIRE, SKID CONTROL SENSOR
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89544SENSOR, SKID CONTROL
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
9046712081
main90467-12081
9155180610
main91551-80610
91611B0610
main91611-B0610
91621J0612
main91621-J0612
91631J0612
main91631-J0612
91651B0618
main91651-B0618

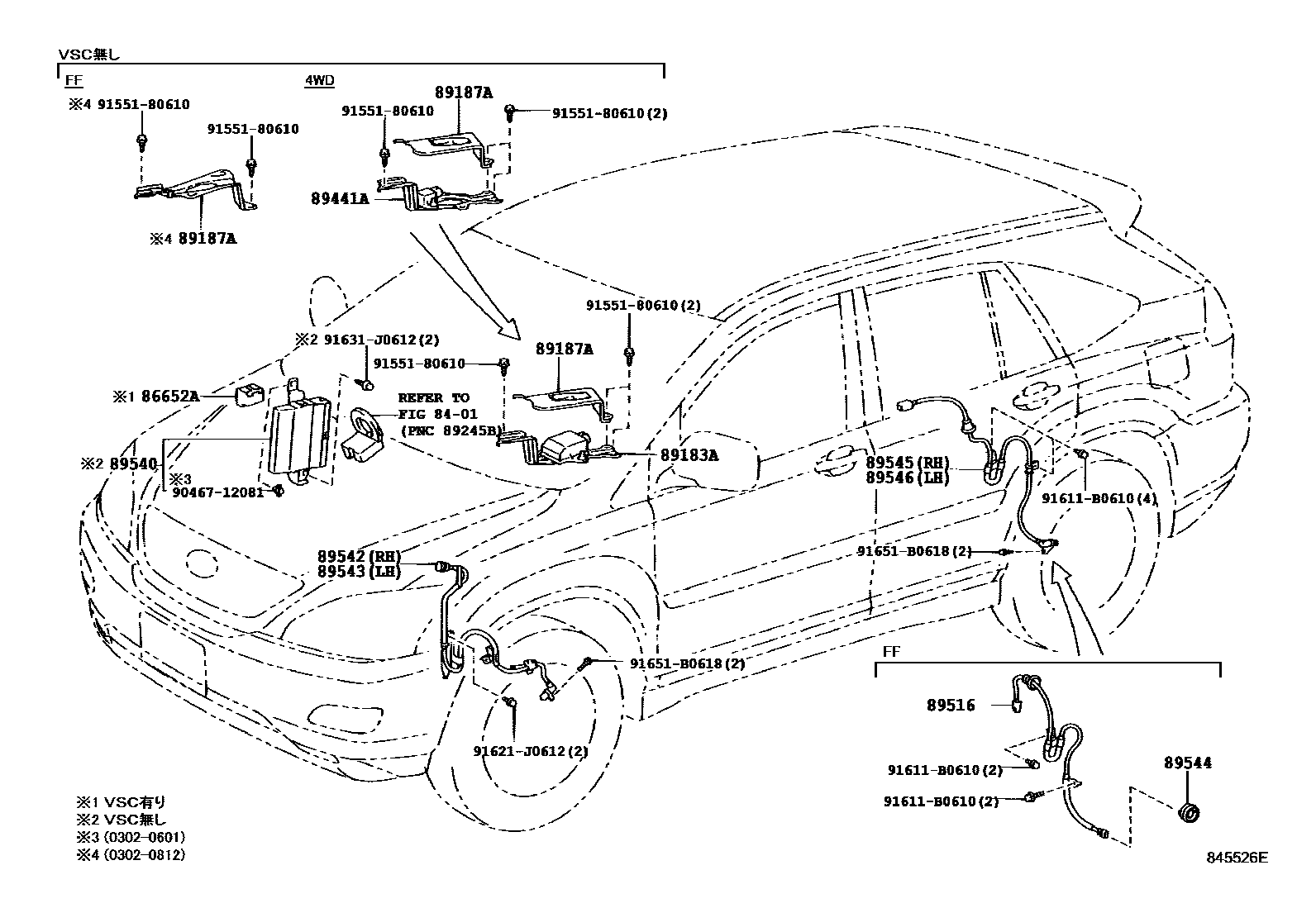

18 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota HARRIER
This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota HARRIER. Key components include: SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, SENSOR, YAWRATE, PROTECTOR, YAWRATE SENSOR, SENSOR, DECELERATION.
