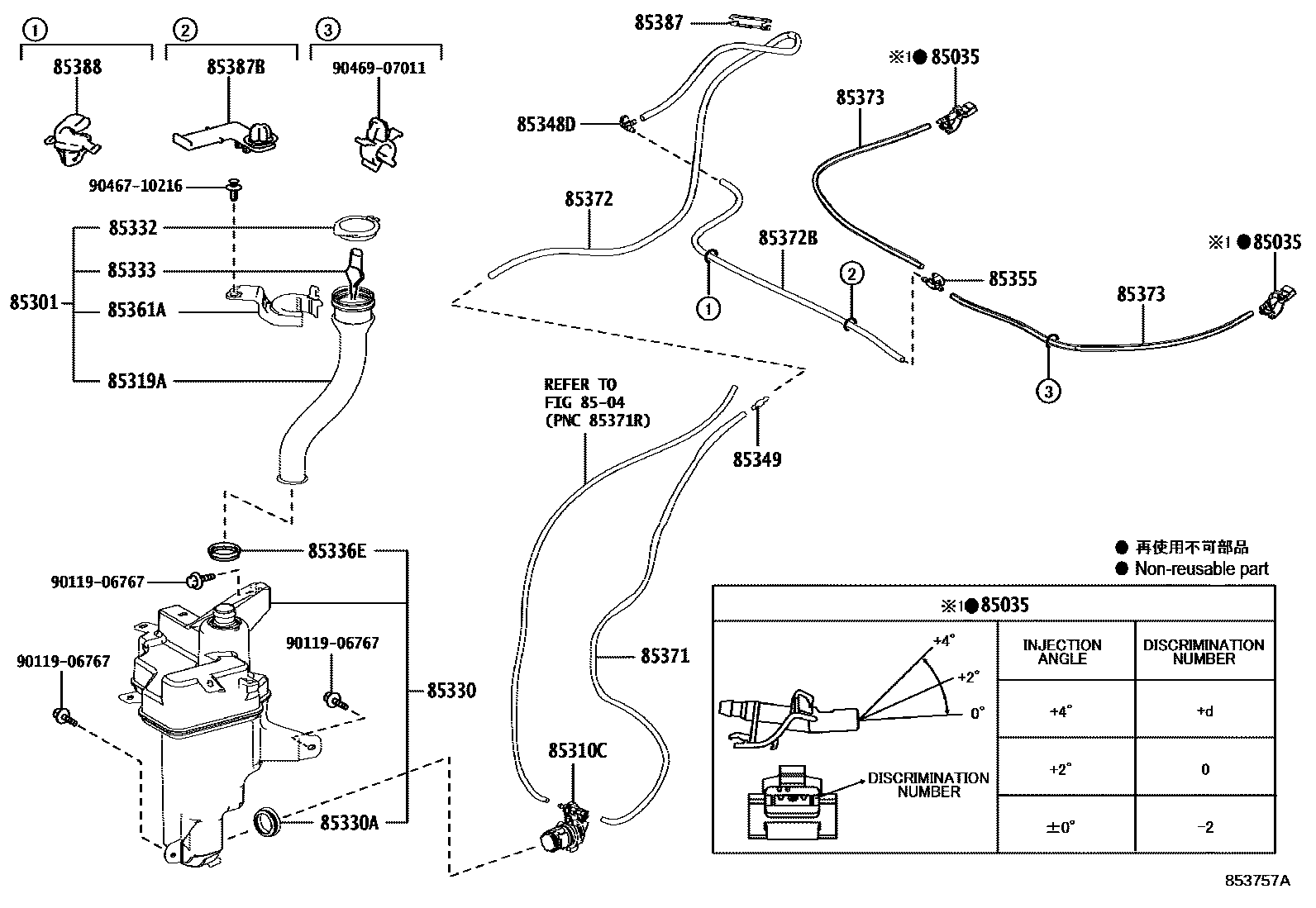

Toyota HARRIER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iASU60201705

ANGLE 0

main85381-12420×2iASU60201705

ANGLE +2

sub85381-0K060

main85381-12430×2iASU60201705

ANGLE +4

8504

85301INLET SUB-ASSY, WASHER

main85316-48230iASU60201705

85310CMOTOR & PUMP ASSY, WASHER

main85330-42010iASU60201705

85319AHOSE, INLET

main85319-42230iASU60201705

85330JAR ASSY, WINDSHIELD WASHER

main85315-42360iASU60201705

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iASU60201705

85332CAP, WINDSHIELD WASHER JAR

main85316-48250iASU60201705

85333FILTER, WINDSHIELD WASHER JAR

main85312-47020iASU60201705

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iASU60201705

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-60290iASU60201705

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iASU60201705

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iASU60201705

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42350iASU60201705

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iASU60201705

L=1450(*H,L=200)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iASU60201705

L=1450(*H,L=680)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33803iASU60201705

L=1550

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iASU60201705

L=1450(*H,L=460)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12840iASU60201705

85387BCLAMP, WASHER, NO.3

main85371-48020iASU60201705

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-12040iASU60201705

9011906767

main90119-06767

9046710216

main90467-10216

9046907011

main90469-07011

24 parts on this diagram · 1 diagram in section
