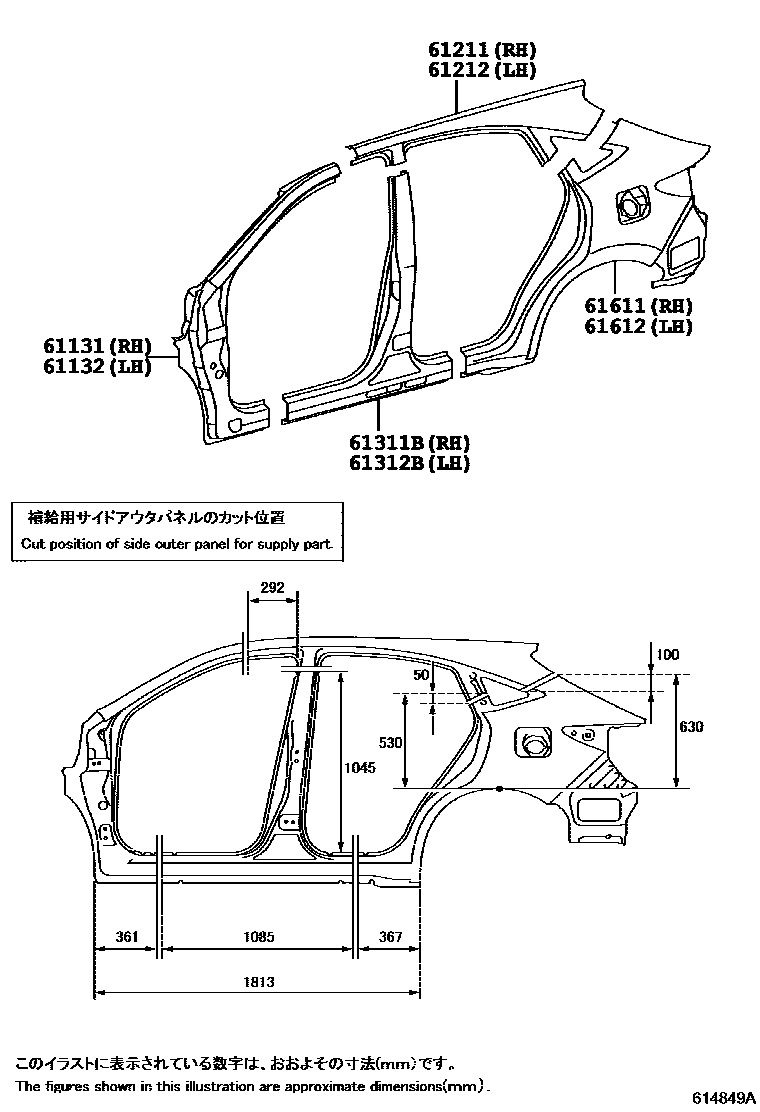

Toyota HARRIER — SIDE MEMBER

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61101-48020i201705

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61102-48020i201705

61211RAIL, ROOF SIDE, OUTER RH

main61203-48030i201705

61212RAIL, ROOF SIDE, OUTER LH

main61204-48030i201705

61311BPILLAR, CENTER BODY, OUTER RH

main61311-48060i201705

61312BPILLAR, CENTER BODY, OUTER LH

main61312-48060i201705

61611PANEL, QUARTER, RH

main61601-48030i201705

61612PANEL, QUARTER, LH

main61602-48030i201705

8 parts on this diagram · 3 diagrams in section

SIDE MEMBER for Toyota HARRIER

This section contains 66 genuine Toyota parts for the SIDE MEMBER system of the Toyota HARRIER. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR NO.2 RH, BRACKET, FRONT FENDER, REAR LH, BRACKET, FRONT FENDER, REAR NO.2 LH, PANEL, COWL TOP SIDE, RH.
