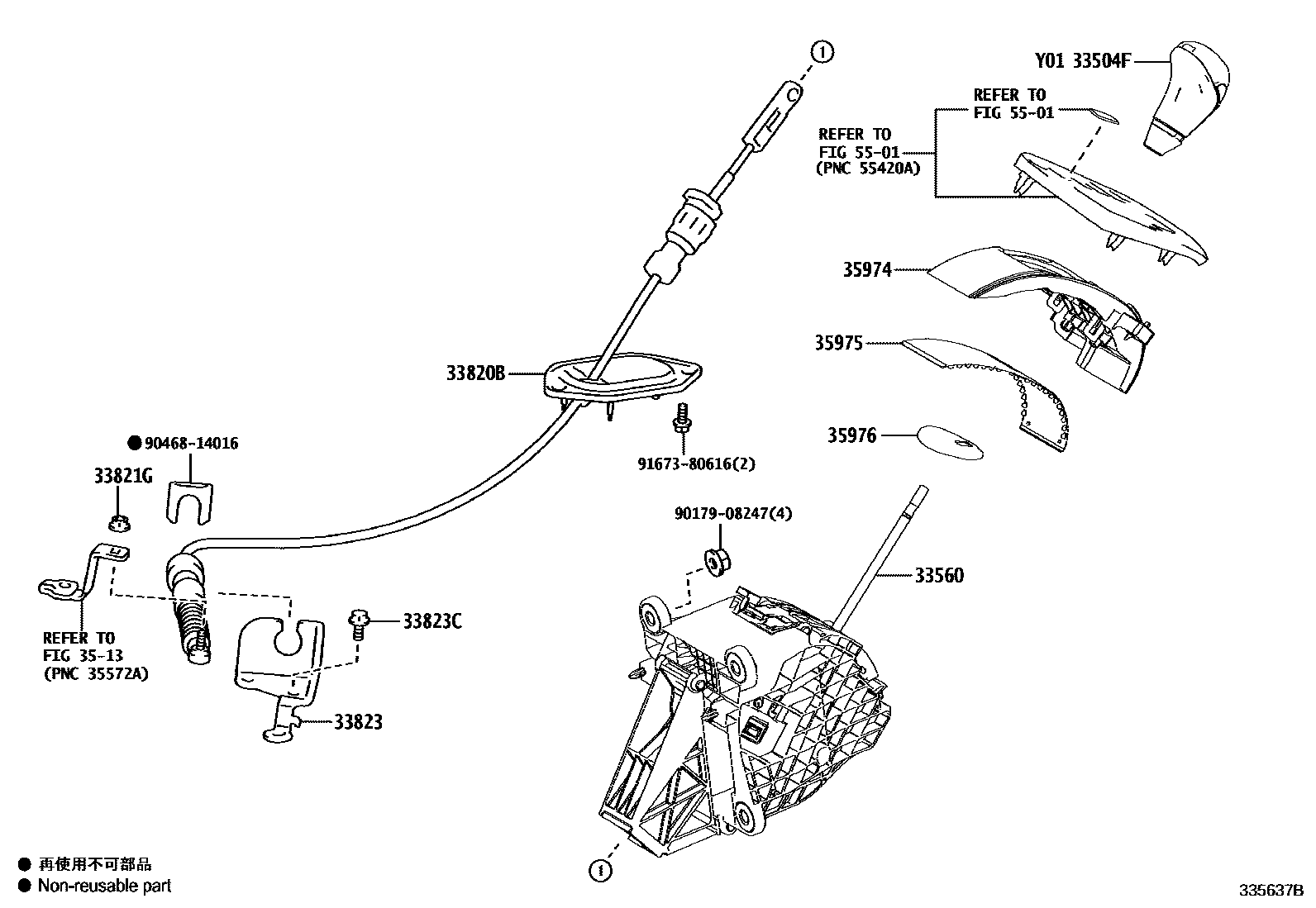

Toyota HARRIER — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
3513THROTTLE LINK & VALVE LEVER (ATM)
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
9017908247
main90179-08247
9046814016
main90468-14016
9167380616
main91673-80616
14 parts on this diagram · 1 diagram in section
SHIFT LEVER & RETAINER for Toyota HARRIER
This section contains 14 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota HARRIER. Key components include: KNOB SUB-ASSY, SHIFT LEVER, UNIT ASSY, SHIFT LOCK CONTROL, CABLE ASSY, TRANSMISSION CONTROL, NUT (FOR TRANSMISSION CONTROL CABLE), BRACKET, TRANSMISSION CONTROL CABLE, NO.1.
