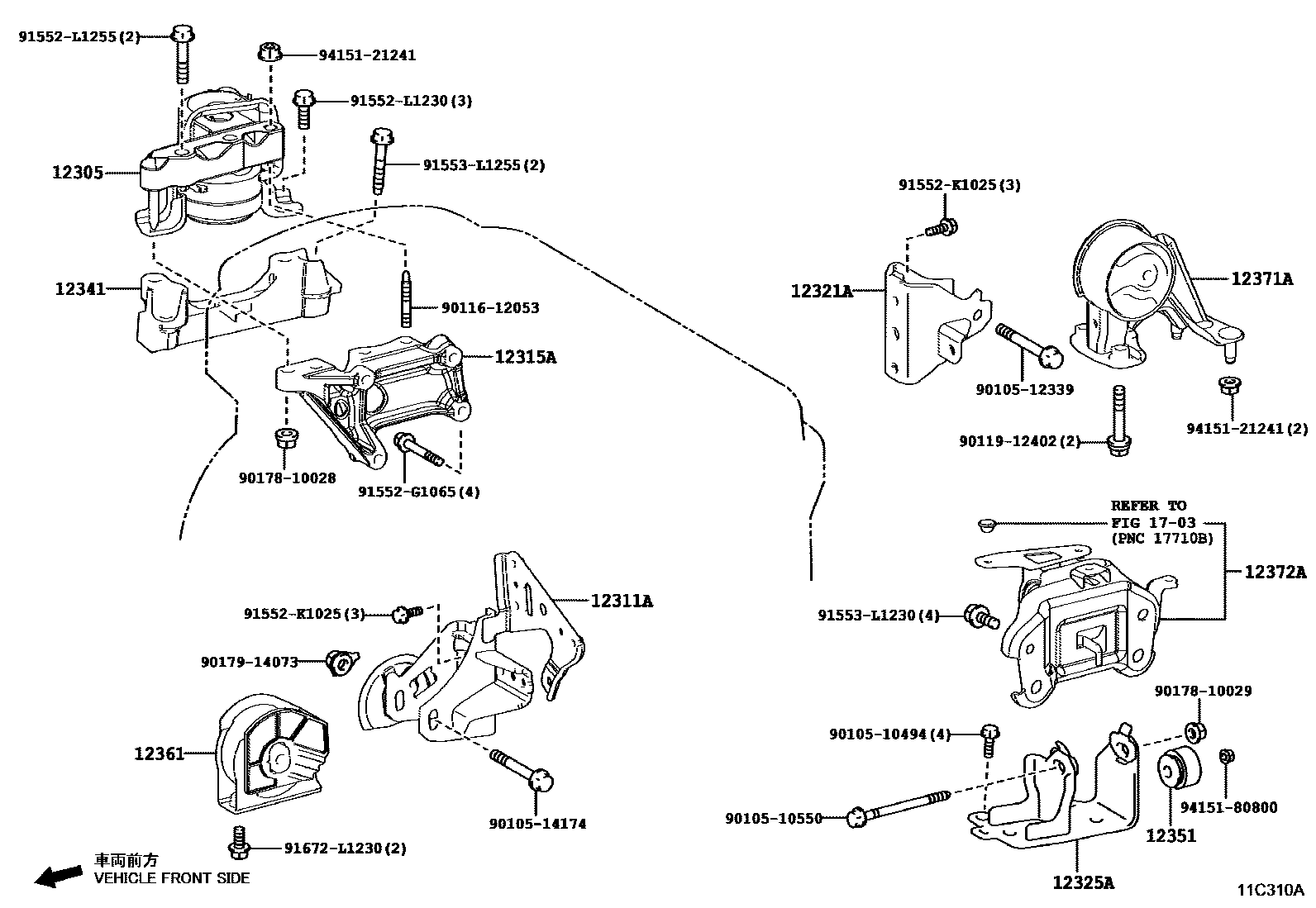

Toyota HARRIER — MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-36120i8ARFTS..ASU60201705

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-36120i8ARFTS..ASU60201705

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-36030i8ARFTS..ASU60201705

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-36180i8ARFTS..ASU60201705

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-36130i8ARFTS..ASU60201705

12341SPACER, ENGINE MOUNTING

main12341-26011i8ARFTS..ASU60201705

12351DAMPER, ENGINE MOUNTING

main12351-23010i8ARFTS..ASU60201705

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-36250i8ARFTS..ASU60201705

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-36240i8ARFTS..ASU60201705

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-36080i8ARFTS..ASU60201705

1703

9010510494

main90105-10494

9010510550

main90105-10550

9010512339

main90105-12339

9010514174

main90105-14174

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017914073

main90179-14073

91552G1065

main91552-G1065

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

9415180800

main94151-80800

29 parts on this diagram · 1 diagram in section
