Toyota HARRIER — MIRROR

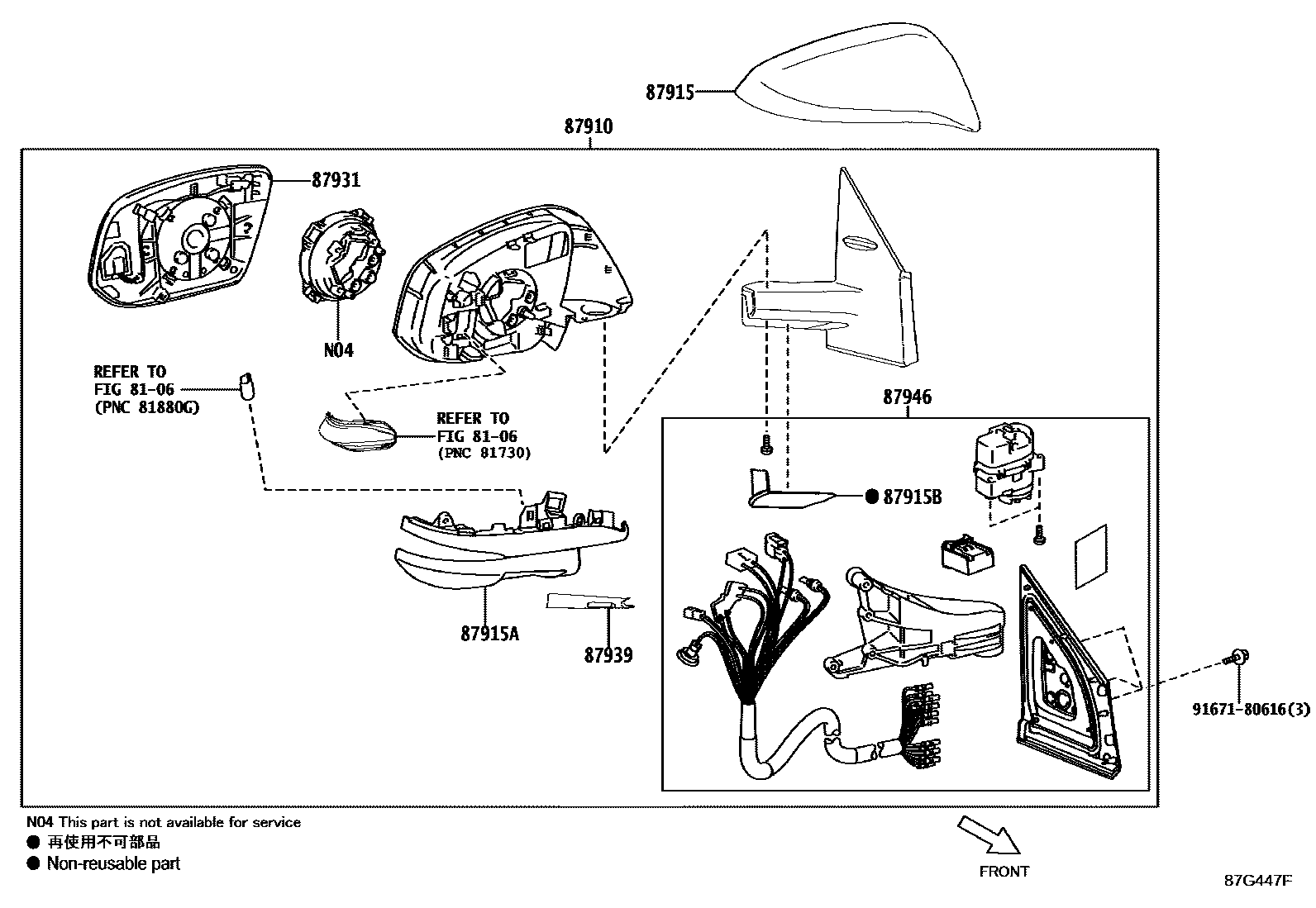

0001 1OUTER REAR VIEW MIRROR(RH) 0002 1OUTER REAR VIEW MIRROR(LH) 0003 1INNER REAR VIEW MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-48A00iASU60201705

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-48040-A0iASU60201705

WHITE PEARL CS.,070

main87915-48040-B0iASU60201705

SILVER ME.,1F7

main87915-48040-C0iASU60201705

BLACK,202

main87915-48040-C1iASU60201705

SPARKLING BLACK PEARL CS.,220

main87915-48040-D4iASU60201705

DK. RED M.M.,3Q3

main87915-48040-J3iASU60201705

DK.BLUE M.M.,8W7

87915ACOVER, OUTER MIRROR, RH

main8791B-48630iASU60201705

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-48030iASU60201705

87931OUTER MIRROR, RH

main87931-42C00iASU60201705-201803

main87931-48890iASU60201803

87939COVER, OUTER MIRROR HOLE, RH

main87939-48640iASU60201705

87946RETRACTOR, OUTER MIRROR, RH

main87946-48650iASU60201705

9167180616

main91671-80616

9 parts on this diagram · 3 diagrams in section
