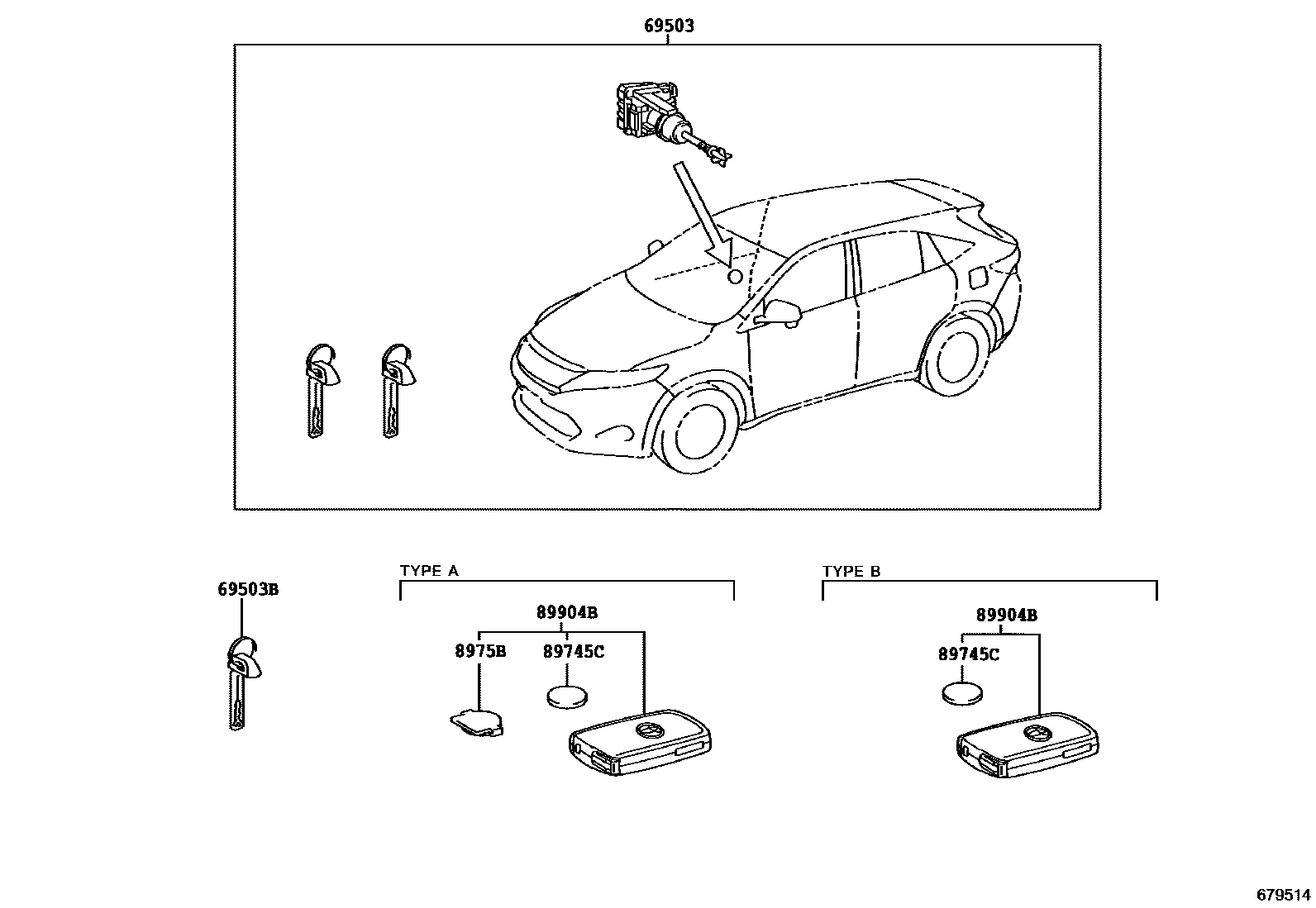

Toyota HARRIER — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-48600i201705

69503BKEY, CUT

main69515-33090×2i201705

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-45010i201705

CR2032,TYPE B:REFER ILLUST.

main89745-50020i201705

CR2032,TYPE A:REFER ILLUST.

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010×2i201705

TYPE A:REFER ILLUST.

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-60K00×2i201705

TYPE A:REFER ILLUST.

main89904-60K30×2i201705

TYPE B:REFER ILLUST.

5 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota HARRIER

This section contains 5 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota HARRIER. Key components include: CYLINDER SET, LOCK, KEY, CUT, BATTERY, TRANSMITTER, COVER, TRANSMITTER BATTERY HOUSING, TRANSMITTER SUB-ASSY, ELECTRICAL KEY.
