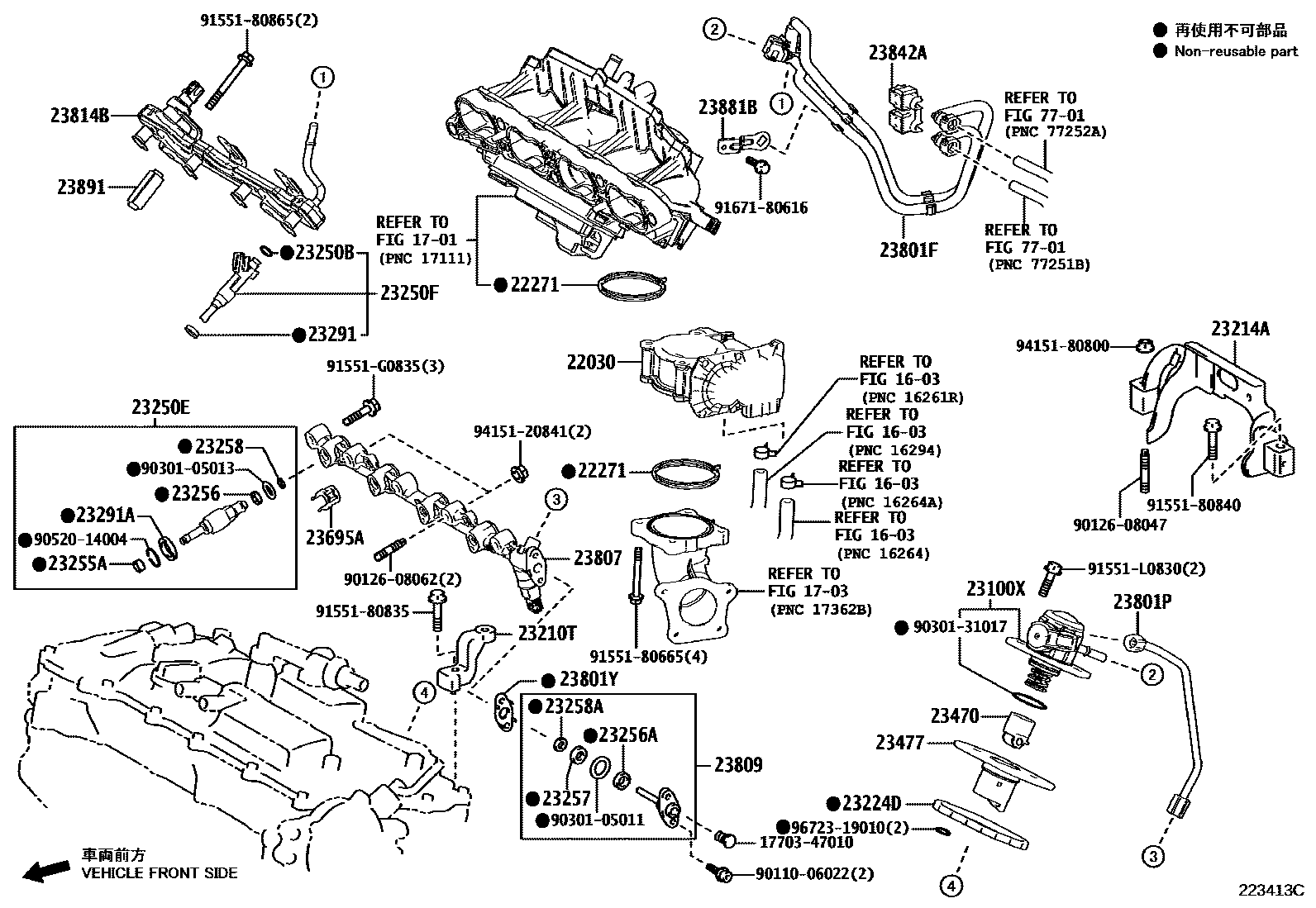

Toyota HARRIER — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
1703AIR CLEANER
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23210TBRACKET, FUEL PUMP
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23256ARING, FUEL PIPE, NO.1
ENGINE NO.=W******
23257RING, FUEL INJECTOR BACK-UP, NO.2
ENGINE NO.=W******
23258RING, FUEL INJECTOR BACK-UP, NO.3
23258ARING, FUEL PIPE, NO.3
ENGINE NO.=W******
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
ENGINE NO.=Z******
23801YGASKET
ENGINE NO.=W******
23807PIPE SUB-ASSY, FUEL DELIVERY
ENGINE NO.=Z******
23809SUPPORT SUB-ASSY, FUEL PIPE
ENGINE NO.=W******
23814BPIPE, FUEL DELIVERY
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
7701FUEL TANK & TUBE
1770347010CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
main17703-47010
9011006022
main90110-06022
9012608047
main90126-08047
9012608062
main90126-08062
9030105011
main90301-05011
9030105013
main90301-05013
9030131017
main90301-31017
9052014004
main90520-14004
9155180665
main91551-80665
9155180835
main91551-80835
9155180840
main91551-80840
9155180865
main91551-80865
91551G0835
main91551-G0835
91551L0830
main91551-L0830
9167180616
main91671-80616
9415120841
main94151-20841
9415180800
main94151-80800
9672319010
main96723-19010
51 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota HARRIER
This section contains 51 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota HARRIER. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, AIR CLEANER, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY.
