Toyota HARRIER — FRONT DOOR WINDOW REGULATOR & HINGE

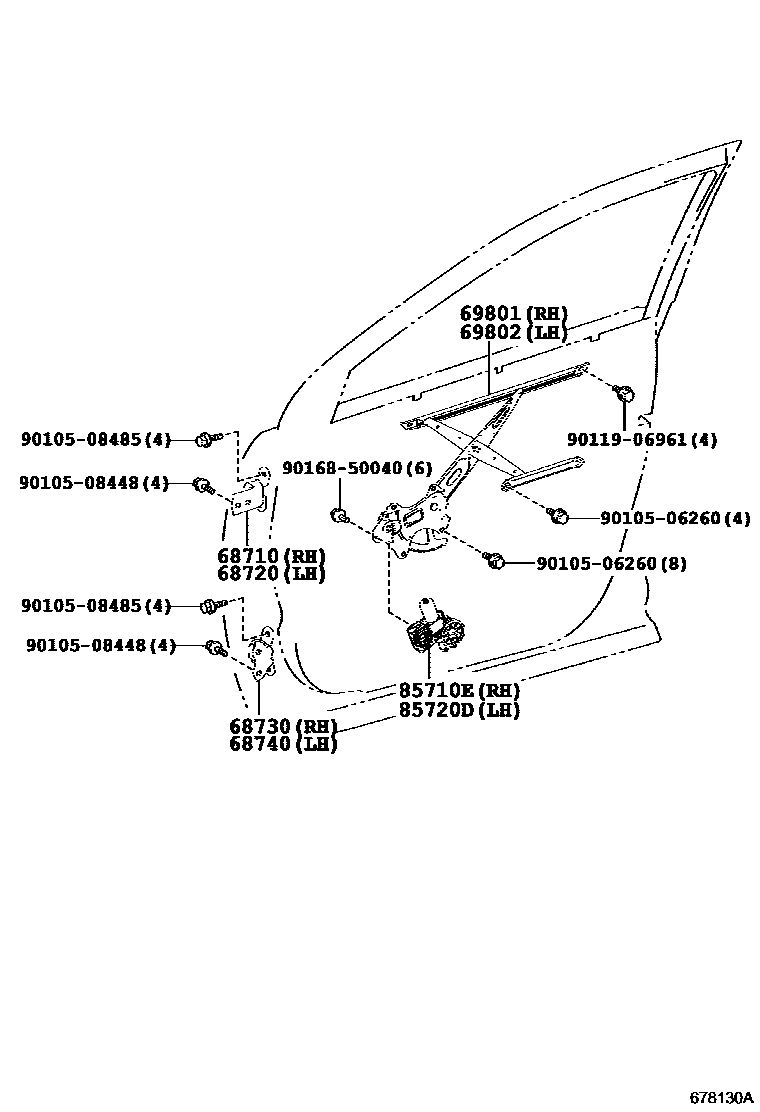

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i201705

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i201705

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i201705

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i201705

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30280i201705

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30280i201705

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-48100i201705

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-48110i201705

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota HARRIER

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota HARRIER. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
