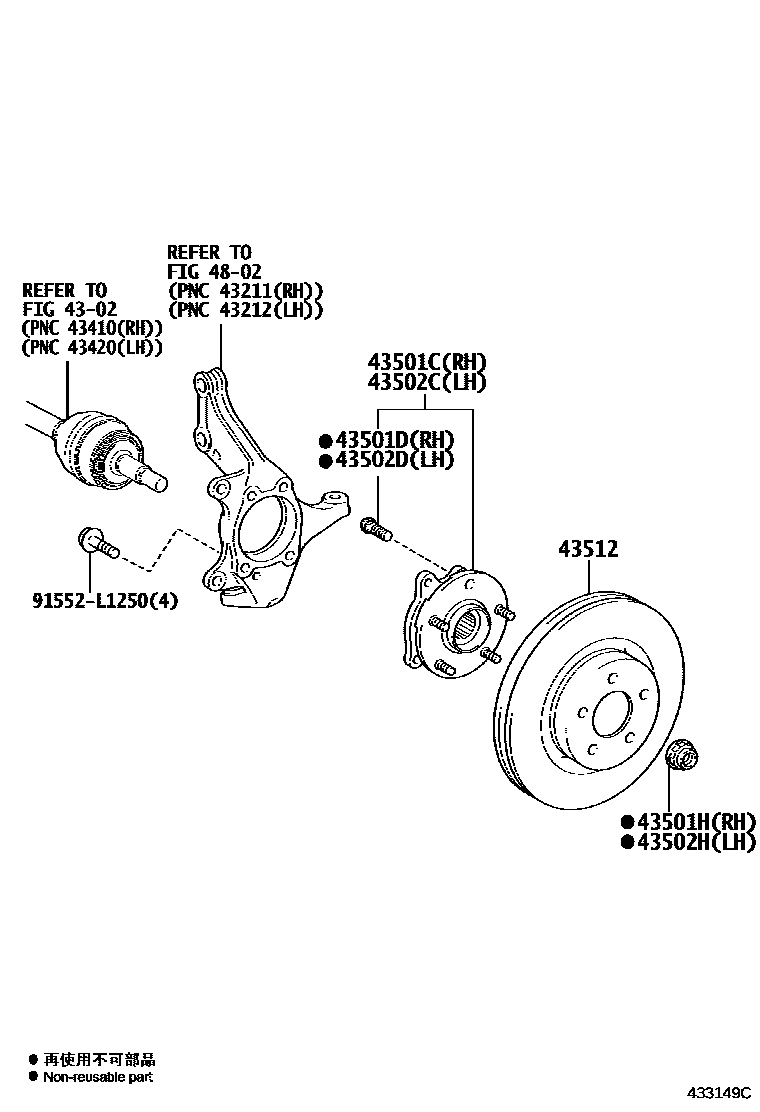

Toyota HARRIER — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42020iASU60201705

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iASU60201705

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASU60201705

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42020iASU60201705

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iASU60201705

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iASU60201705

43512DISC, FRONT

main43512-48110×2iASU60201705

4802

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section
