Toyota HARRIER — FRONT AXLE HUB

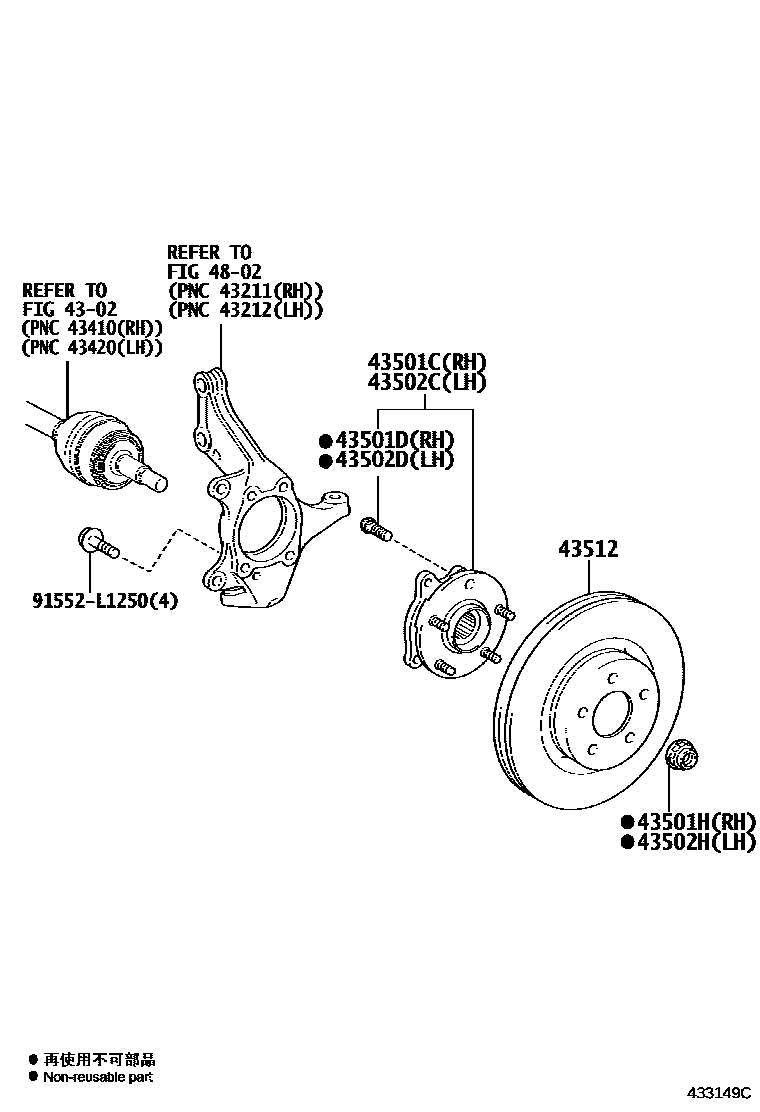

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42020i201705

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201705

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201705

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42020i201705

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201705

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201705

43512DISC, FRONT

main43512-48110×2i201705

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota HARRIER

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota HARRIER. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
