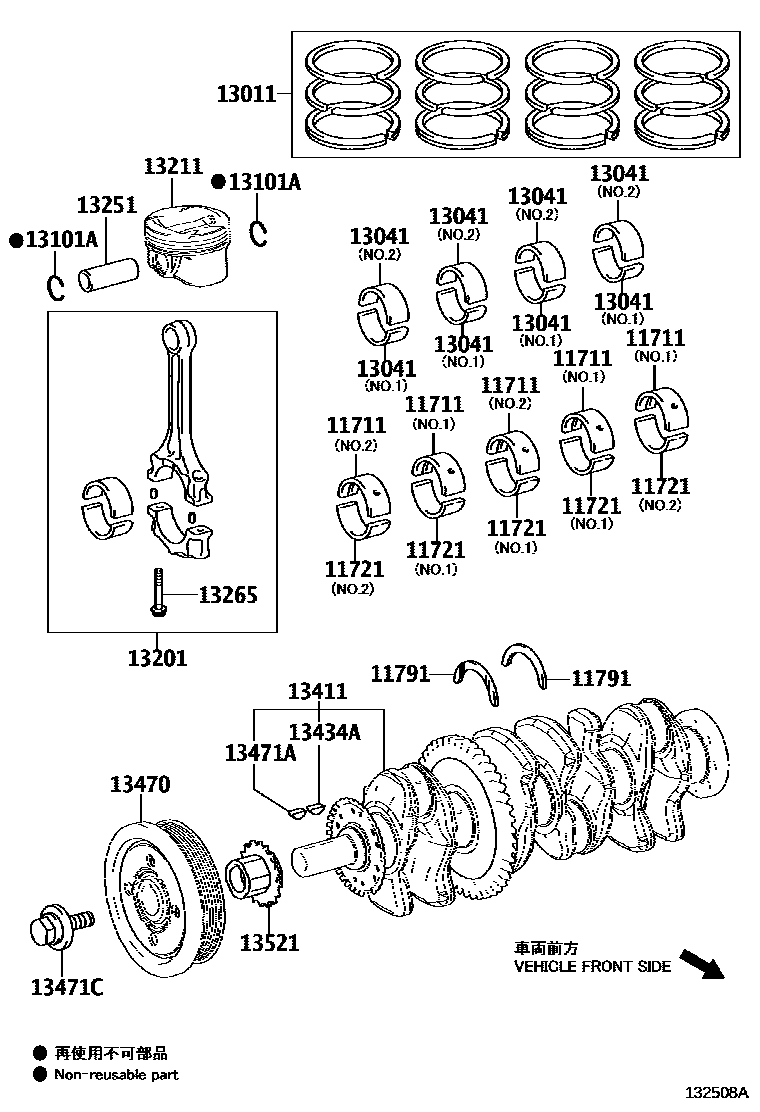

Toyota HARRIER — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13211PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13470PULLEY ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
16 parts on this diagram · 1 diagram in section
CRANKSHAFT & PISTON for Toyota HARRIER
This section contains 16 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota HARRIER. Key components include: BEARING, CRANKSHAFT, BEARING, CRANKSHAFT, NO.2, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
