Toyota HARRIER — BATTERY & BATTERY CABLE

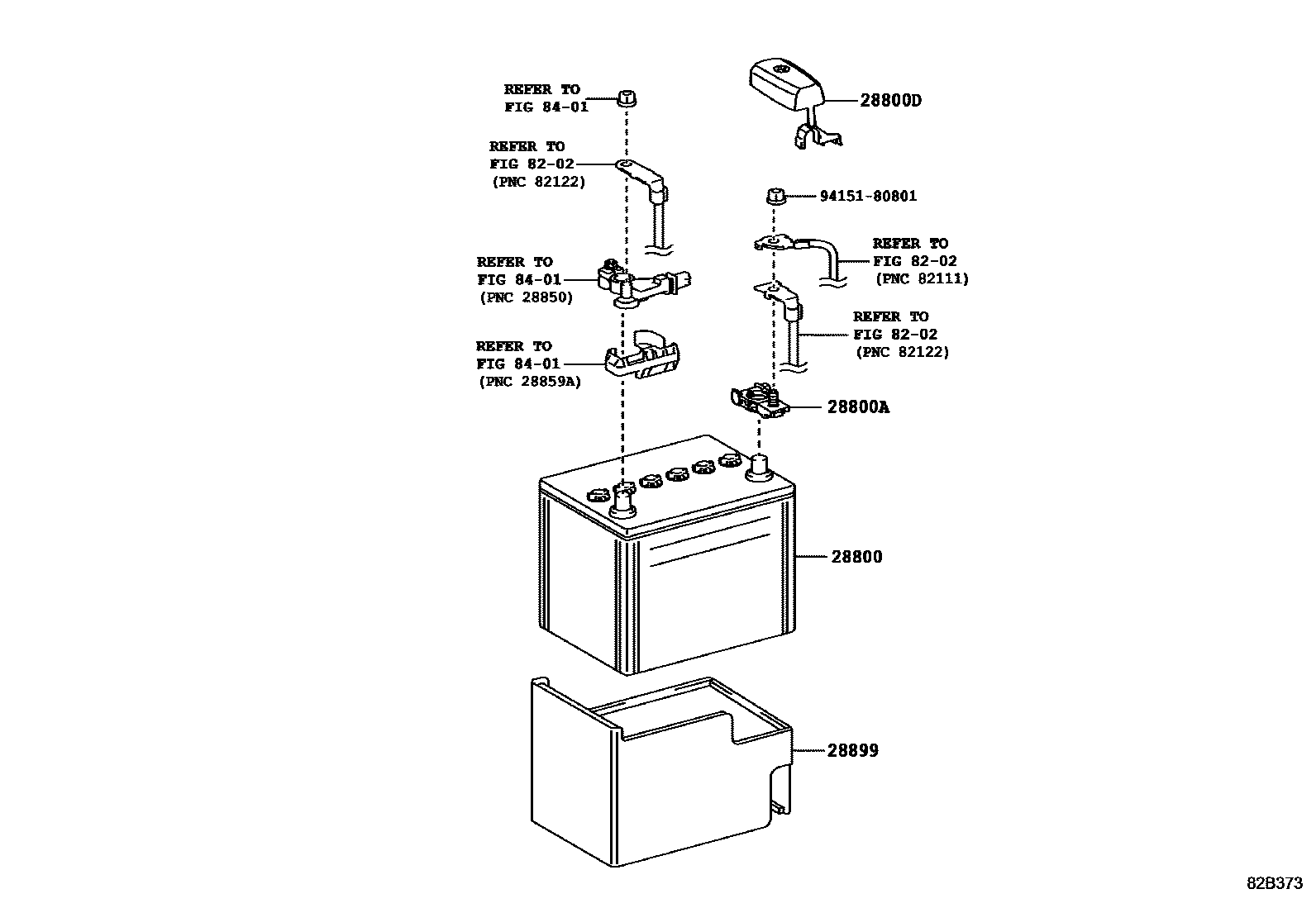

Parts diagram

28800BATTERY

main28800-36141i201705

S-95

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i201705

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i201705

28899INSULATOR, BATTERY

main28899-36060i201705

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota HARRIER

This section contains 7 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota HARRIER. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), INSULATOR, BATTERY, WIRING & CLAMP.
