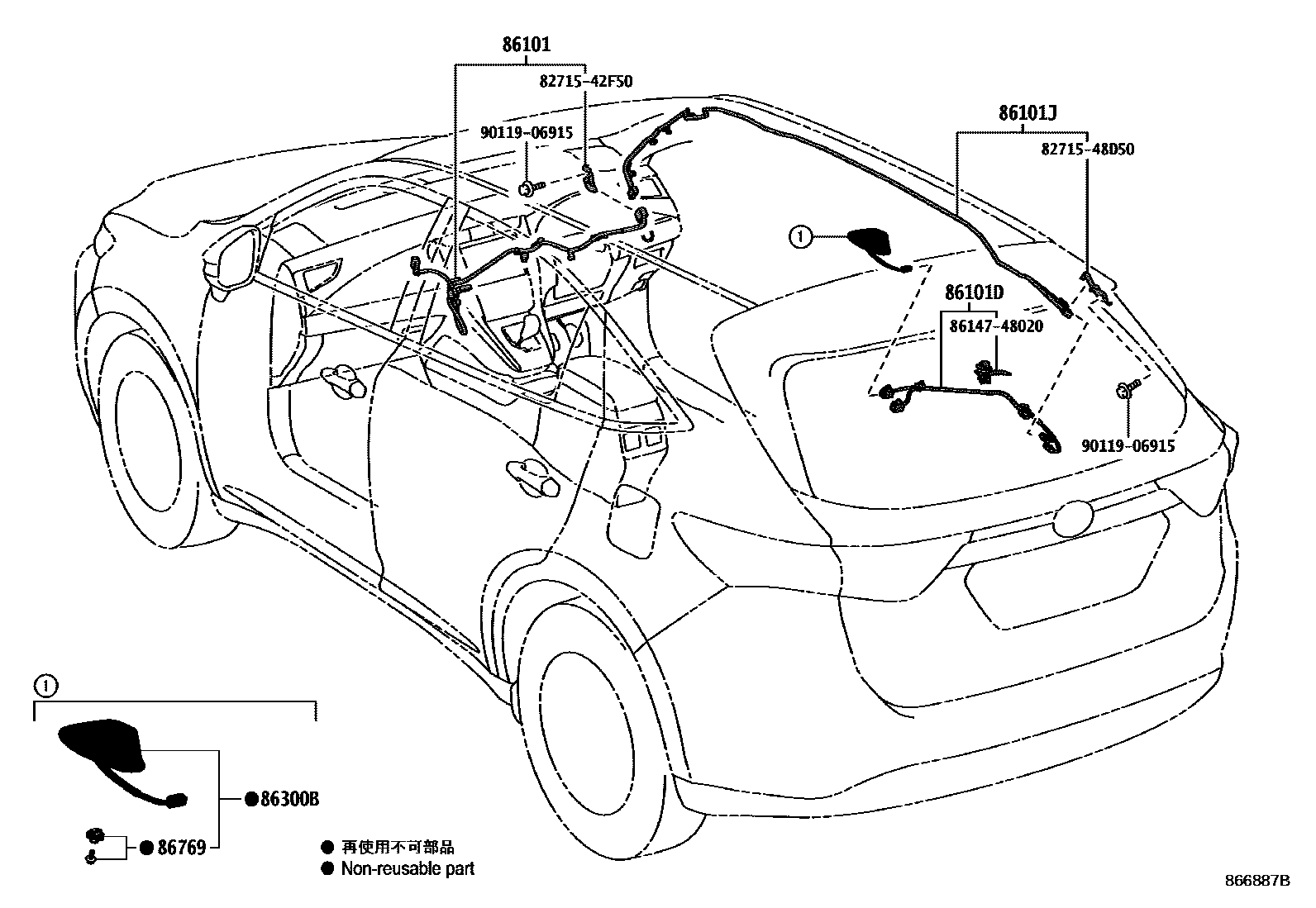

Toyota HARRIER — ANTENNA
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86300BANTENNA ASSY, AMPLIFIER, NO.1
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
DK.BLUE M.M.,8W7
86769HOUSING, ROOF ANTENNA
8271542F50BRACKET,WIRING HARNESS CLAMP
main82715-42F50
8271548D50BRACKET,WIRING HARNESS CLAMP
main82715-48D50
8614748020
main86147-48020
9011906915
main90119-06915
9 parts on this diagram · 1 diagram in section
ANTENNA for Toyota HARRIER
This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota HARRIER. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1, HOUSING, ROOF ANTENNA.
